SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Acer Incorporated

Acer Altos R520 (Intel Xeon E5310)

CPU2006 license: 97 Test date: Aug-2007
Test sponsor: Acer Incorporated Hardware Availability: Nov-2006
Tested by: Acer Incorporated Software Availability: Jun-2007

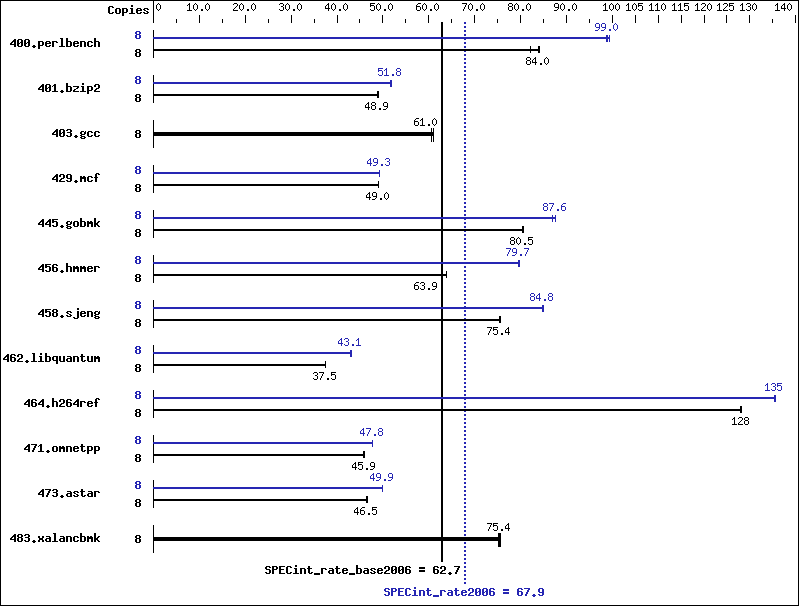

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5310
CPU Characteristics: 1066MHz system bus
CPU MHz: 1600
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1, 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2048MB ECC FB-DIMM DDR2-667 CL5-5-5)
Disk Subsystem: 1 x 73GB 10000RPM SAS HDD
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 EM64T kernel
Compiler: Intel C++ Compiler for Linux32 and Linux64
version 10.0
Build 20070426 Package ID: l_cc_p_10.0.023
Auto Parallel: No
File System: ReiserFS
System State: Multi-user, level 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.1

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 952 82.1 930 84.1 931 84.0 8 789 99.0 791 98.8 786 99.4
401.bzip2 8 1574 49.1 1578 48.9 1581 48.8 8 1490 51.8 1493 51.7 1492 51.8
403.gcc 8 1054 61.1 1056 61.0 1062 60.7 8 1054 61.1 1056 61.0 1062 60.7
429.mcf 8 1486 49.1 1488 49.0 1488 49.0 8 1478 49.4 1480 49.3 1482 49.2
445.gobmk 8 1041 80.6 1042 80.5 1043 80.5 8 957 87.7 958 87.6 965 86.9
456.hmmer 8 1167 64.0 1171 63.8 1168 63.9 8 939 79.5 937 79.7 937 79.7
458.sjeng 8 1281 75.6 1284 75.4 1283 75.4 8 1141 84.8 1143 84.7 1140 84.9
462.libquantum 8 4418 37.5 4420 37.5 4419 37.5 8 3850 43.1 3846 43.1 3851 43.0
464.h264ref 8 1381 128   1383 128   1381 128   8 1307 135   1309 135   1307 135
471.omnetpp 8 1090 45.9 1089 45.9 1090 45.9 8 1047 47.8 1047 47.7 1047 47.8
473.astar 8 1208 46.5 1207 46.5 1205 46.6 8 1127 49.8 1124 50.0 1125 49.9
483.xalancbmk 8 733 75.3 730 75.6 732 75.4 8 733 75.3 730 75.6 732 75.4

General Notes


 This result was measured on the Acer Altos R520
 The Altos R720 and Altos R520 are electronically equivalent.

 BIOS Settings
   Snoop Filter set to OFF
    Snoop Filter preserves cache coherency while
    minimizing snoops to remote nodes.

   Adjacent Cache Line Prefetch set to OFF
    Prefetch data in order to shorten execution cycles
    and maximize data processing efficiency.

   Optimization for high-frequency FSB applications set to ON

 taskset was used to bind copies to cores

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/spec/cpu2006.1.0/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.0.023/bin/icc   -L/opt/intel/cce/10.0.023/lib   -I/opt/intel/cce/10.0.023/include
456.hmmer:  /opt/intel/cce/10.0.023/bin/icc   -L/opt/intel/cce/10.0.023/lib   -I/opt/intel/cce/10.0.023/include

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast
403.gcc:  basepeak = yes
429.mcf:  -fast   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O2   -ipo   -no-prec_div   -ansi-alias
456.hmmer:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4
462.libquantum:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always
464.h264ref:  Same as 456.hmmer

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec_div   -ansi-alias   -Wl,-z,muldefs   -L/spec/cpu2006.1.0/lib -lsmartheap
473.astar:  Same as 471.omnetpp
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.16.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090714.16.xml.
