SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

Dell Precision 690 (Intel 5160, 3.00 GHz)

CPU2006 license: 55 Test date: Aug-2007
Test sponsor: Dell Inc. Hardware Availability: May-2006
Tested by: Dell Inc. Software Availability: Jun-2007

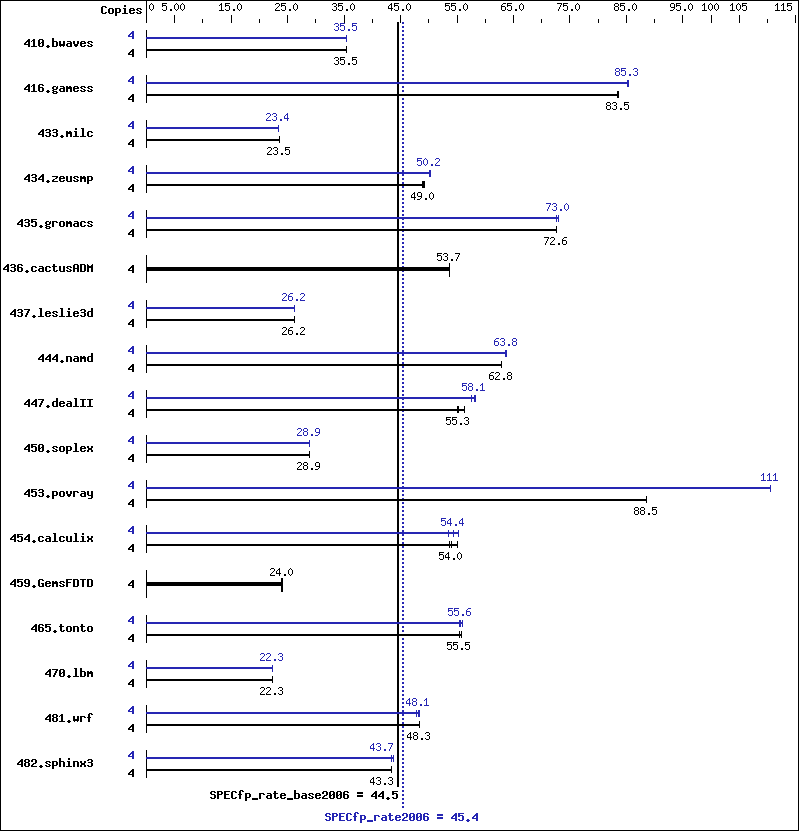

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5160
CPU Characteristics: 1333 MHz Bus Speed
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 8 GB (8x1 GB 667 MHz ECC CL5 FB-DIMM)
Disk Subsystem: 1 x 73GB SAS 10K RPM
Other Hardware: None
Software
Operating System: Windows XP Professional x64 Edition SP2
Compiler: Intel C++ Compiler for Intel 64, Version 10.0
Build 20070426 Package ID: W_CC_P_10.0.025
Intel Visual Fortran Compiler for Intel 64,
Version 10.0
Build 20070426 Package ID: W_FC_P_10.0.025
Microsoft Visual Studio 2005 SP1
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap Library 8.0 for x64

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 1531 35.5 1531 35.5 1531 35.5 4 1531 35.5 1533 35.5 1531 35.5
416.gamess 4 938 83.5 938 83.5 938 83.5 4 918 85.3 918 85.3 918 85.3
433.milc 4 1560 23.5 1561 23.5 1561 23.5 4 1573 23.4 1572 23.4 1573 23.3
434.zeusmp 4 740 49.2 742 49.0 743 49.0 4 725 50.2 726 50.2 726 50.1
435.gromacs 4 394 72.6 394 72.6 393 72.6 4 393 72.7 391 73.0 391 73.0
436.cactusADM 4 892 53.6 891 53.7 890 53.7 4 892 53.6 891 53.7 890 53.7
437.leslie3d 4 1434 26.2 1434 26.2 1436 26.2 4 1437 26.2 1437 26.2 1439 26.1
444.namd 4 511 62.8 510 62.9 510 62.8 4 504 63.7 503 63.8 503 63.8
447.dealII 4 830 55.1 828 55.3 813 56.3 4 794 57.6 788 58.1 786 58.2
450.soplex 4 1156 28.9 1157 28.8 1155 28.9 4 1156 28.9 1154 28.9 1154 28.9
453.povray 4 240 88.5 240 88.5 240 88.5 4 192 111   192 111   192 111
454.calculix 4 616 53.6 600 55.0 611 54.0 4 618 53.4 597 55.3 607 54.4
459.GemsFDTD 4 1765 24.0 1765 24.0 1769 24.0 4 1765 24.0 1765 24.0 1769 24.0
465.tonto 4 705 55.8 709 55.5 709 55.5 4 703 56.0 708 55.6 710 55.4
470.lbm 4 2463 22.3 2464 22.3 2464 22.3 4 2464 22.3 2466 22.3 2465 22.3
481.wrf 4 925 48.3 925 48.3 925 48.3 4 934 47.8 929 48.1 925 48.3
482.sphinx3 4 1798 43.3 1795 43.4 1799 43.3 4 1797 43.4 1783 43.7 1781 43.8

General Notes

 Binaries were built on Windows Vista Ultimate (64-bit)

 BIOS Settings
   Snoop Filter                 : ON
   Adjacent Cache Line Prefetch : ON
   Hardware Prefetcher          : ON

   Snoop Filter
     Preserves cache coherency while minimizing snoops
     to remote nodes.

   Adjacent Cache Line Prefetch
     Prefetch data in order to shorten execution cycles
     and maximize data processing efficiency.

   Optimization for high-frequency FSB applicatons: ON

Base Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -D_Complex=   -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -D_Complex=   -DSPEC_CPU_P64
436.cactusADM:  -D_Complex=   -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -D_Complex=   -DSPEC_CPU_P64   -DBOOST_NO_INTRINSIC_WCHAR_T   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -D_Complex=   -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -D_Complex=   -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -D_Complex=   -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   -Qauto_ilp32   /F950000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qstd=c99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qstd=c99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Oa   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
470.lbm:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qscalar-rep-   -Qprefetch   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
482.sphinx3:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

444.namd:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
447.dealII:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qprefetch   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
450.soplex:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE
453.povray:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qansi-alias   -Qcxx_features   -Qauto_ilp32   /F950000000   shlW64M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  ONESTEP   -fast   /F950000000    -link /FORCE:MULTIPLE
416.gamess:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qunroll2   -Ob0   -Qansi-alias   -Qscalar-rep-   /F950000000    -link /FORCE:MULTIPLE
434.zeusmp:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -QxT   -O2   -Qprec-div-   -Qunroll0   -Qscalar-rep-   /F950000000    -link /FORCE:MULTIPLE
437.leslie3d:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000    -link /FORCE:MULTIPLE
459.GemsFDTD:  basepeak = yes
465.tonto:  Same as 437.leslie3d

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Oa   -Qauto_ilp32   /F950000000    -link /FORCE:MULTIPLE
436.cactusADM:  basepeak = yes
454.calculix:  -fast   -Qauto_ilp32   /F950000000    -link /FORCE:MULTIPLE
481.wrf:  Same as 454.calculix

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.ic10.windows.flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.ic10.windows.flags.xml.
