SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

CELSIUS H250, Intel Core 2 Duo T7700 processor

SPECfp®2006 = 15.6

CPU2006 license: 22 Test date: Aug-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Jul-2007
Tested by: Fujitsu Siemens Computers Software Availability: Jun-2007

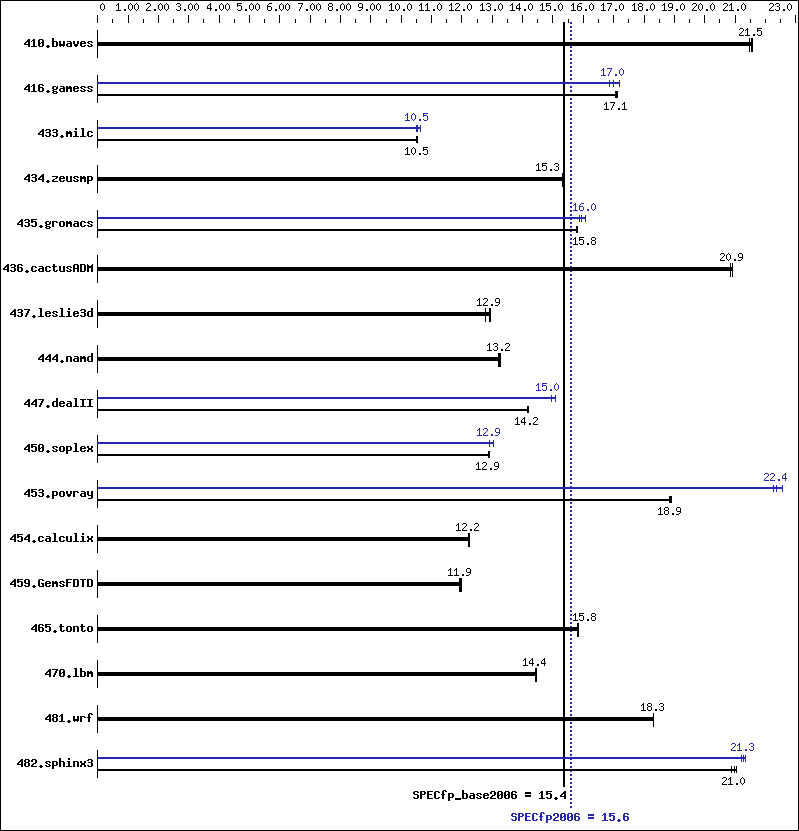

Benchmark results graph
Hardware
CPU Name: Intel Core 2 Duo T7700
CPU Characteristics:
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 2 GB (2x1 GB 667 MHz CL5 DDR2 SDRAM)
Disk Subsystem: 1 x 80 GB SATA 7200 RPM
Other Hardware: None
Software
Operating System: Windows Vista Ultimate, 64 bit Version
Compiler: Intel C++ Compiler
. for applications running on Intel 64,
. Version 10.0.026, Build 20070613
Intel Visual Fortran Compiler
. for applications running on Intel 64,
. Version 10.0.026, Build 20070613
Microsoft Visual Studio 2005 with SP1
. (for libraries)
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 633 21.5 631 21.5 630 21.6 633 21.5 631 21.5 630 21.6
416.gamess 1147 17.1 1146 17.1 1143 17.1 1139 17.2 1161 16.9 1153 17.0
433.milc 874 10.5 870 10.5 871 10.5 864 10.6 872 10.5 874 10.5
434.zeusmp 595 15.3 594 15.3 593 15.4 595 15.3 594 15.3 593 15.4
435.gromacs 453 15.8 453 15.8 452 15.8 444 16.1 450 15.9 448 16.0
436.cactusADM 573 20.8 571 20.9 571 20.9 573 20.8 571 20.9 571 20.9
437.leslie3d 735 12.8 726 12.9 728 12.9 735 12.8 726 12.9 728 12.9
444.namd 606 13.2 607 13.2 605 13.3 606 13.2 607 13.2 605 13.3
447.dealII 808 14.2 808 14.2 805 14.2 759 15.1 765 15.0 765 15.0
450.soplex 646 12.9 647 12.9 647 12.9 640 13.0 646 12.9 645 12.9
453.povray 282 18.9 282 18.8 282 18.9 236 22.6 238 22.4 239 22.3
454.calculix 674 12.2 676 12.2 673 12.3 674 12.2 676 12.2 673 12.3
459.GemsFDTD 885 12.0 889 11.9 890 11.9 885 12.0 889 11.9 890 11.9
465.tonto 621 15.8 623 15.8 622 15.8 621 15.8 623 15.8 622 15.8
470.lbm 951 14.5 952 14.4 952 14.4 951 14.5 952 14.4 952 14.4
481.wrf 610 18.3 610 18.3 609 18.3 610 18.3 610 18.3 609 18.3
482.sphinx3 933 20.9 929 21.0 926 21.0 919 21.2 916 21.3 913 21.3

Platform Notes

BIOS default settings have been used.

General Notes


For information about Fujitsu Siemens Computers in your country please see:
http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc8   -Qc99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -DSPEC_CPU_P64
436.cactusADM:  -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -DSPEC_CPU_P64   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -Qparallel   -F950000000

C++ benchmarks:

 -fast   -Qparallel   -Qcxx-features   -F950000000

Fortran benchmarks:

 -fast   -Qparallel   -F950000000

Benchmarks using both Fortran and C:

 -fast   -Qparallel   -F950000000

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc8   -Qc99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000
470.lbm:  basepeak = yes
482.sphinx3:  Same as 433.milc

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx-features   -F950000000
450.soplex:  Same as 447.dealII
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  -fast   -F950000000
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.32.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.32.xml.
