| CPU2006 license: | 11 | Test date: | Aug-2007 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Sep-2007 |
| Tested by: | IBM Corporation | Software Availability: | Jul-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5365 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2 GB DDR2-5300F ECC) |
| Disk Subsystem: | 1 x 36 GB SAS, 15000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SLES 10 (x86_64), 2.6.16.21-0.8-smp |
| Compiler: | Intel C++ Compiler for Linux version 10.0 Build 20070426 Package ID: l_cc_p_10.0.023 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap 8.1 |

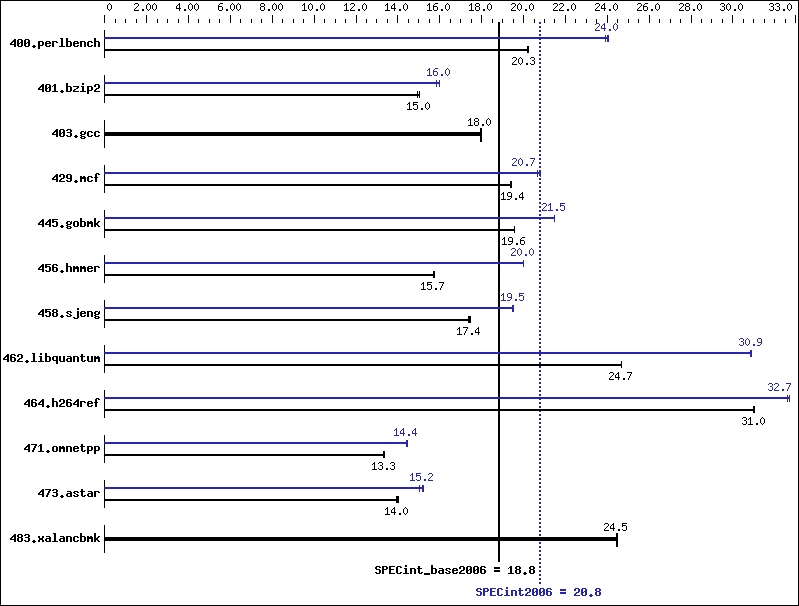

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 482 | 20.3 | 484 | 20.2 | 482 | 20.3 | 406 | 24.0 | 409 | 23.9 | 407 | 24.0 |
| 401.bzip2 | 641 | 15.1 | 647 | 14.9 | 643 | 15.0 | 609 | 15.8 | 603 | 16.0 | 603 | 16.0 |
| 403.gcc | 448 | 18.0 | 449 | 17.9 | 448 | 18.0 | 448 | 18.0 | 449 | 17.9 | 448 | 18.0 |
| 429.mcf | 470 | 19.4 | 469 | 19.4 | 470 | 19.4 | 438 | 20.8 | 442 | 20.6 | 441 | 20.7 |
| 445.gobmk | 536 | 19.6 | 536 | 19.6 | 536 | 19.6 | 488 | 21.5 | 489 | 21.5 | 488 | 21.5 |
| 456.hmmer | 594 | 15.7 | 594 | 15.7 | 593 | 15.7 | 467 | 20.0 | 466 | 20.0 | 466 | 20.0 |
| 458.sjeng | 696 | 17.4 | 692 | 17.5 | 695 | 17.4 | 622 | 19.4 | 620 | 19.5 | 621 | 19.5 |
| 462.libquantum | 839 | 24.7 | 840 | 24.7 | 840 | 24.7 | 671 | 30.9 | 671 | 30.9 | 671 | 30.9 |
| 464.h264ref | 714 | 31.0 | 714 | 31.0 | 713 | 31.0 | 676 | 32.7 | 677 | 32.7 | 679 | 32.6 |
| 471.omnetpp | 468 | 13.3 | 468 | 13.3 | 469 | 13.3 | 433 | 14.4 | 432 | 14.5 | 434 | 14.4 |
| 473.astar | 503 | 13.9 | 501 | 14.0 | 501 | 14.0 | 462 | 15.2 | 468 | 15.0 | 461 | 15.2 |
| 483.xalancbmk | 282 | 24.5 | 282 | 24.4 | 282 | 24.5 | 282 | 24.5 | 282 | 24.4 | 282 | 24.5 |
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
| 456.hmmer: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | basepeak = yes |
