SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM BladeCenter LS21 (AMD Opteron 2218)

SPECint®2006 = 13.2

CPU2006 license: 11 Test date: Aug-2007
Test sponsor: IBM Corporation Hardware Availability: Oct-2006
Tested by: IBM Corporation Software Availability: Mar-2007

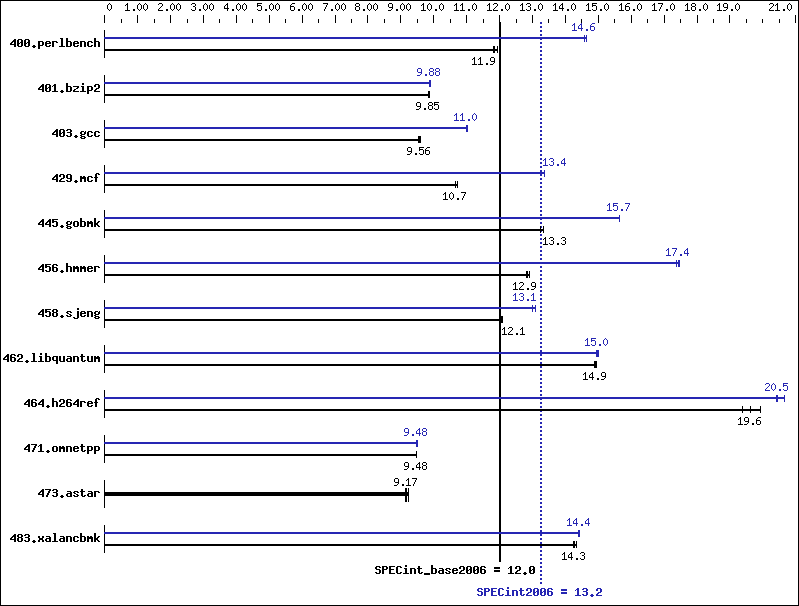

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2218
CPU Characteristics:
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1, 2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2GB DDR2-5300 ECC)
Disk Subsystem: 1 x 36 GB SAS, 10000 RPM
Other Hardware: None
Software
Operating System: SLES 10 (x86_64), 2.6.16.21-0.8-smp
Compiler: QLogic PathScale
Compiler Suite, Release 3.0
Auto Parallel: No
File System: ext3
System State: Multi-user, run level 3
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap 8.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 826 11.8  819 11.9  824 11.9  668 14.6  670 14.6  670 14.6
401.bzip2 980 9.85 979 9.85 980 9.85 975 9.90 977 9.88 976 9.88
403.gcc 842 9.56 840 9.58 843 9.54 731 11.0  731 11.0  732 11.0
429.mcf 855 10.7  852 10.7  855 10.7  682 13.4  683 13.4  682 13.4
445.gobmk 793 13.2  787 13.3  788 13.3  670 15.7  670 15.7  670 15.7
456.hmmer 726 12.9  728 12.8  723 12.9  535 17.4  534 17.5  537 17.4
458.sjeng 1001 12.1  1003 12.1  1007 12.0  931 13.0  924 13.1  925 13.1
462.libquantum 1390 14.9  1391 14.9  1386 14.9  1384 15.0  1380 15.0  1386 15.0
464.h264ref 1141 19.4  1128 19.6  1110 19.9  1071 20.7  1082 20.5  1084 20.4
471.omnetpp 659 9.48 659 9.49 660 9.47 657 9.52 659 9.48 659 9.48
473.astar 765 9.17 762 9.22 769 9.13 765 9.17 762 9.22 769 9.13
483.xalancbmk 481 14.3  483 14.3  484 14.2  478 14.4  479 14.4  479 14.4

General Notes

 taskset utility used to bind CPU(s) to processes

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -Ofast   -OPT:malloc_alg=1

C++ benchmarks:

 -Ofast   -m32   -L/tools/SmartHeap_8.1/lib -lsmartheap

Base Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

Peak Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:opt=0
401.bzip2:  -O3   -LNO:ou_prod_max=10   -OPT:Ofast   -OPT:alias=disjoint
403.gcc:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:Ofast
429.mcf:  -m32   -O3   -ipa   -L/tools/SmartHeap_8.1/lib -lsmartheap
445.gobmk:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=disjoint   -LNO:simd=0   -LNO:minvariant=off   -WOPT:retype_expr=on
456.hmmer:  -O2   -OPT:alias=disjoint   -OPT:malloc_alg=1   -CG:cflow=0
458.sjeng:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=50000   -IPA:pu_reorder=2
462.libquantum:  -O3   -ipa   -CG:local_fwd_sched=on   -IPA:space=1000
464.h264ref:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=20000   -OPT:alias=disjoint   -LNO:prefetch=0

C++ benchmarks:

471.omnetpp:  -Ofast   -CG:gcm=off   -m32   -L/tools/SmartHeap_8.1/lib -lsmartheap
473.astar:  basepeak = yes
483.xalancbmk:  -Ofast   -m32   -OPT:unroll_times_max=8   -L/tools/SmartHeap_8.1/lib -lsmartheap

Peak Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.xml.
