| CPU2006 license: | 97 | Test date: | Jul-2007 |
|---|---|---|---|
| Test sponsor: | Acer Incorporated | Hardware Availability: | Nov-2006 |
| Tested by: | Acer Incorporated | Software Availability: | Jun-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5320 |
| CPU Characteristics: | 1066MHz system bus |
| CPU MHz: | 1860 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2048MB ECC FB-DIMM DDR2-667 CL5-5-5) |
| Disk Subsystem: | 1 x 73 GB 10000RPM SAS HDD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 EM64T (kernel 2.6.16.21-0.8-smp) |
| Compiler: | Intel C++ Compiler for Linux32 version 10.0 Build 20070426 Package ID: l_cc_p_10.0.023 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap Library 8.1 |

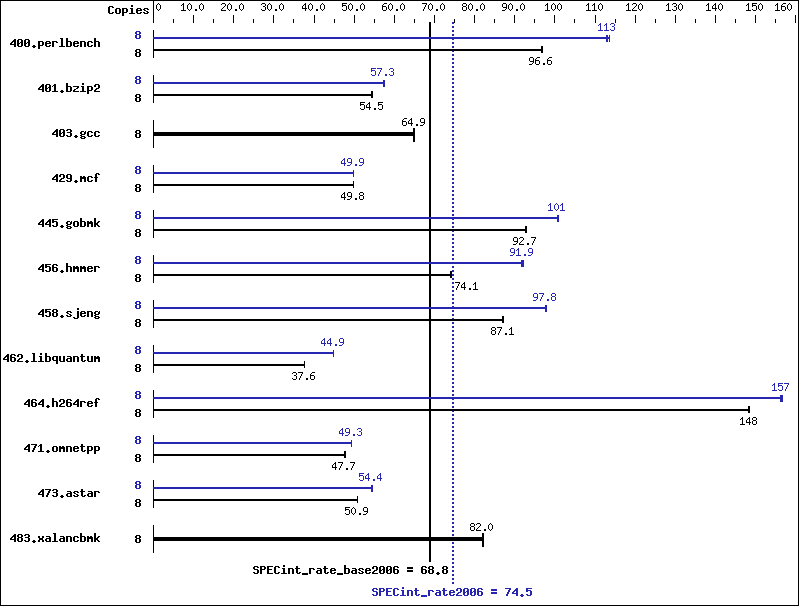

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 810 | 96.5 | 809 | 96.6 | 807 | 96.8 | 8 | 692 | 113 | 691 | 113 | 688 | 114 |
| 401.bzip2 | 8 | 1416 | 54.5 | 1416 | 54.5 | 1418 | 54.4 | 8 | 1347 | 57.3 | 1341 | 57.6 | 1346 | 57.3 |
| 403.gcc | 8 | 990 | 65.0 | 995 | 64.7 | 992 | 64.9 | 8 | 990 | 65.0 | 995 | 64.7 | 992 | 64.9 |
| 429.mcf | 8 | 1466 | 49.8 | 1464 | 49.8 | 1465 | 49.8 | 8 | 1462 | 49.9 | 1462 | 49.9 | 1464 | 49.8 |
| 445.gobmk | 8 | 905 | 92.7 | 903 | 92.9 | 906 | 92.6 | 8 | 835 | 101 | 833 | 101 | 833 | 101 |
| 456.hmmer | 8 | 1007 | 74.1 | 1006 | 74.2 | 1009 | 74.0 | 8 | 812 | 91.9 | 810 | 92.2 | 814 | 91.7 |
| 458.sjeng | 8 | 1113 | 87.0 | 1111 | 87.1 | 1111 | 87.1 | 8 | 990 | 97.8 | 991 | 97.7 | 988 | 97.9 |
| 462.libquantum | 8 | 4414 | 37.6 | 4415 | 37.5 | 4414 | 37.6 | 8 | 3692 | 44.9 | 3692 | 44.9 | 3694 | 44.9 |
| 464.h264ref | 8 | 1193 | 148 | 1193 | 148 | 1194 | 148 | 8 | 1133 | 156 | 1130 | 157 | 1131 | 157 |
| 471.omnetpp | 8 | 1046 | 47.8 | 1048 | 47.7 | 1049 | 47.7 | 8 | 1015 | 49.3 | 1015 | 49.2 | 1015 | 49.3 |
| 473.astar | 8 | 1104 | 50.9 | 1103 | 50.9 | 1103 | 50.9 | 8 | 1032 | 54.4 | 1030 | 54.5 | 1032 | 54.4 |
| 483.xalancbmk | 8 | 671 | 82.3 | 674 | 81.8 | 673 | 82.0 | 8 | 671 | 82.3 | 674 | 81.8 | 673 | 82.0 |
General Notes
taskset was used to bind copies to cores
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
| 456.hmmer: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | basepeak = yes |
