| CPU2006 license: | 11 | Test date: | Jul-2007 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Oct-2006 |
| Tested by: | IBM Corporation | Software Availability: | Mar-2007 |
| Hardware | |
|---|---|
| CPU Name: | AMD Opteron 2216 |
| CPU Characteristics: | |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2GB DDR2-5300 ECC) |
| Disk Subsystem: | 1 x 36 GB SAS, 10000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SLES 10 (x86_64), 2.6.16.21-0.8-smp |
| Compiler: | QLogic PathScale Compiler Suite, Release 3.0 |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | MicroQuill SmartHeap 8.1 |

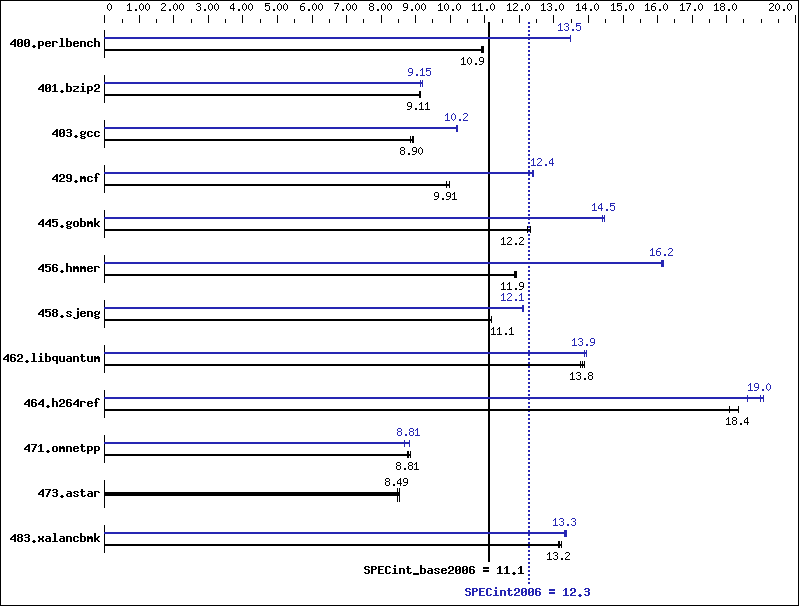

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 894 | 10.9 | 891 | 11.0 | 895 | 10.9 | 725 | 13.5 | 725 | 13.5 | 725 | 13.5 |
| 401.bzip2 | 1057 | 9.13 | 1060 | 9.10 | 1060 | 9.11 | 1048 | 9.21 | 1055 | 9.15 | 1054 | 9.15 |
| 403.gcc | 900 | 8.95 | 904 | 8.90 | 910 | 8.85 | 790 | 10.2 | 789 | 10.2 | 789 | 10.2 |
| 429.mcf | 913 | 9.99 | 921 | 9.90 | 921 | 9.91 | 736 | 12.4 | 735 | 12.4 | 735 | 12.4 |
| 445.gobmk | 852 | 12.3 | 857 | 12.2 | 857 | 12.2 | 728 | 14.4 | 726 | 14.5 | 726 | 14.5 |
| 456.hmmer | 787 | 11.9 | 782 | 11.9 | 785 | 11.9 | 579 | 16.1 | 578 | 16.2 | 577 | 16.2 |
| 458.sjeng | 1086 | 11.1 | 1081 | 11.2 | 1088 | 11.1 | 998 | 12.1 | 1001 | 12.1 | 999 | 12.1 |
| 462.libquantum | 1503 | 13.8 | 1491 | 13.9 | 1497 | 13.8 | 1487 | 13.9 | 1491 | 13.9 | 1493 | 13.9 |
| 464.h264ref | 1223 | 18.1 | 1206 | 18.4 | 1206 | 18.4 | 1190 | 18.6 | 1166 | 19.0 | 1160 | 19.1 |
| 471.omnetpp | 705 | 8.86 | 710 | 8.81 | 713 | 8.77 | 710 | 8.81 | 708 | 8.82 | 721 | 8.66 |
| 473.astar | 824 | 8.52 | 828 | 8.47 | 827 | 8.49 | 824 | 8.52 | 828 | 8.47 | 827 | 8.49 |
| 483.xalancbmk | 522 | 13.2 | 525 | 13.1 | 524 | 13.2 | 518 | 13.3 | 517 | 13.4 | 517 | 13.3 |
General Notes
taskset utility used to bind CPU(s) to processes
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -Ofast -OPT:malloc_alg=1 |
C++ benchmarks:
| -Ofast -m32 -L/tools/SmartHeap_8.1/lib -lsmartheap |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -LNO:opt=0 |
| 401.bzip2: | -O3 -LNO:ou_prod_max=10 -OPT:Ofast -OPT:alias=disjoint |
| 403.gcc: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:Ofast |
| 429.mcf: | -m32 -O3 -ipa -L/tools/SmartHeap_8.1/lib -lsmartheap |
| 445.gobmk: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:alias=disjoint -LNO:simd=0 -LNO:minvariant=off -WOPT:retype_expr=on |
| 456.hmmer: | -O2 -OPT:alias=disjoint -OPT:malloc_alg=1 -CG:cflow=0 |
| 458.sjeng: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=50000 -IPA:pu_reorder=2 |
| 462.libquantum: | -O3 -ipa -CG:local_fwd_sched=on -IPA:space=1000 |
| 464.h264ref: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=20000 -OPT:alias=disjoint -LNO:prefetch=0 |
C++ benchmarks:
| 471.omnetpp: | -Ofast -CG:gcm=off -m32 -L/tools/SmartHeap_8.1/lib -lsmartheap |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | -Ofast -m32 -OPT:unroll_times_max=8 -L/tools/SmartHeap_8.1/lib -lsmartheap |
