SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM BladeCenter LS41 (AMD Opteron 8216)

SPECint®2006 = 11.7

CPU2006 license: 11 Test date: Jul-2007
Test sponsor: IBM Corporation Hardware Availability: Oct-2006
Tested by: IBM Corporation Software Availability: Mar-2007

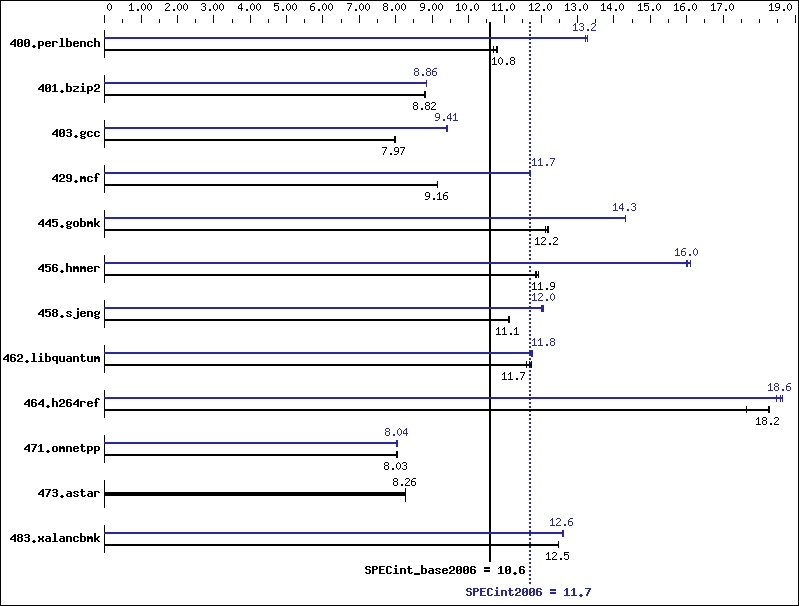

Benchmark results graph
Hardware
CPU Name: AMD Opteron 8216
CPU Characteristics:
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip
CPU(s) orderable: 1, 2, 3, 4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 32 GB (16 x 2GB DDR2-5300 ECC)
Disk Subsystem: 1 x 36 GB SAS, 10000 RPM
Other Hardware: None
Software
Operating System: SLES 10 (x86_64), 2.6.16.21-0.8-smp
Compiler: QLogic PathScale
Compiler Suite, Release 3.0
Auto Parallel: No
File System: ext3
System State: Multi-user, run level 3
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill SmartHeap 8.1

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 915 10.7  907 10.8  905 10.8  740 13.2  737 13.3  740 13.2
401.bzip2 1093 8.83 1097 8.80 1094 8.82 1090 8.86 1090 8.85 1089 8.86
403.gcc 1008 7.99 1011 7.96 1009 7.97 855 9.41 857 9.40 855 9.41
429.mcf 996 9.16 998 9.14 996 9.16 780 11.7  779 11.7  779 11.7
445.gobmk 866 12.1  861 12.2  861 12.2  733 14.3  733 14.3  733 14.3
456.hmmer 783 11.9  787 11.9  785 11.9  582 16.0  579 16.1  584 16.0
458.sjeng 1089 11.1  1087 11.1  1090 11.1  1004 12.0  1009 12.0  1004 12.1
462.libquantum 1785 11.6  1776 11.7  1768 11.7  1765 11.7  1763 11.8  1760 11.8
464.h264ref 1213 18.2  1254 17.6  1211 18.3  1187 18.6  1190 18.6  1199 18.5
471.omnetpp 778 8.03 779 8.02 777 8.04 778 8.03 777 8.04 777 8.04
473.astar 850 8.26 848 8.28 849 8.26 850 8.26 848 8.28 849 8.26
483.xalancbmk 553 12.5  553 12.5  553 12.5  547 12.6  548 12.6  549 12.6

General Notes

 taskset utility used to bind CPU(s) to processes

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -Ofast   -OPT:malloc_alg=1

C++ benchmarks:

 -Ofast   -m32   -L/tools/SmartHeap_8.1/lib -lsmartheap

Base Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

Peak Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -LNO:opt=0
401.bzip2:  -O3   -LNO:ou_prod_max=10   -OPT:Ofast   -OPT:alias=disjoint
403.gcc:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:Ofast
429.mcf:  -m32   -O3   -ipa   -L/tools/SmartHeap_8.1/lib -lsmartheap
445.gobmk:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=disjoint   -LNO:simd=0   -LNO:minvariant=off   -WOPT:retype_expr=on
456.hmmer:  -O2   -OPT:alias=disjoint   -OPT:malloc_alg=1   -CG:cflow=0
458.sjeng:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=50000   -IPA:pu_reorder=2
462.libquantum:  -O3   -ipa   -CG:local_fwd_sched=on   -IPA:space=1000
464.h264ref:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=20000   -OPT:alias=disjoint   -LNO:prefetch=0

C++ benchmarks:

471.omnetpp:  -Ofast   -CG:gcm=off   -m32   -L/tools/SmartHeap_8.1/lib -lsmartheap
473.astar:  basepeak = yes
483.xalancbmk:  -Ofast   -m32   -OPT:unroll_times_max=8   -L/tools/SmartHeap_8.1/lib -lsmartheap

Peak Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.xml.
