SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

IBM Corporation

IBM System x3455 (AMD Opteron 2222 SE)

CPU2006 license: 11 Test date: Jul-2007
Test sponsor: IBM Corporation Hardware Availability: Apr-2007
Tested by: IBM Corporation Software Availability: Mar-2007

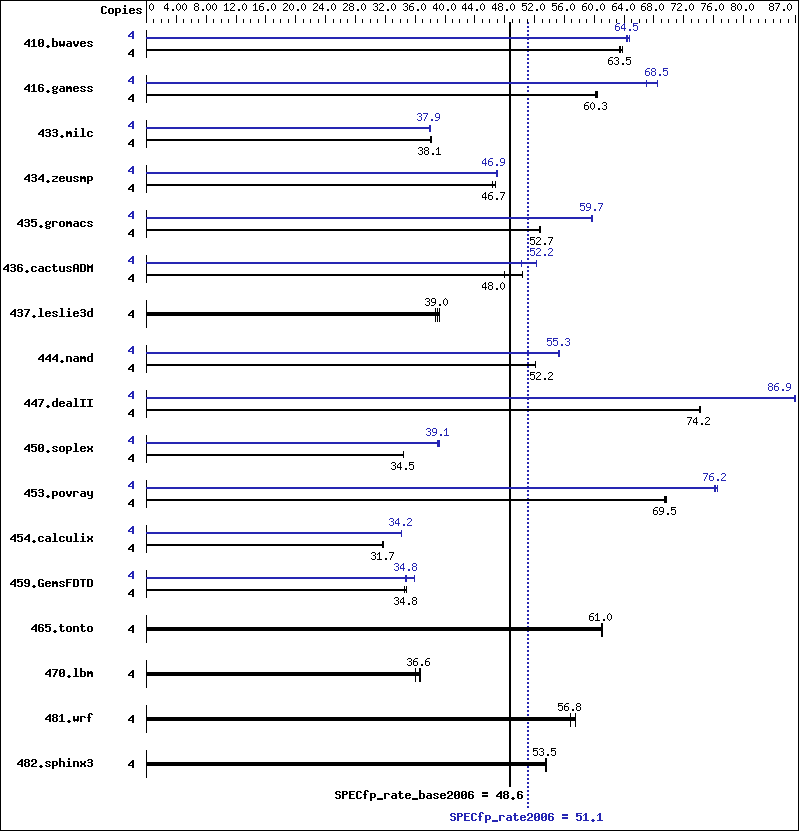

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2222 SE
CPU Characteristics:
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1, 2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2GB DDR2-5300 ECC)
Disk Subsystem: 1 x 160 GB Serial ATA, 7200 RPM
Other Hardware: None
Software
Operating System: SLES 10 (x86_64), 2.6.16.21-0.8-smp
Compiler: QLogic PathScale
Compiler Suite, Release 3.0
Auto Parallel: No
File System: ext3
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 852 63.8 856 63.5 858 63.3 4 843 64.5 840 64.7 845 64.3
416.gamess 4 1298 60.3 1297 60.4 1301 60.2 4 1168 67.0 1144 68.5 1143 68.5
433.milc 4 964 38.1 963 38.1 964 38.1 4 965 38.1 968 37.9 970 37.9
434.zeusmp 4 778 46.8 779 46.7 785 46.4 4 776 46.9 776 46.9 774 47.0
435.gromacs 4 543 52.6 541 52.7 541 52.8 4 478 59.7 478 59.7 479 59.6
436.cactusADM 4 996 48.0 998 47.9 949 50.4 4 952 50.2 915 52.2 914 52.3
437.leslie3d 4 970 38.8 956 39.3 964 39.0 4 970 38.8 956 39.3 964 39.0
444.namd 4 615 52.2 615 52.2 615 52.2 4 581 55.2 580 55.3 580 55.3
447.dealII 4 617 74.2 617 74.2 617 74.1 4 526 86.9 527 86.9 527 86.8
450.soplex 4 967 34.5 968 34.5 968 34.5 4 855 39.0 852 39.1 850 39.2
453.povray 4 306 69.7 306 69.5 306 69.4 4 279 76.2 278 76.6 279 76.2
454.calculix 4 1040 31.7 1044 31.6 1041 31.7 4 964 34.2 965 34.2 964 34.2
459.GemsFDTD 4 1219 34.8 1229 34.5 1219 34.8 4 1184 35.9 1218 34.8 1221 34.8
465.tonto 4 646 61.0 645 61.0 644 61.1 4 646 61.0 645 61.0 644 61.1
470.lbm 4 1523 36.1 1504 36.6 1496 36.7 4 1523 36.1 1504 36.6 1496 36.7
481.wrf 4 786 56.8 786 56.8 777 57.5 4 786 56.8 786 56.8 777 57.5
482.sphinx3 4 1456 53.5 1455 53.6 1457 53.5 4 1456 53.5 1455 53.6 1457 53.5

General Notes

 taskset utility used to bind CPU(s) to processes
DSPEC_CPU_TABLE_WORKAROUND was used for portability when compiling 447.dealII
due to compilation being performed on SLES 9 SP3

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64   -DSPEC_CPU_TABLE_WORKAROUND
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Ofast

C++ benchmarks:

 -Ofast

Fortran benchmarks:

 -Ofast   -OPT:malloc_alg=1

Benchmarks using both Fortran and C:

 -Ofast   -OPT:malloc_alg=1

Base Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

Fortran benchmarks:

 -IPA:max_jobs=2

Benchmarks using both Fortran and C:

 -IPA:max_jobs=2

Peak Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_TABLE_WORKAROUND
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -Ofast   -CG:cflow=off   -LNO:prefetch=1   -OPT:malloc_alg=1
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-exceptions
447.dealII:  -Ofast   -INLINE:aggressive=on   -LNO:opt=0   -OPT:alias=disjoint   -m32   -fno-exceptions
450.soplex:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:IEEE_arith=3   -CG:load_exe=0   -CG:movnti=1   -LNO:minvariant=off   -LNO:prefetch=1   -fno-exceptions
453.povray:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-fast-math

Fortran benchmarks:

410.bwaves:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:Ofast   -OPT:IEEE_arith=3   -LNO:blocking=off   -LNO:ignore_feedback=off
416.gamess:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256
434.zeusmp:  -Ofast   -CG:local_fwd_sched=on   -LNO:blocking=off   -LNO:interchange=off   -LNO:fu=10   -LNO:full_unroll_outer=on
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -Ofast   -LNO:fission=2   -LNO:prefetch=0
465.tonto:  basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:  -O3   -OPT:rsqrt=2   -OPT:ro=3
436.cactusADM:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:prefetch=3   -LNO:prefetch_ahead=5   -LNO:ou_prod_max=10   -LNO:full_unroll=5   -ipa
454.calculix:  -Ofast   -LNO:simd=0   -WOPT:mem_opnds=on
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

Fortran benchmarks:

 -IPA:max_jobs=2

Benchmarks using both Fortran and C:

 -IPA:max_jobs=2

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.xml.
