SPEC® CFP2006 Result

Fujitsu Siemens Computers

CELSIUS V840, Opteron 2222, 64-bit Linux

SPECfp®2006 = 17.4

SPECfp_base2006 = 16.0

CPU2006 license:	22	Test date:	Jul-2007
Test sponsor:	Fujitsu Siemens Computers	Hardware Availability:	Jul-2007
Tested by:	Fujitsu Siemens Computers	Software Availability:	Mar-2007

Hardware
CPU Name:	AMD Opteron 2222
CPU Characteristics:	Dual Core, 3.0 GHz, 2 MB L2-cache
CPU MHz:	3000
FPU:	Integrated
CPU(s) enabled:	4 cores, 2 chips, 2 cores/chip
CPU(s) orderable:	1,2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (8x2GB DDR2-667 CL5 dual rank ECC DIMMs registered)
Disk Subsystem:	SATA II, 80 GB
Other Hardware:	None

Software
Operating System:	SLES 10 for AMD64/EM64T
Compiler:	QLogic PathScale Compiler Suite, - Release 3.0
Auto Parallel:	Yes
File System:	ext3
System State:	Multi-User SuSE Run Level 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	None

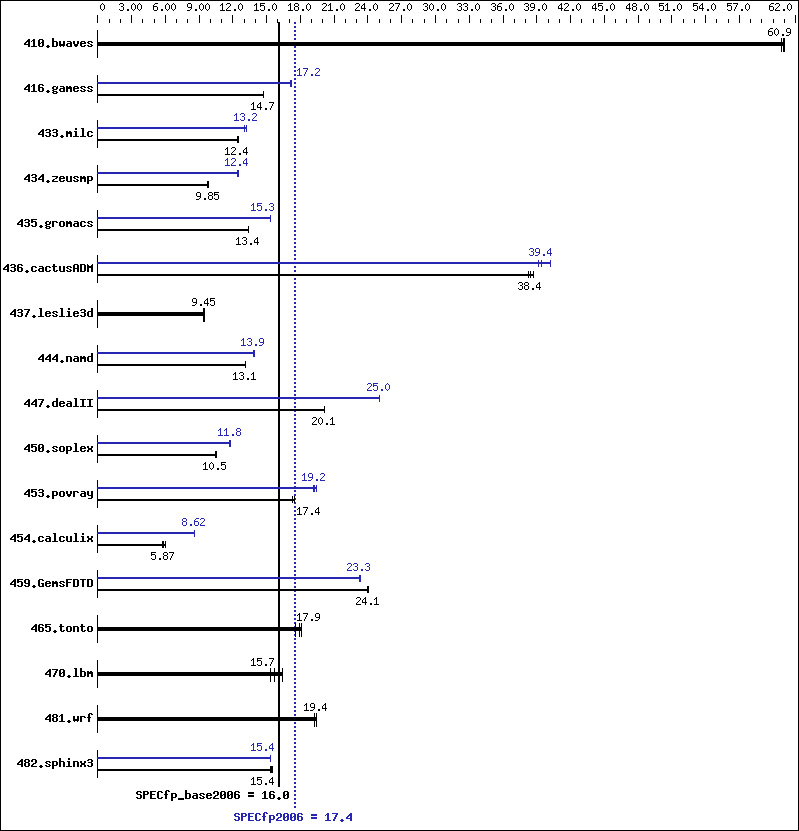

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	223	61.0	223	60.9	224	60.8	223	61.0	223	60.9	224	60.8
416.gamess	1330	14.7	1330	14.7	1328	14.7	1142	17.2	1140	17.2	1143	17.1
433.milc	739	12.4	739	12.4	732	12.5	706	13.0	697	13.2	696	13.2
434.zeusmp	922	9.87	924	9.85	930	9.79	730	12.5	733	12.4	734	12.4
435.gromacs	535	13.3	532	13.4	533	13.4	466	15.3	465	15.3	464	15.4
436.cactusADM	312	38.2	308	38.7	311	38.4	297	40.3	304	39.4	306	39.1
437.leslie3d	1001	9.39	995	9.45	995	9.45	1001	9.39	995	9.45	995	9.45
444.namd	612	13.1	613	13.1	612	13.1	578	13.9	579	13.9	578	13.9
447.dealII	569	20.1	568	20.1	569	20.1	457	25.0	457	25.0	458	25.0
450.soplex	795	10.5	792	10.5	796	10.5	709	11.8	714	11.7	707	11.8
453.povray	304	17.5	308	17.3	305	17.4	277	19.2	277	19.2	274	19.4
454.calculix	1428	5.78	1372	6.01	1406	5.87	957	8.62	957	8.62	957	8.62
459.GemsFDTD	440	24.1	441	24.1	443	23.9	454	23.4	456	23.3	456	23.3
465.tonto	544	18.1	550	17.9	561	17.5	544	18.1	550	17.9	561	17.5
470.lbm	838	16.4	874	15.7	898	15.3	838	16.4	874	15.7	898	15.3
481.wrf	576	19.4	579	19.3	574	19.5	576	19.4	579	19.3	574	19.5
482.sphinx3	1265	15.4	1253	15.6	1268	15.4	1267	15.4	1268	15.4	1272	15.3

Operating System Notes

 powersave -f is applied to set CPU to maximum frequency prior to run
 stacksize is set to unlimited prior to run

General Notes


BIOS default settings with
Node memory interleave disabled, SRAT enabled

For information about Fujitsu Siemens Computers in your country please see:
http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

pathcc

C++ benchmarks:

pathCC

Fortran benchmarks:

pathf95

Benchmarks using both Fortran and C:

pathcc pathf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-Ofast

C++ benchmarks:

-Ofast

Fortran benchmarks:

-Ofast -apo -OPT:malloc_alg=1

Benchmarks using both Fortran and C:

-Ofast -apo -OPT:malloc_alg=1

Base Other Flags

Peak Compiler Invocation

C benchmarks:

pathcc

C++ benchmarks:

pathCC

Fortran benchmarks:

pathf95

Benchmarks using both Fortran and C:

pathcc pathf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-Ofast -CG:cflow=off -LNO:prefetch=1 -OPT:malloc_alg=1
470.lbm:	basepeak = yes
482.sphinx3:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -apo -OPT:Ofast -WOPT:aggstr=0 -m32

C++ benchmarks:

444.namd:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -fno-exceptions
447.dealII:	-Ofast -apo -static -INLINE:aggressive=on -OPT:malloc_alg=1 -m32 -fno-exceptions
450.soplex:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -apo -OPT:IEEE_arith=3 -CG:load_exe=0 -CG:movnti=1 -LNO:minvariant=off -LNO:prefetch=1 -fno-exceptions
453.povray:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -apo -fno-fast-math

Fortran benchmarks:

410.bwaves:	basepeak = yes
416.gamess:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256
434.zeusmp:	-Ofast -CG:local_fwd_sched=on -LNO:blocking=off -LNO:interchange=off -LNO:fu=10 -LNO:full_unroll_outer=on
437.leslie3d:	basepeak = yes
459.GemsFDTD:	-Ofast -apo -LNO:fission=2 -LNO:prefetch=0
465.tonto:	basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:	-O3 -apo -OPT:rsqrt=2 -OPT:ro=3
436.cactusADM:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -apo -LNO:prefetch=3 -LNO:prefetch_ahead=5 -LNO:ou_prod_max=10 -LNO:full_unroll=5 -ipa
454.calculix:	-Ofast -LNO:simd=0 -WOPT:mem_opnds=on
481.wrf:	basepeak = yes

Peak Other Flags

C benchmarks:

-IPA:max_jobs=4

C++ benchmarks:

-IPA:max_jobs=4

Fortran benchmarks:

-IPA:max_jobs=4

Benchmarks using both Fortran and C:

-IPA:max_jobs=4

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.28.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.28.xml.
