SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY TX200 S3, Intel Xeon processor E5310,
1.60 GHz

CPU2006 license: 22 Test date: Jul-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Nov-2006
Tested by: Fujitsu Siemens Computers Software Availability: Jun-2007

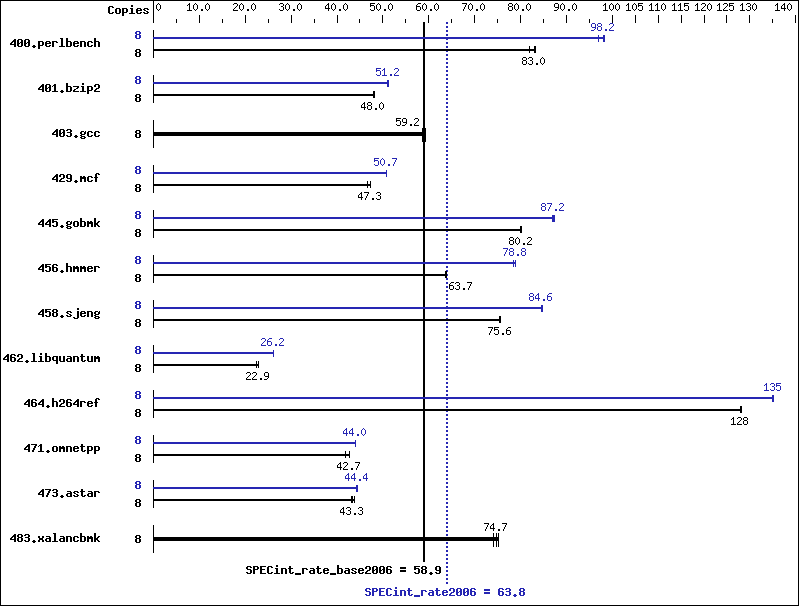

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5310
CPU Characteristics: 1067 MHz system bus
CPU MHz: 1600
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB DDR2 PC2-5300F, 2 rank, CAS 5-5-5,
with ECC)
Disk Subsystem: Seagate ST336754SS (SAS, 36GB, 15000rpm)
Other Hardware: None
Software
Operating System: SUSE LINUX Enterprise Server 10 (x86_64), Kernel
2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 10.0 - Build 20070308, Package-ID:
l_cc_p_10.0.023
Auto Parallel: No
File System: ext2
System State: Multiuser, Runlevel 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: Smart Heap Library, Version 8.1
binutils-2.17.tar.gz, Version 2.17

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 939 83.3 954 81.9 942 83.0 8 796 98.2 794 98.4 805 97.0
401.bzip2 8 1611 47.9 1608 48.0 1602 48.2 8 1515 51.0 1507 51.2 1507 51.2
403.gcc 8 1097 58.7 1088 59.2 1086 59.3 8 1097 58.7 1088 59.2 1086 59.3
429.mcf 8 1563 46.7 1543 47.3 1541 47.3 8 1436 50.8 1439 50.7 1438 50.7
445.gobmk 8 1050 79.9 1045 80.3 1047 80.2 8 961 87.3 964 87.0 963 87.2
456.hmmer 8 1169 63.8 1171 63.7 1171 63.7 8 945 79.0 947 78.8 952 78.4
458.sjeng 8 1284 75.4 1279 75.7 1281 75.6 8 1142 84.8 1144 84.6 1146 84.5
462.libquantum 8 7357 22.5 7245 22.9 7217 23.0 8 6317 26.2 6331 26.2 6323 26.2
464.h264ref 8 1383 128   1384 128   1381 128   8 1310 135   1310 135   1312 135
471.omnetpp 8 1193 41.9 1171 42.7 1167 42.8 8 1136 44.0 1135 44.1 1135 44.0
473.astar 8 1304 43.1 1297 43.3 1284 43.8 8 1265 44.4 1270 44.2 1265 44.4
483.xalancbmk 8 745 74.1 734 75.3 739 74.7 8 745 74.1 734 75.3 739 74.7

General Notes


 All binaries were built with 32-bit Intel compiler except:
 401.bzip2 and 456.hmmer in peak were built with 64-bit Intel
 compiler by changing the path for include and library files.

 BIOS configuration:
 Hardware Prefetch = Disable, Adjacent Sector Prefetch = Disable

 For information about Fujitsu Siemens Computers please see:
 http://www.fujitsu-siemens.com

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xT   -O3   -ipo   -no-prec-div   -ansi-alias   -L/opt/SmartHeap_8_1/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.0.023/bin/icc   -I/opt/intel/cce/10.0.023/include   -L/opt/intel/cce/10.0.023/lib
456.hmmer:  /opt/intel/cce/10.0.023/bin/icc   -I/opt/intel/cce/10.0.023/include   -L/opt/intel/cce/10.0.023/lib

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
401.bzip2:  -fast
403.gcc:  basepeak = yes
429.mcf:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -prefetch   -L/opt/SmartHeap_8_1/lib -lsmartheap
445.gobmk:  Same as 400.perlbench
456.hmmer:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll2
458.sjeng:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll4
462.libquantum:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -prefetch   -opt-streaming-stores always
464.h264ref:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -ansi-alias   -L/opt/SmartHeap_8_1/lib -lsmartheap
473.astar:  Same as 471.omnetpp
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/FSC_Intel_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/FSC_Intel_flags.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 12:46:34 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 8 August 2007.
