| CPU2006 license: | 97 | Test date: | Jun-2007 |
|---|---|---|---|
| Test sponsor: | Acer Incorporated | Hardware Availability: | Nov-2006 |
| Tested by: | Acer Incorporated | Software Availability: | Jun-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5335 |
| CPU Characteristics: | 1333MHz system bus |
| CPU MHz: | 2000 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2048MB ECC FB-DIMM DDR2-667 CL5-5-5) |
| Disk Subsystem: | 1 x 73 GB 10000RPM SAS HDD |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SUSE Linux Enterprise Server 10 EM64T (kernel 2.6.16.21-0.8-smp) |
| Compiler: | Intel C++ Compiler for Linux32 version 10.0 Build 20070426 Package ID: l_cc_p_10.0.023 |
| Auto Parallel: | No |
| File System: | ReiserFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | None |

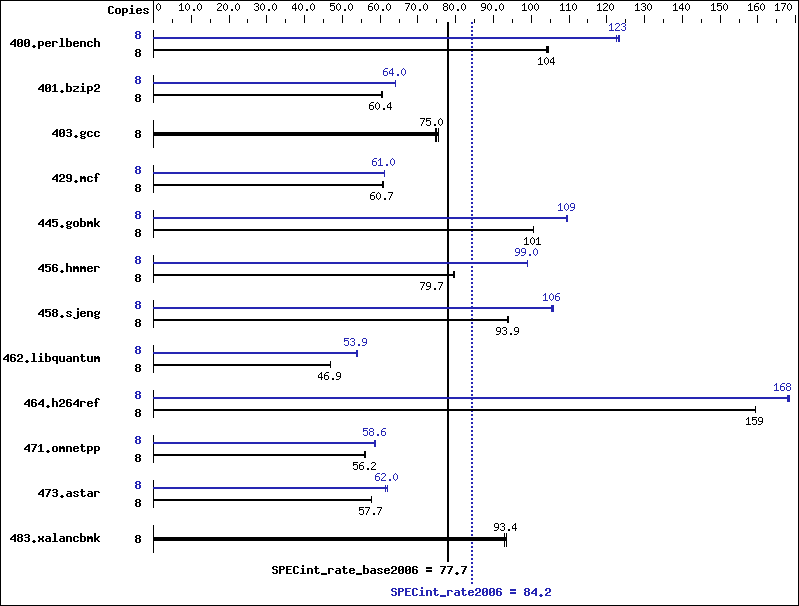

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 747 | 105 | 750 | 104 | 752 | 104 | 8 | 638 | 122 | 634 | 123 | 634 | 123 |
| 401.bzip2 | 8 | 1278 | 60.4 | 1274 | 60.6 | 1277 | 60.4 | 8 | 1207 | 64.0 | 1207 | 64.0 | 1206 | 64.0 |
| 403.gcc | 8 | 859 | 75.0 | 864 | 74.6 | 854 | 75.4 | 8 | 859 | 75.0 | 864 | 74.6 | 854 | 75.4 |
| 429.mcf | 8 | 1202 | 60.7 | 1203 | 60.6 | 1201 | 60.8 | 8 | 1195 | 61.0 | 1194 | 61.1 | 1196 | 61.0 |
| 445.gobmk | 8 | 835 | 100 | 835 | 101 | 835 | 101 | 8 | 767 | 109 | 768 | 109 | 765 | 110 |
| 456.hmmer | 8 | 936 | 79.7 | 936 | 79.7 | 940 | 79.4 | 8 | 754 | 98.9 | 754 | 99.1 | 754 | 99.0 |
| 458.sjeng | 8 | 1031 | 93.9 | 1029 | 94.1 | 1033 | 93.7 | 8 | 915 | 106 | 917 | 106 | 919 | 105 |
| 462.libquantum | 8 | 3536 | 46.9 | 3536 | 46.9 | 3537 | 46.9 | 8 | 3078 | 53.9 | 3077 | 53.9 | 3081 | 53.8 |
| 464.h264ref | 8 | 1111 | 159 | 1112 | 159 | 1111 | 159 | 8 | 1051 | 168 | 1055 | 168 | 1053 | 168 |
| 471.omnetpp | 8 | 890 | 56.2 | 890 | 56.2 | 897 | 55.7 | 8 | 854 | 58.6 | 852 | 58.7 | 853 | 58.6 |
| 473.astar | 8 | 973 | 57.7 | 972 | 57.7 | 973 | 57.7 | 8 | 913 | 61.5 | 906 | 62.0 | 906 | 62.0 |
| 483.xalancbmk | 8 | 591 | 93.4 | 594 | 92.9 | 591 | 93.4 | 8 | 591 | 93.4 | 594 | 92.9 | 591 | 93.4 |
General Notes
taskset was used to bind copies to cores
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -fast |
C++ benchmarks:
| -xT -ipo -O3 -no-prec-div -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
Peak Compiler Invocation
C benchmarks (except as noted below):
C++ benchmarks:
| icpc |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LINUX_IA32 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LINUX |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -prof-gen(pass 1) -prof-use(pass 2) -fast -ansi-alias -prefetch |
| 401.bzip2: | -prof-gen(pass 1) -prof-use(pass 2) -fast |
| 403.gcc: | basepeak = yes |
| 429.mcf: | -fast -prefetch |
| 445.gobmk: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O2 -ipo -no-prec_div -ansi-alias |
| 456.hmmer: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll2 -ansi-alias |
| 458.sjeng: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 |
| 462.libquantum: | -prof-gen(pass 1) -prof-use(pass 2) -fast -unroll4 -Ob0 -prefetch -opt-streaming-stores always |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| 471.omnetpp: | -prof-gen(pass 1) -prof-use(pass 2) -xT -O3 -ipo -no-prec_div -ansi-alias -Wl,-z,muldefs -L/spec/cpu2006.1.0/lib -lsmartheap |
| 473.astar: | Same as 471.omnetpp |
| 483.xalancbmk: | basepeak = yes |
