SPEC® CFP2006 Result

IBM Corporation

IBM System x3455 (AMD Opteron 2220)

SPECfp®2006 = 13.8

SPECfp_base2006 = 13.1

CPU2006 license:	11	Test date:	Jul-2007
Test sponsor:	IBM Corporation	Hardware Availability:	Apr-2007
Tested by:	IBM Corporation	Software Availability:	Mar-2007

Hardware
CPU Name:	AMD Opteron 2220
CPU Characteristics:
CPU MHz:	2800
FPU:	Integrated
CPU(s) enabled:	4 cores, 2 chips, 2 cores/chip
CPU(s) orderable:	1, 2 chips
Primary Cache:	64 KB I + 64 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
L3 Cache:	None
Other Cache:	None
Memory:	16 GB (8 x 2GB DDR2-5300 ECC)
Disk Subsystem:	1 x 160 GB Serial ATA, 7200 RPM
Other Hardware:	None

Software
Operating System:	SLES 10 (x86_64), 2.6.16.21-0.8-smp
Compiler:	QLogic PathScale Compiler Suite, Release 3.0
Auto Parallel:	No
File System:	ext3
System State:	Multi-user, run level 3
Base Pointers:	64-bit
Peak Pointers:	32/64-bit
Other Software:	MicroQuill SmartHeap 8.1

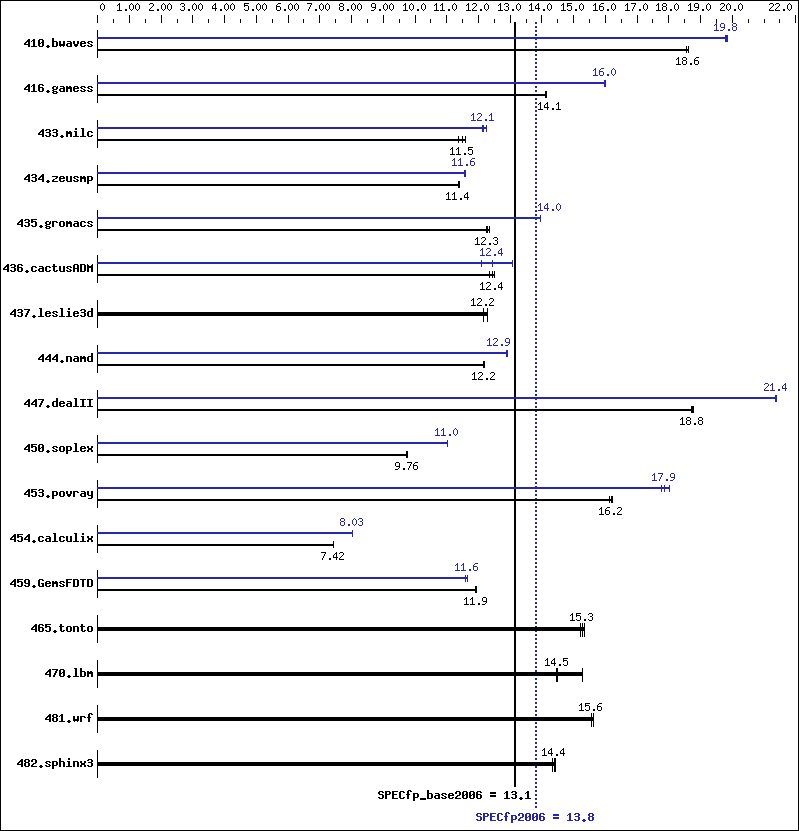

Results Table

Benchmark	Base						Peak
Benchmark	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	732	18.6	730	18.6	730	18.6	687	19.8	685	19.8	686	19.8
416.gamess	1388	14.1	1387	14.1	1386	14.1	1223	16.0	1225	16.0	1222	16.0
433.milc	808	11.4	799	11.5	791	11.6	758	12.1	756	12.1	750	12.2
434.zeusmp	798	11.4	801	11.4	799	11.4	784	11.6	786	11.6	788	11.5
435.gromacs	583	12.3	581	12.3	579	12.3	512	14.0	511	14.0	511	14.0
436.cactusADM	955	12.5	960	12.4	968	12.3	913	13.1	989	12.1	961	12.4
437.leslie3d	765	12.3	773	12.2	773	12.2	765	12.3	773	12.2	773	12.2
444.namd	659	12.2	658	12.2	659	12.2	621	12.9	621	12.9	622	12.9
447.dealII	610	18.8	610	18.8	611	18.7	535	21.4	535	21.4	535	21.4
450.soplex	853	9.77	856	9.74	854	9.76	756	11.0	757	11.0	756	11.0
453.povray	329	16.2	328	16.2	330	16.1	298	17.9	295	18.0	300	17.8
454.calculix	1112	7.42	1112	7.42	1111	7.42	1027	8.03	1027	8.03	1028	8.03
459.GemsFDTD	888	11.9	889	11.9	891	11.9	914	11.6	911	11.6	910	11.7
465.tonto	642	15.3	644	15.3	647	15.2	642	15.3	644	15.3	647	15.2
470.lbm	899	15.3	947	14.5	951	14.4	899	15.3	947	14.5	951	14.4
481.wrf	715	15.6	718	15.6	718	15.6	715	15.6	718	15.6	718	15.6
482.sphinx3	1354	14.4	1352	14.4	1359	14.3	1354	14.4	1352	14.4	1359	14.3

General Notes

 taskset utility used to bind CPU(s) to processes
DSPEC_CPU_TABLE_WORKAROUND was used for portability when compiling 447.dealII
due to compilation being performed on SLES 9 SP3

Base Compiler Invocation

C benchmarks:

pathcc

C++ benchmarks:

pathCC

Fortran benchmarks:

pathf95

Benchmarks using both Fortran and C:

pathcc pathf95

Base Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_LP64 -DSPEC_CPU_TABLE_WORKAROUND
450.soplex:	-DSPEC_CPU_LP64
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

-Ofast

C++ benchmarks:

-Ofast

Fortran benchmarks:

-Ofast -OPT:malloc_alg=1

Benchmarks using both Fortran and C:

-Ofast -OPT:malloc_alg=1

Base Other Flags

Peak Compiler Invocation

C benchmarks:

pathcc

C++ benchmarks:

pathCC

Fortran benchmarks:

pathf95

Benchmarks using both Fortran and C:

pathcc pathf95

Peak Portability Flags

410.bwaves:	-DSPEC_CPU_LP64
416.gamess:	-DSPEC_CPU_LP64
433.milc:	-DSPEC_CPU_LP64
434.zeusmp:	-DSPEC_CPU_LP64
435.gromacs:	-DSPEC_CPU_LP64
436.cactusADM:	-DSPEC_CPU_LP64 -fno-second-underscore
437.leslie3d:	-DSPEC_CPU_LP64
444.namd:	-DSPEC_CPU_LP64
447.dealII:	-DSPEC_CPU_TABLE_WORKAROUND
453.povray:	-DSPEC_CPU_LP64
454.calculix:	-DSPEC_CPU_LP64
459.GemsFDTD:	-DSPEC_CPU_LP64
465.tonto:	-DSPEC_CPU_LP64
470.lbm:	-DSPEC_CPU_LP64
481.wrf:	-DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -fno-second-underscore
482.sphinx3:	-DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:	-Ofast -CG:cflow=off -LNO:prefetch=1 -OPT:malloc_alg=1
470.lbm:	basepeak = yes
482.sphinx3:	basepeak = yes

C++ benchmarks:

444.namd:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -fno-exceptions
447.dealII:	-Ofast -INLINE:aggressive=on -LNO:opt=0 -OPT:alias=disjoint -m32 -fno-exceptions
450.soplex:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:IEEE_arith=3 -CG:load_exe=0 -CG:movnti=1 -LNO:minvariant=off -LNO:prefetch=1 -fno-exceptions
453.povray:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast -fno-fast-math

Fortran benchmarks:

410.bwaves:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:Ofast -OPT:IEEE_arith=3 -LNO:blocking=off -LNO:ignore_feedback=off
416.gamess:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O2 -OPT:Ofast -OPT:ro=3 -OPT:unroll_size=256
434.zeusmp:	-Ofast -CG:local_fwd_sched=on -LNO:blocking=off -LNO:interchange=off -LNO:fu=10 -LNO:full_unroll_outer=on
437.leslie3d:	basepeak = yes
459.GemsFDTD:	-Ofast -LNO:fission=2 -LNO:prefetch=0
465.tonto:	basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:	-O3 -OPT:rsqrt=2 -OPT:ro=3
436.cactusADM:	-fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -LNO:prefetch=3 -LNO:prefetch_ahead=5 -LNO:ou_prod_max=10 -LNO:full_unroll=5 -ipa
454.calculix:	-Ofast -LNO:simd=0 -WOPT:mem_opnds=on
481.wrf:	basepeak = yes

Peak Other Flags

C benchmarks:

-IPA:max_jobs=2

C++ benchmarks:

-IPA:max_jobs=2

Fortran benchmarks:

-IPA:max_jobs=2

Benchmarks using both Fortran and C:

-IPA:max_jobs=2

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.13.xml.
