| CPU2006 license: | 001176 | Test date: | Jun-2007 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | May-2007 |
| Tested by: | Supermicro | Software Availability: | Apr-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon X5355 |
| CPU Characteristics: | 2.67GHz 1333MHz System Bus |
| CPU MHz: | 2667 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1, 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 X 2GB ECC PC2-5300, CL5, FBDIMM) |
| Disk Subsystem: | Seagate ST3750640AS 750GB SATA II, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition W/ SP1 |
| Compiler: | Intel C++ Compiler for IA32 version 10.0 Build 20070426 Package ID: W_CC_P_10.0.025 Microsoft Visual Studio .Net 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | None SmartHeap Library Version 8.0 from http://www.microquill.com/ |

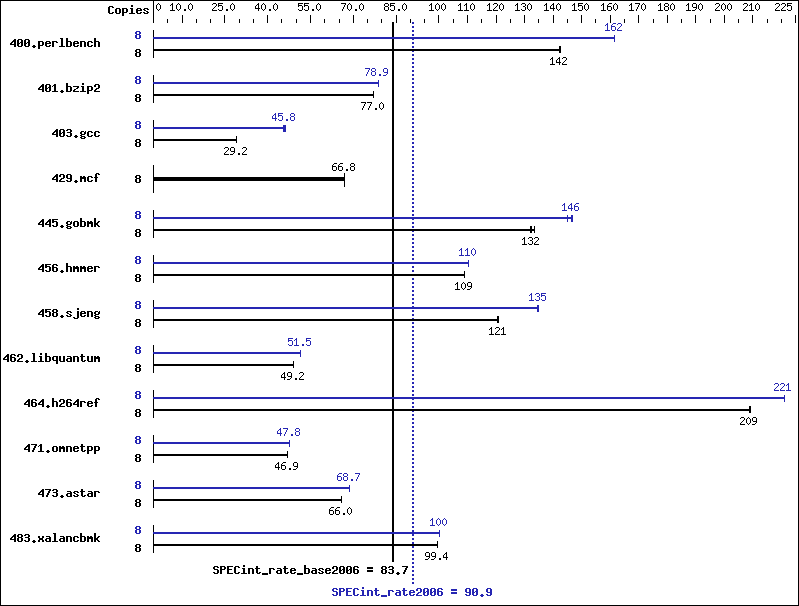

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 549 | 142 | 549 | 142 | 549 | 142 | 8 | 484 | 162 | 484 | 162 | 484 | 162 |
| 401.bzip2 | 8 | 1001 | 77.1 | 1003 | 77.0 | 1002 | 77.0 | 8 | 979 | 78.8 | 979 | 78.9 | 978 | 78.9 |
| 403.gcc | 8 | 2207 | 29.2 | 2203 | 29.2 | 2205 | 29.2 | 8 | 1406 | 45.8 | 1397 | 46.1 | 1410 | 45.7 |
| 429.mcf | 8 | 1092 | 66.8 | 1091 | 66.9 | 1092 | 66.8 | 8 | 1092 | 66.8 | 1091 | 66.9 | 1092 | 66.8 |
| 445.gobmk | 8 | 635 | 132 | 634 | 132 | 629 | 134 | 8 | 573 | 146 | 578 | 145 | 571 | 147 |
| 456.hmmer | 8 | 684 | 109 | 684 | 109 | 684 | 109 | 8 | 677 | 110 | 677 | 110 | 677 | 110 |
| 458.sjeng | 8 | 802 | 121 | 801 | 121 | 803 | 121 | 8 | 718 | 135 | 719 | 135 | 718 | 135 |
| 462.libquantum | 8 | 3370 | 49.2 | 3371 | 49.2 | 3371 | 49.2 | 8 | 3222 | 51.4 | 3217 | 51.5 | 3219 | 51.5 |
| 464.h264ref | 8 | 847 | 209 | 848 | 209 | 846 | 209 | 8 | 801 | 221 | 801 | 221 | 801 | 221 |
| 471.omnetpp | 8 | 1065 | 47.0 | 1065 | 46.9 | 1065 | 46.9 | 8 | 1047 | 47.8 | 1047 | 47.8 | 1047 | 47.8 |
| 473.astar | 8 | 851 | 66.0 | 851 | 66.0 | 851 | 66.0 | 8 | 817 | 68.7 | 818 | 68.6 | 818 | 68.7 |
| 483.xalancbmk | 8 | 555 | 99.4 | 555 | 99.4 | 555 | 99.4 | 8 | 550 | 100 | 551 | 100 | 551 | 100 |
General Notes
Tested systems can be used with CSE-825S2-R700LPV case, To ensure system stability, a 500W (minimum) ATX power supply [4-pin (+12V), 8-pin (+12V) and 24-pin are required] Product description located as of http://www.supermicro.com/products/motherboard/Xeon1333/5000P/X7DB8.cfm The system bus runs at 1333 MHz submit was used to bind processes to cores
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qprefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 403.gcc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 -link /FORCE:MULTIPLE |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxT -O2 -Qipo -Qprec_div- -Qansi-alias /F512000000 -link /FORCE:MULTIPLE |
| 456.hmmer: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qansi-alias /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 458.sjeng: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 462.libquantum: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 -Ob0 -Qprefetch -Qopt-streaming-stores:always /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
