| CPU2006 license: | 001176 | Test date: | Jun-2007 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | May-2007 |
| Tested by: | Supermicro | Software Availability: | May-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core 2 Extreme QX6700 |
| CPU Characteristics: | 2.66GHz 1066 MHz System Bus |
| CPU MHz: | 2660 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (4 X 2GB ECC PC2-5300, CL5, DDR2) |
| Disk Subsystem: | 250GB SATA, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition W/ SP1 |
| Compiler: | Intel C++ Compiler for IA32 version 10.0 Build 20070426 Package ID: W_CC_P_10.0.025 Microsoft Visual Studio .Net 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.0 from http://www.microquill.com/ |

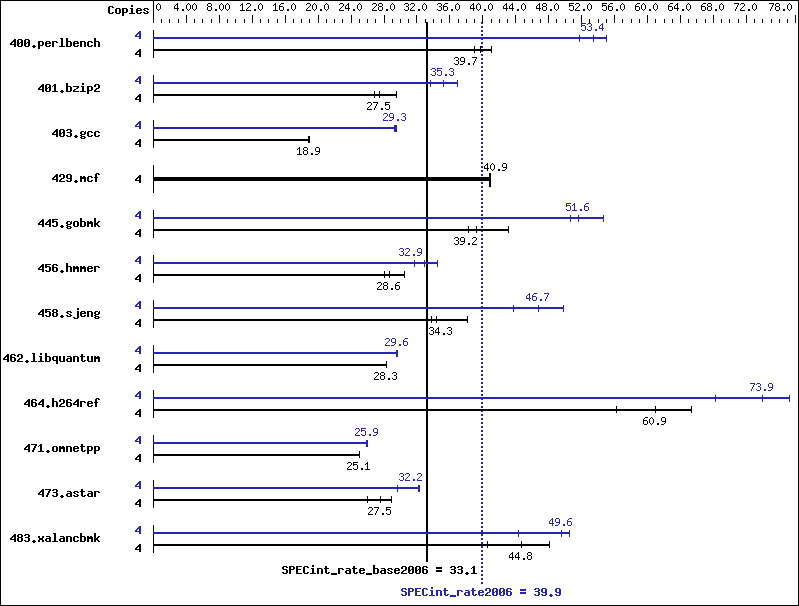

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 985 | 39.7 | 1002 | 39.0 | 951 | 41.1 | 4 | 756 | 51.7 | 710 | 55.1 | 731 | 53.4 |
| 401.bzip2 | 4 | 1404 | 27.5 | 1441 | 26.8 | 1307 | 29.5 | 4 | 1149 | 33.6 | 1044 | 37.0 | 1095 | 35.3 |
| 403.gcc | 4 | 1705 | 18.9 | 1708 | 18.8 | 1698 | 19.0 | 4 | 1097 | 29.3 | 1093 | 29.5 | 1101 | 29.2 |
| 429.mcf | 4 | 893 | 40.9 | 892 | 40.9 | 891 | 40.9 | 4 | 893 | 40.9 | 892 | 40.9 | 891 | 40.9 |
| 445.gobmk | 4 | 1097 | 38.2 | 1070 | 39.2 | 974 | 43.1 | 4 | 813 | 51.6 | 768 | 54.6 | 828 | 50.7 |
| 456.hmmer | 4 | 1303 | 28.6 | 1330 | 28.1 | 1225 | 30.5 | 4 | 1136 | 32.9 | 1084 | 34.4 | 1178 | 31.7 |
| 458.sjeng | 4 | 1411 | 34.3 | 1433 | 33.8 | 1270 | 38.1 | 4 | 1036 | 46.7 | 972 | 49.8 | 1106 | 43.8 |
| 462.libquantum | 4 | 2927 | 28.3 | 2928 | 28.3 | 2929 | 28.3 | 4 | 2800 | 29.6 | 2811 | 29.5 | 2801 | 29.6 |
| 464.h264ref | 4 | 1576 | 56.2 | 1453 | 60.9 | 1356 | 65.3 | 4 | 1197 | 73.9 | 1146 | 77.3 | 1298 | 68.2 |
| 471.omnetpp | 4 | 997 | 25.1 | 999 | 25.0 | 997 | 25.1 | 4 | 964 | 25.9 | 960 | 26.0 | 964 | 25.9 |
| 473.astar | 4 | 1078 | 26.0 | 1020 | 27.5 | 971 | 28.9 | 4 | 872 | 32.2 | 870 | 32.3 | 947 | 29.6 |
| 483.xalancbmk | 4 | 680 | 40.6 | 617 | 44.8 | 574 | 48.1 | 4 | 546 | 50.6 | 557 | 49.6 | 622 | 44.3 |
General Notes
Tested systems can be used with CSE-733T-450 case, Product description located as of http://www.supermicro.com/products/motherboard/Xeon3000/3000/PDSMA+.cfm The system bus runs at 1066 MHz "start /b /wait /affinity" used to bind processes to CPUs.
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qprefetch /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 403.gcc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 -link /FORCE:MULTIPLE |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxT -O2 -Qipo -Qprec_div- -Qansi-alias /F512000000 -link /FORCE:MULTIPLE |
| 456.hmmer: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll2 -Qansi-alias /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 458.sjeng: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 462.libquantum: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qunroll4 -Ob0 -Qprefetch -Qopt-streaming-stores:always /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 464.h264ref: | Same as 456.hmmer |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qansi-alias -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
