SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM System p 570 (4.7 GHz, 8 core, SLES)

CPU2006 license: 11 Test date: Jun-2007
Test sponsor: IBM Corporation Hardware Availability: Jun-2007
Tested by: IBM Corporation Software Availability: Sep-2007

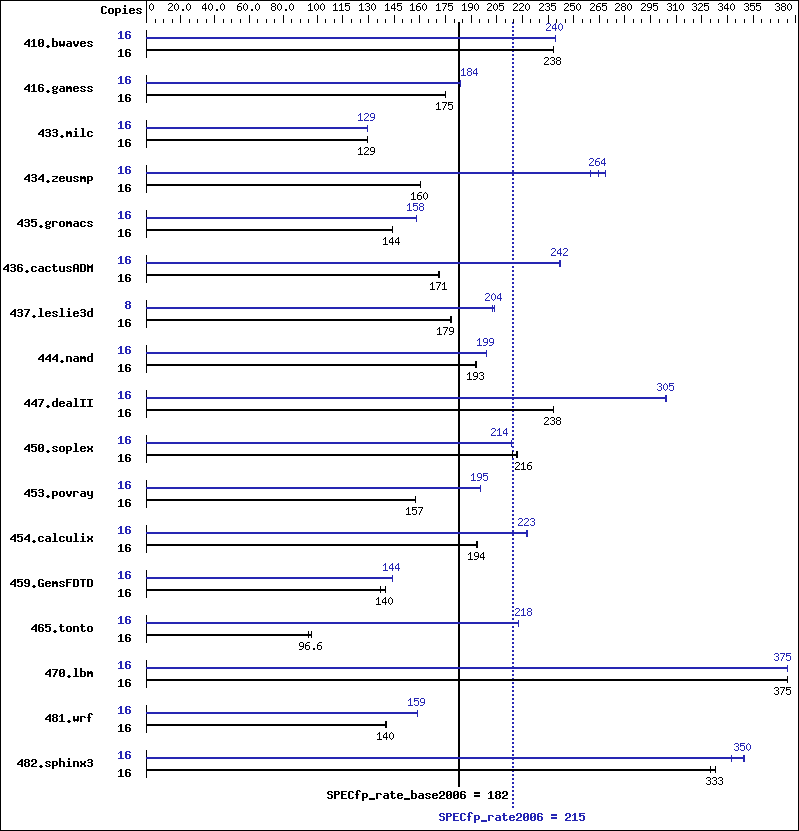

Benchmark results graph
Hardware
CPU Name: POWER6
CPU Characteristics:
CPU MHz: 4700
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 2,4,8,12,16 cores
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per core
L3 Cache: 32 MB I+D off chip per chip
Other Cache: None
Memory: 64 GB (32x2 GB) DDR2 667 MHz
Disk Subsystem: 2x73 GB SAS 15K RPM
Other Hardware: None
Software
Operating System: SUSE Linux Enterprise 10 SP1
Compiler: IBM XL C/C++ Advanced Edition for Linux, V9.0
IBM XL Fortran Advanced Edition for Linux, V11.1
Auto Parallel: No
File System: ReiserFS
System State: Multi-User
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: -Post-Link Optimization for Linux on
POWER, Version 5.4.0
-MicroQuill SmartHeap 7.3
-Engineering and Scientific Subroutine
Library for Linux on POWER, Version 4.3

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 16 913 238   913 238   914 238   16 908 239 907 240 908 240
416.gamess 16 1789 175   1788 175   1788 175   16 1706 184 1706 184 1705 184
433.milc 16 1138 129   1138 129   1138 129   16 1138 129 1138 129 1138 129
434.zeusmp 16 909 160   907 160   908 160   16 542 269 560 260 551 264
435.gromacs 16 792 144   792 144   792 144   16 723 158 724 158 723 158
436.cactusADM 16 1115 172   1115 171   1117 171   16 790 242 790 242 790 242
437.leslie3d 16 842 179   844 178   842 179   8 369 204 369 204 371 203
444.namd 16 664 193   664 193   666 193   16 645 199 645 199 645 199
447.dealII 16 768 238   769 238   768 238   16 601 305 601 305 603 304
450.soplex 16 623 214   617 216   615 217   16 625 214 625 214 624 214
453.povray 16 541 157   541 157   541 157   16 436 195 435 196 435 195
454.calculix 16 683 193   680 194   682 194   16 591 223 593 223 591 223
459.GemsFDTD 16 1238 137   1214 140   1215 140   16 1178 144 1177 144 1178 144
465.tonto 16 1659 94.9 1630 96.6 1629 96.7 16 723 218 723 218 723 218
470.lbm 16 586 375   586 375   586 375   16 586 375 586 375 586 375
481.wrf 16 1274 140   1276 140   1274 140   16 1127 159 1128 158 1127 159
482.sphinx3 16 936 333   945 330   936 333   16 890 350 911 342 892 350

General Notes

 kernel release 2.6.16.46-0.12-ppc64.

 See flags file for details on following settings.

 ulimit -s (stack) set to unlimited.


 System set to Enhanced mode when defining partition on HMC

 Large pages reserved as follows by root user:
     echo 1600 > /proc/sys/vm/nr_hugepages
 System configured with libhugetlbfs library for application access to large pages
 Environment variables set before executing benchmarks.
     export HUGETLB_VERBOSE=0
     export HUGETLB_MORECORE=yes
     export HUGETLB_MORECORE_HEAPBASE=0x50000000
     export XLFRTEOPTS=intrinthds=1

 fdpr binary optimization tool used for
     435.gromacs 436.cactusADM 482.sphinx3

 Benchmarks bound to a processor using taskset on the submit command.

Base Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Fortran benchmarks:

 xlf95

Benchmarks using both Fortran and C:

 xlc   -qlanglvl=extc99   xlf95

Base Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Base Optimization Flags

C benchmarks:

 -O5   -qnoenablevmx   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT

C++ benchmarks:

 -O5   -qrtti   -qnoenablevmx   -lhugetlbfs

Fortran benchmarks:

 -O5   -qsmallstack=dynlenonheap   -qalias=nostd   -qnoenablevmx   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT

Benchmarks using both Fortran and C:

 -O5   -qnoenablevmx   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT   -qsmallstack=dynlenonheap   -qalias=nostd

Base Other Flags

C benchmarks:

 -qipa=noobject   -qipa=threads

C++ benchmarks:

 -qipa=noobject   -qipa=threads

Fortran benchmarks:

 -qipa=noobject   -qipa=threads

Benchmarks using both Fortran and C:

 -qipa=noobject   -qipa=threads

Peak Compiler Invocation

C benchmarks:

 xlc   -qlanglvl=extc99

C++ benchmarks:

 xlC

Fortran benchmarks:

 xlf95

Benchmarks using both Fortran and C:

 xlc   -qlanglvl=extc99   xlf95

Peak Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Peak Optimization Flags

C benchmarks:

433.milc:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qnoenablevmx   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT
470.lbm:  -O3   -qarch=pwr6e   -qtune=pwr6   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT   -q64
482.sphinx3:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -lhugetlbfs

C++ benchmarks:

444.namd:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=pwr6e   -qtune=pwr6
447.dealII:  -O5   -qrtti   -qnoenablevmx   -qstaticlink   -Wl,--whole-archive /usr/lib/libhugetlbfs.a   -Wl,--no-whole-archive
450.soplex:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qstrict   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT
453.povray:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -lsmartheap

Fortran benchmarks:

410.bwaves:  -O5   -qsmallstack=dynlenonheap   -lhugetlbfs
416.gamess:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qalias=nostd   -qnoenablevmx
434.zeusmp:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O3   -qarch=pwr6e   -qtune=pwr6   -qxlf90=nosignedzero   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT
437.leslie3d:  -O3   -qarch=pwr6e   -qtune=pwr6   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT   -q64
459.GemsFDTD:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT   -q64
465.tonto:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -lessl   -lhugetlbfs   -lxlf90_r

Benchmarks using both Fortran and C:

435.gromacs:  -Wl,-q   -O2   -qarch=pwr6e   -qtune=pwr6   -lhugetlbfs
436.cactusADM:  -Wl,-q   -qpdf1(pass 1)   -qpdf2(pass 2)   -O2   -qarch=pwr6e   -qtune=pwr6   -lhugetlbfs
454.calculix:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -B/usr/share/libhugetlbfs/   -tl   -Wl,--hugetlbfs-link=BDT
481.wrf:  -O5   -qnoenablevmx   -qalias=nostd   -lhugetlbfs

Peak Other Flags

C benchmarks:

 -qipa=noobject   -qipa=threads

C++ benchmarks:

 -qipa=noobject   -qipa=threads

Fortran benchmarks:

 -qipa=noobject   -qipa=threads

Benchmarks using both Fortran and C:

 -qipa=noobject   -qipa=threads

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/lop-xl-flags.20090714.01.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/lop-xl-flags.20090714.01.xml.
