CPU2006 license: | 001176 | Test date: | Apr-2007 |
---|---|---|---|
Test sponsor: | Supermicro | Hardware Availability: | May-2007 |
Tested by: | Supermicro | Software Availability: | Apr-2007 |
Hardware | |
---|---|
CPU Name: | Intel Xeon L5310 |
CPU Characteristics: | 1.60GHz, 1066 MHz Bus |
CPU MHz: | 1600 |
FPU: | Integrated |
CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
CPU(s) orderable: | 1, 2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
L3 Cache: | None |
Other Cache: | None |
Memory: | 16 GB (8 X 2GB ECC PC2-5300, CL5, FBDIMM) |
Disk Subsystem: | 750GB IDE, 7200RPM |
Other Hardware: | None |
Software | |
---|---|
Operating System: | Windows Server 2003 Enterprise Edition W/ SP1 |
Compiler: | Intel C++ Compiler for IA32 version 9.1 Build no 20070322Z Intel Fortran Compiler for IA32 version 9.1 Build no 20070322Z Microsoft Visual Studio .Net 2003 (for libraries) |
Auto Parallel: | Yes |
File System: | NTFS |
System State: | Default |
Base Pointers: | 32-bit |
Peak Pointers: | 32-bit |
Other Software: | SmartHeap Library Version 8.0 |

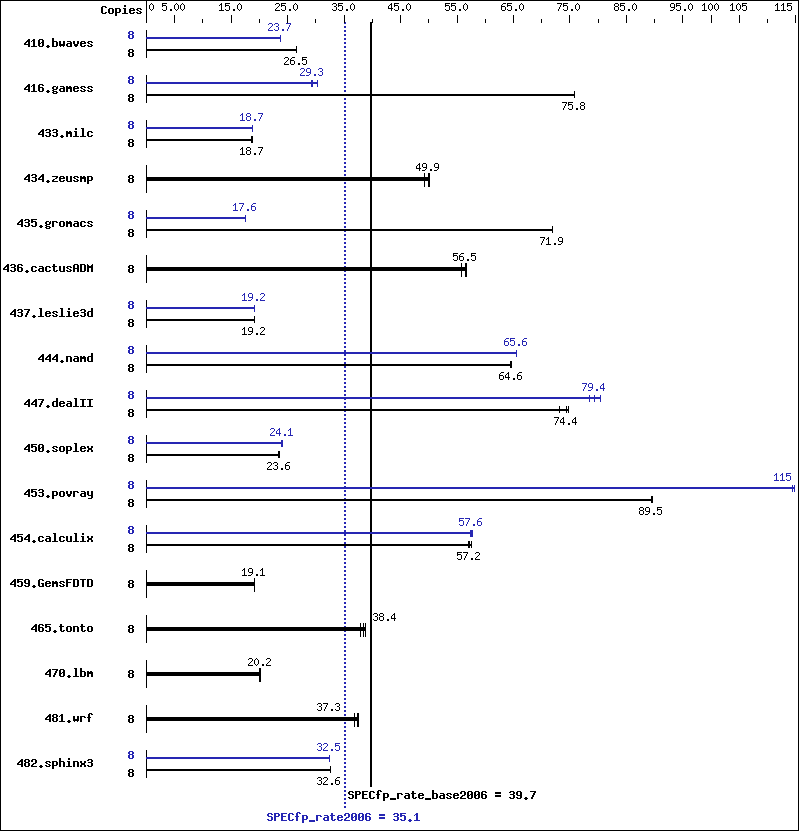

Benchmark | Base | Peak | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
410.bwaves | 8 | 4096 | 26.5 | 4099 | 26.5 | 4098 | 26.5 | 8 | 4593 | 23.7 | 4583 | 23.7 | 4585 | 23.7 |
416.gamess | 8 | 2065 | 75.8 | 2065 | 75.9 | 2066 | 75.8 | 8 | 5182 | 30.2 | 5350 | 29.3 | 5339 | 29.3 |
433.milc | 8 | 3924 | 18.7 | 3930 | 18.7 | 3929 | 18.7 | 8 | 3924 | 18.7 | 3922 | 18.7 | 3921 | 18.7 |
434.zeusmp | 8 | 1459 | 49.9 | 1455 | 50.0 | 1477 | 49.3 | 8 | 1459 | 49.9 | 1455 | 50.0 | 1477 | 49.3 |
435.gromacs | 8 | 794 | 71.9 | 794 | 72.0 | 794 | 71.9 | 8 | 3250 | 17.6 | 3250 | 17.6 | 3266 | 17.5 |
436.cactusADM | 8 | 1716 | 55.7 | 1688 | 56.6 | 1691 | 56.5 | 8 | 1716 | 55.7 | 1688 | 56.6 | 1691 | 56.5 |
437.leslie3d | 8 | 3923 | 19.2 | 3915 | 19.2 | 3917 | 19.2 | 8 | 3915 | 19.2 | 3917 | 19.2 | 3917 | 19.2 |
444.namd | 8 | 994 | 64.5 | 993 | 64.6 | 994 | 64.6 | 8 | 979 | 65.6 | 979 | 65.6 | 979 | 65.5 |
447.dealII | 8 | 1251 | 73.2 | 1226 | 74.7 | 1231 | 74.4 | 8 | 1166 | 78.5 | 1153 | 79.4 | 1138 | 80.5 |
450.soplex | 8 | 2857 | 23.4 | 2833 | 23.6 | 2832 | 23.6 | 8 | 2790 | 23.9 | 2771 | 24.1 | 2767 | 24.1 |
453.povray | 8 | 476 | 89.4 | 475 | 89.6 | 475 | 89.5 | 8 | 372 | 114 | 371 | 115 | 371 | 115 |
454.calculix | 8 | 1156 | 57.1 | 1153 | 57.2 | 1147 | 57.5 | 8 | 1147 | 57.6 | 1142 | 57.8 | 1149 | 57.4 |
459.GemsFDTD | 8 | 4446 | 19.1 | 4437 | 19.1 | 4436 | 19.1 | 8 | 4446 | 19.1 | 4437 | 19.1 | 4436 | 19.1 |
465.tonto | 8 | 2074 | 38.0 | 2049 | 38.4 | 2033 | 38.7 | 8 | 2074 | 38.0 | 2049 | 38.4 | 2033 | 38.7 |
470.lbm | 8 | 5512 | 19.9 | 5436 | 20.2 | 5444 | 20.2 | 8 | 5512 | 19.9 | 5436 | 20.2 | 5444 | 20.2 |
481.wrf | 8 | 2421 | 36.9 | 2393 | 37.3 | 2376 | 37.6 | 8 | 2421 | 36.9 | 2393 | 37.3 | 2376 | 37.6 |
482.sphinx3 | 8 | 4789 | 32.6 | 4783 | 32.6 | 4793 | 32.5 | 8 | 4804 | 32.5 | 4803 | 32.5 | 4799 | 32.5 |
Tested systems can be used with CSE-833S-R760 case, To ensure system stability, a 500W (minimum) ATX power supply [4-pin (+12V), 8-pin (+12V) and 24-pin are required] Product description located as of http://www.supermicro.com/products/motherboard/Xeon1333/5000X/X7DA8+.cfm The system bus runs at 1066 MHz
icl -Qvc7.1 -Qc99 |
icl -Qvc7.1 |
ifort |
icl -Qvc7.1 -Qc99 ifort |
436.cactusADM: | -Qlowercase /assume:underscore |
444.namd: | -TP |
447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
453.povray: | -DSPEC_CPU_WINDOWS_ICL |
454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
-fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
-fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
-fast /F950000000 -link /FORCE:MULTIPLE |
-fast /F950000000 -link /FORCE:MULTIPLE |
icl -Qvc7.1 -Qc99 |
icl -Qvc7.1 |
ifort |
icl -Qvc7.1 -Qc99 ifort |
436.cactusADM: | -Qlowercase /assume:underscore |
444.namd: | -TP |
447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
453.povray: | -DSPEC_CPU_WINDOWS_ICL |
454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
433.milc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
470.lbm: | basepeak = yes |
482.sphinx3: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxB -Qipo -O3 -Qprec-div- /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
-Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
410.bwaves: | -QxW -Qparallel -Qipo -O3 -Qprec-div- /F950000000 libguide.lib libguide40.lib -link /FORCE:MULTIPLE |
416.gamess: | Same as 410.bwaves |
434.zeusmp: | basepeak = yes |
437.leslie3d: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
459.GemsFDTD: | basepeak = yes |
465.tonto: | basepeak = yes |
435.gromacs: | -QxW -Qparallel -Qipo -O3 -Qprec-div- /F950000000 shlw32m.lib libguide.lib libguide40.lib -link /FORCE:MULTIPLE |
436.cactusADM: | basepeak = yes |
454.calculix: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
481.wrf: | basepeak = yes |
