SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY RX330 S1, AMD Opteron 2212, 2.0 GHz

CPU2006 license: 22 Test date: May-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: May-2007
Tested by: Fujitsu Siemens Computers Software Availability: Mar-2007

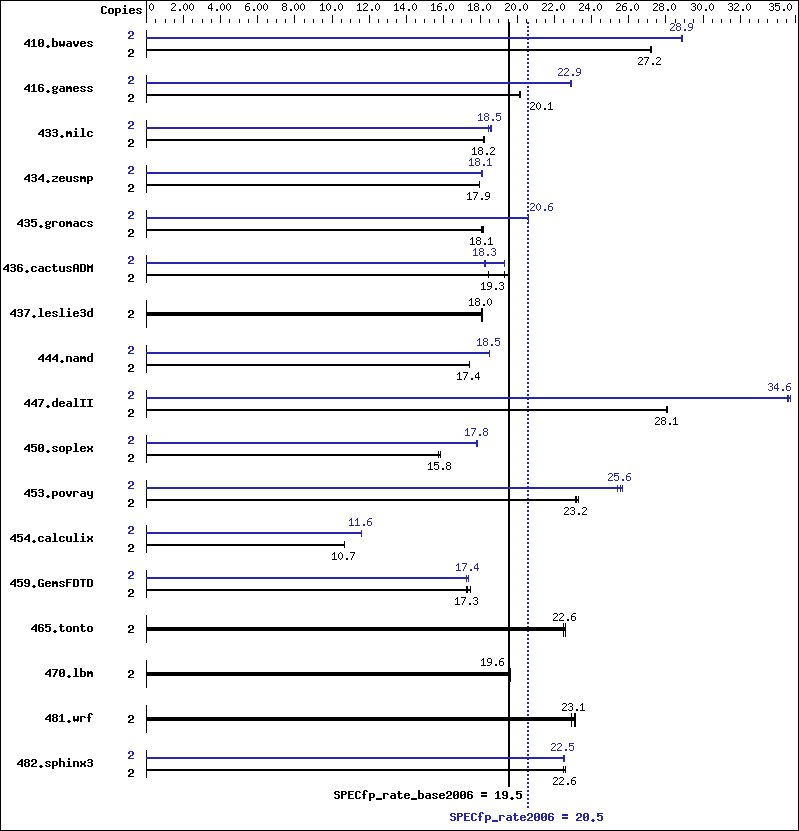

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2212
CPU Characteristics: 2212
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 2 cores, 1 chip, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 32 GB (8x4 GB DDR2 PC2-5300P, 2 rank, CAS 5-5-5,
with ECC)
Disk Subsystem: SAS (36GB 15.4 krpm)
Other Hardware: None
Software
Operating System: SLES 10 for AMD64/EM64T
Compiler: QLogic PathScale Compiler Suite,
- Release 3.0
Auto Parallel: No
File System: ReiserFS
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 2 997 27.3 1001 27.2 1000 27.2 2 942 28.8 940 28.9 941 28.9
416.gamess 2 1948 20.1 1946 20.1 1944 20.1 2 1713 22.9 1710 22.9 1713 22.9
433.milc 2 1008 18.2 1010 18.2 1007 18.2 2 987 18.6 995 18.5 991 18.5
434.zeusmp 2 1015 17.9 1014 17.9 1015 17.9 2 1004 18.1 1008 18.1 1007 18.1
435.gromacs 2 791 18.1 787 18.1 788 18.1 2 694 20.6 693 20.6 693 20.6
436.cactusADM 2 1226 19.5 1297 18.4 1237 19.3 2 1308 18.3 1238 19.3 1312 18.2
437.leslie3d 2 1037 18.1 1042 18.0 1042 18.0 2 1037 18.1 1042 18.0 1042 18.0
444.namd 2 920 17.4 920 17.4 920 17.4 2 869 18.5 868 18.5 868 18.5
447.dealII 2 815 28.1 815 28.1 816 28.1 2 661 34.6 662 34.6 659 34.7
450.soplex 2 1054 15.8 1053 15.8 1059 15.8 2 934 17.9 935 17.8 938 17.8
453.povray 2 457 23.3 460 23.1 459 23.2 2 419 25.4 414 25.7 416 25.6
454.calculix 2 1543 10.7 1543 10.7 1543 10.7 2 1426 11.6 1426 11.6 1425 11.6
459.GemsFDTD 2 1226 17.3 1231 17.2 1213 17.5 2 1222 17.4 1231 17.2 1223 17.4
465.tonto 2 870 22.6 870 22.6 874 22.5 2 870 22.6 870 22.6 874 22.5
470.lbm 2 1403 19.6 1401 19.6 1406 19.5 2 1403 19.6 1401 19.6 1406 19.5
481.wrf 2 974 22.9 967 23.1 968 23.1 2 974 22.9 967 23.1 968 23.1
482.sphinx3 2 1736 22.5 1725 22.6 1727 22.6 2 1728 22.6 1733 22.5 1735 22.5

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' has been used to bind processes to CPUs

General Notes


 BIOS settings:
 Node Interleave = disabled

 For information about Fujitsu Siemens Computers in your country please see:
 http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Ofast

C++ benchmarks:

 -Ofast

Fortran benchmarks:

 -Ofast   -OPT:malloc_alg=1

Benchmarks using both Fortran and C:

 -Ofast   -OPT:malloc_alg=1

Base Other Flags

C benchmarks:

 -IPA:max_jobs=4

C++ benchmarks:

 -IPA:max_jobs=4

Fortran benchmarks:

 -IPA:max_jobs=4

Benchmarks using both Fortran and C:

 -IPA:max_jobs=4

Peak Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

433.milc:  -Ofast   -CG:cflow=off   -LNO:prefetch=1   -OPT:malloc_alg=1
470.lbm:  basepeak = yes
482.sphinx3:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:Ofast   -WOPT:aggstr=0   -m32

C++ benchmarks:

444.namd:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-exceptions
447.dealII:  -Ofast   -static   -INLINE:aggressive=on   -OPT:malloc_alg=1   -m32   -fno-exceptions
450.soplex:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:IEEE_arith=3   -CG:load_exe=0   -CG:movnti=1   -LNO:minvariant=off   -LNO:prefetch=1   -fno-exceptions
453.povray:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-fast-math

Fortran benchmarks:

410.bwaves:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:Ofast   -OPT:IEEE_arith=3   -LNO:blocking=off   -LNO:ignore_feedback=off
416.gamess:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256
434.zeusmp:  -Ofast   -CG:local_fwd_sched=on   -LNO:blocking=off   -LNO:interchange=off   -LNO:fu=10   -LNO:full_unroll_outer=on
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -Ofast   -LNO:fission=2   -LNO:prefetch=0
465.tonto:  basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:  -O3   -OPT:rsqrt=2   -OPT:ro=3
436.cactusADM:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:prefetch=3   -LNO:prefetch_ahead=5   -LNO:ou_prod_max=10   -LNO:full_unroll=5   -ipa
454.calculix:  -Ofast   -LNO:simd=0   -WOPT:mem_opnds=on
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -IPA:max_jobs=4

C++ benchmarks:

 -IPA:max_jobs=4

Fortran benchmarks:

 -IPA:max_jobs=4

Benchmarks using both Fortran and C:

 -IPA:max_jobs=4

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.10.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.10.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2016 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Sep 13 11:21:32 2016 by SPEC CPU2006 HTML formatter v6932.
Originally published on 12 June 2007.
