SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Intel Corporation

Supermicro X7DB8+ (Intel Xeon processor 5160,
3.00 GHz)

CPU2006 license: 13 Test date: May-2007
Test sponsor: Intel Corporation Hardware Availability: Nov-2006
Tested by: Intel Corporation Software Availability: Jun-2007

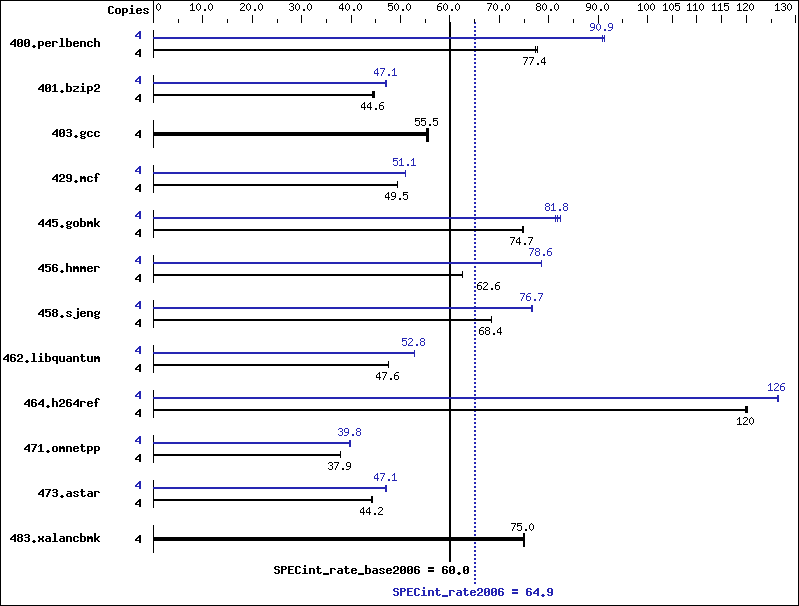

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5160
CPU Characteristics: Dual Core, 3.0 GHz
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 * 2GB Samsung DDR2 5300F, 2 rank,
CL5-5-5, ECC)
Disk Subsystem: Seagate, SCSI, 73GB, 10Krpm, 1 disk only
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp for x86_64
Compiler: Intel C++ Compiler for Linux32 version 10.0
Build 20070426 Package ID: l_cc_p_10.0.023
Auto Parallel: No
File System: ReiserFS
System State: Multi-user, run level 3
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap library V8.1
Binutils 2.17.50.0.15

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 505 77.4 503 77.6 506 77.2 4 430 90.9 428 91.3 430 90.9
401.bzip2 4 871 44.3 865 44.6 865 44.6 4 819 47.1 819 47.2 821 47.0
403.gcc 4 577 55.8 584 55.2 580 55.5 4 577 55.8 584 55.2 580 55.5
429.mcf 4 737 49.5 739 49.3 737 49.5 4 716 51.0 714 51.1 715 51.1
445.gobmk 4 562 74.7 560 75.0 562 74.7 4 509 82.4 516 81.3 513 81.8
456.hmmer 4 596 62.6 597 62.6 597 62.5 4 476 78.5 475 78.6 475 78.6
458.sjeng 4 706 68.5 708 68.3 708 68.4 4 631 76.8 631 76.7 633 76.4
462.libquantum 4 1745 47.5 1743 47.6 1741 47.6 4 1570 52.8 1570 52.8 1570 52.8
464.h264ref 4 738 120   736 120   737 120   4 700 126   700 126   700 126
471.omnetpp 4 659 37.9 659 37.9 659 37.9 4 628 39.8 629 39.8 627 39.8
473.astar 4 635 44.2 635 44.2 633 44.4 4 597 47.1 598 46.9 594 47.2
483.xalancbmk 4 368 75.0 368 75.0 368 75.0 4 368 75.0 368 75.0 368 75.0

General Notes

Bios settings:
Hardware Prefetcher:      Enabled
Adjacent Sector Prefetch: Disabled
All benchmarks compiled in 32-bit mode except 401.bzip2 and 456.hmmer,
for peak, are compiled in 64-bit mode
taskset was used to bind processes to cores

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -xT   -ipo   -O3   -no-prec-div   -Wl,-z,muldefs   -L/spec/cpu2006.1.0/lib -lsmartheap

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks (except as noted below):

 icc
401.bzip2:  /opt/intel/cce/10.0.023/bin/icc
456.hmmer:  /opt/intel/cce/10.0.023/bin/icc

C++ benchmarks:

 icpc

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LINUX_IA32
401.bzip2:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LINUX
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -ansi-alias   -prefetch
401.bzip2:  -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include   -prof-gen(pass 1)   -prof-use(pass 2)   -fast
403.gcc:  basepeak = yes
429.mcf:  -fast   -prefetch
445.gobmk:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O2   -ipo   -no-prec_div   -ansi-alias
456.hmmer:  -L/opt/intel/cce/10.0.023/lib -I/opt/intel/cce/10.0.023/include   -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias
458.sjeng:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4
462.libquantum:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll4   -Ob0   -prefetch   -opt-streaming-stores always
464.h264ref:  -prof-gen(pass 1)   -prof-use(pass 2)   -fast   -unroll2   -ansi-alias

C++ benchmarks:

471.omnetpp:  -prof-gen(pass 1)   -prof-use(pass 2)   -xT   -O3   -ipo   -no-prec_div   -ansi-alias   -Wl,-z,muldefs   -L/spec/cpu2006.1.0/lib -lsmartheap
473.astar:  Same as 471.omnetpp
483.xalancbmk:  basepeak = yes

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090715.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic10-ia32-intel64-linux-flags.20090715.xml.
