SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale R440
(Intel Xeon processor 5160,3.00GHz)

SPECfp®2006 = 15.6

CPU2006 license: 20 Test date: May-2007
Test sponsor: Bull SAS Hardware Availability: Mar-2007
Tested by: Bull SAS Software Availability: Dec-2006

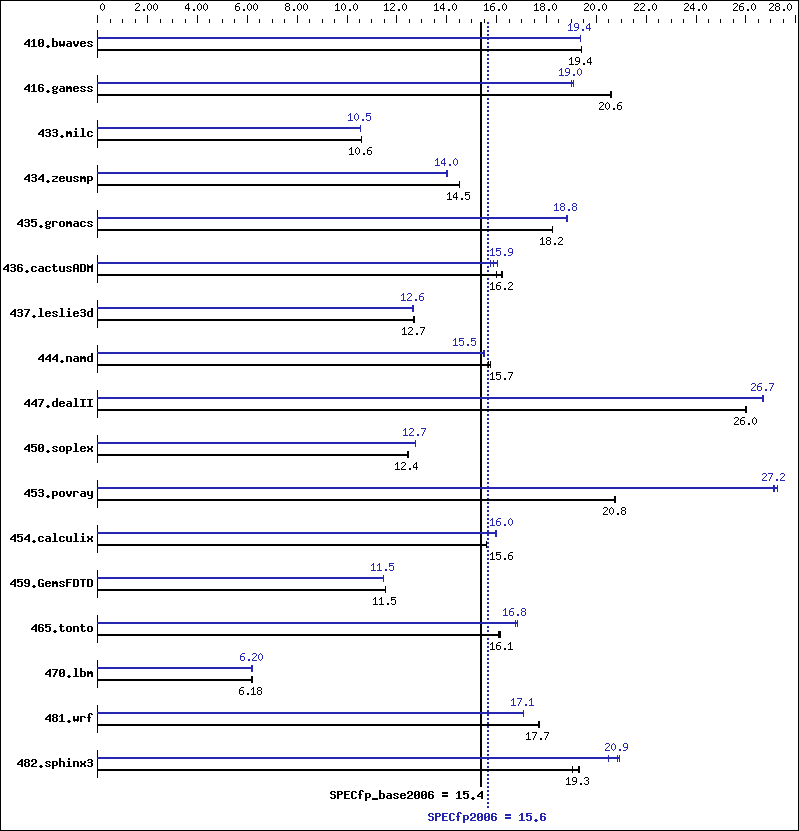

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5160
CPU Characteristics: 3.00 GHz, 4 MB L2, 1333 MHz system bus
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 1 core, 1 chip, 2 cores/chip
CPU(s) orderable: 1 to 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 24 GB (12x2 GB) FB-DIMM PC2-5300F ECC CL5
Disk Subsystem: 1x73 GB SAS, 15000 RPM
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (EM64T)
kernel 2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler for Intel EM64T-based
applications, Version 9.1
Package ID l_cc_c_9.1.045 Build no 20061101
Intel Fortran Compiler for Intel EM64T-based
applications, Version 9.1
Package ID l_fc_c_9.1.040 Build no 20061101
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 701 19.4  701 19.4  701 19.4  701 19.4  701 19.4  701 19.4
416.gamess 949 20.6  950 20.6  951 20.6  1030 19.0  1030 19.0  1027 19.1
433.milc 869 10.6  868 10.6  868 10.6  872 10.5  872 10.5  872 10.5
434.zeusmp 627 14.5  627 14.5  627 14.5  649 14.0  649 14.0  650 14.0
435.gromacs 391 18.3  391 18.2  392 18.2  380 18.8  379 18.8  379 18.9
436.cactusADM 735 16.3  737 16.2  748 16.0  759 15.8  752 15.9  746 16.0
437.leslie3d 741 12.7  741 12.7  740 12.7  741 12.7  743 12.6  745 12.6
444.namd 509 15.8  509 15.7  511 15.7  518 15.5  518 15.5  518 15.5
447.dealII 439 26.0  440 26.0  440 26.0  429 26.7  428 26.7  428 26.7
450.soplex 671 12.4  671 12.4  670 12.4  654 12.7  654 12.7  654 12.7
453.povray 256 20.8  256 20.7  256 20.8  196 27.2  196 27.1  195 27.3
454.calculix 529 15.6  529 15.6  529 15.6  516 16.0  517 16.0  517 16.0
459.GemsFDTD 921 11.5  920 11.5  919 11.5  926 11.5  925 11.5  925 11.5
465.tonto 609 16.2  610 16.1  613 16.1  585 16.8  587 16.8  587 16.8
470.lbm 2216 6.20 2230 6.16 2224 6.18 2214 6.21 2218 6.20 2222 6.18
481.wrf 631 17.7  631 17.7  632 17.7  653 17.1  655 17.1  653 17.1
482.sphinx3 1009 19.3  1023 19.1  1012 19.3  932 20.9  934 20.9  951 20.5

Operating System Notes

 Environment stack size set to 'unlimited'

 system was booted uniprocessor by setting "maxcpus=0"
 kernel parameter in menu.lst

 /usr/bin/taskset utility used to bind CPU(s) to processes

General Notes

    The NovaScale R440 and the NovaScale R460 models are
    electronically equivalent.
    The results have been measured on a NovaScale R460 model.

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

C++ benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

Fortran benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/EM64T_Intel91_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/EM64T_Intel91_flags.xml.
