SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

PRIMERGY TX600 S3, Intel Xeon processor 7130M,
3.20 GHz

CPU2006 license: 22 Test date: May-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Aug-2006
Tested by: Fujitsu Siemens Computers Software Availability: Feb-2007

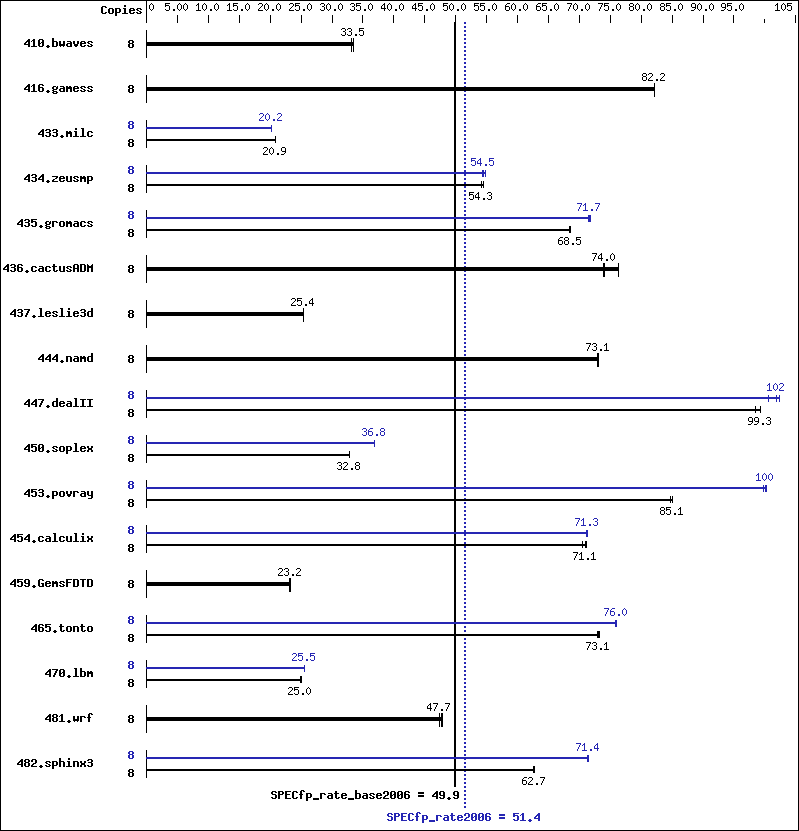

Benchmark results graph
Hardware
CPU Name: Intel Xeon 7130M
CPU Characteristics: 800 MHz system bus
CPU MHz: 3200
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip
CPU(s) orderable: 1,2,4 chips
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (16x2 GB DDR2 PC2-3200R, 2 rank, CAS 3-3-3,
with ECC)
Disk Subsystem: Seagate ST973401SS (SAS 73GB 10 krpm)
Other Hardware: None
Software
Operating System: 64-Bit SUSE LINUX Enterprise Server 10, Kernel
2.6.16.21-0.8-smp on an x86_64
Compiler: Intel C++ Compiler for IA32/EM64T application,
Version 9.1 - Build 20070215, Package-ID:
l_cc_p_9.1.047
Intel Fortran Compiler for IA32/EM64T application,
Version 9.1 - Build 20070215, Package ID:
l_fc_p_9.1.043
Auto Parallel: No
File System: ReiserFS
System State: Multiuser Runlevel 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 3247 33.5 3277 33.2 3247 33.5 8 3247 33.5 3277 33.2 3247 33.5
416.gamess 8 1907 82.1 1905 82.2 1906 82.2 8 1907 82.1 1905 82.2 1906 82.2
433.milc 8 3516 20.9 3515 20.9 3508 20.9 8 3638 20.2 3635 20.2 3639 20.2
434.zeusmp 8 1342 54.3 1342 54.3 1334 54.6 8 1341 54.3 1327 54.9 1336 54.5
435.gromacs 8 835 68.4 833 68.6 834 68.5 8 796 71.8 799 71.5 797 71.7
436.cactusADM 8 1292 74.0 1292 74.0 1252 76.4 8 1292 74.0 1292 74.0 1252 76.4
437.leslie3d 8 2957 25.4 2957 25.4 2956 25.4 8 2957 25.4 2957 25.4 2956 25.4
444.namd 8 877 73.2 878 73.1 879 73.0 8 877 73.2 878 73.1 879 73.0
447.dealII 8 922 99.3 929 98.6 922 99.3 8 894 102   909 101   898 102
450.soplex 8 2034 32.8 2029 32.9 2031 32.8 8 1813 36.8 1811 36.8 1810 36.9
453.povray 8 500 85.1 502 84.7 500 85.1 8 426 99.9 425 100   425 100
454.calculix 8 928 71.1 935 70.6 929 71.1 8 925 71.3 927 71.2 926 71.3
459.GemsFDTD 8 3657 23.2 3661 23.2 3654 23.2 8 3657 23.2 3661 23.2 3654 23.2
465.tonto 8 1074 73.3 1076 73.1 1079 73.0 8 1037 75.9 1036 76.0 1035 76.0
470.lbm 8 4403 25.0 4413 24.9 4371 25.1 8 4306 25.5 4303 25.5 4306 25.5
481.wrf 8 1875 47.7 1864 47.9 1883 47.4 8 1875 47.7 1864 47.9 1883 47.4
482.sphinx3 8 2488 62.7 2490 62.6 2487 62.7 8 2183 71.4 2187 71.3 2181 71.5

Operating System Notes

 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run
 '/usr/bin/taskset' used to bind processes to CPUs

General Notes


 The system bus runs at 800 MHz

 All binaries were built with 64-bit Intel compiler except:
 433.milc, 434.zeusmp, 450.soplex, 470.lbm and 482.sphinx3 in peak were built with
 32-bit Intel compiler by changing the path for include and library files.

 BIOS configuration:
 Hyper-Threading Technology = Disable
 Hardware Prefetch = Enable
 Adjacent Sector Prefetch = Enable

 This result was measured on the PRIMERGY RX600 S3. The PRIMERGY RX600 S3 and
 the PRIMERGY TX600 S3 are electronically equivalent.

 For information about Fujitsu Siemens Computers in your country please see:
 http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 /opt/intel/cc/9.1.047/bin/icc   -I/opt/intel/cc/9.1.047/include   -L/opt/intel/cc/9.1.047/lib

C++ benchmarks (except as noted below):

 icpc
450.soplex:  /opt/intel/cc/9.1.047/bin/icpc   -I/opt/intel/cc/9.1.047/include   -L/opt/intel/cc/9.1.047/lib

Fortran benchmarks (except as noted below):

 ifort
434.zeusmp:  /opt/intel/fc/9.1.043/bin/ifort   -I/opt/intel/fc/9.1.043/include   -L/opt/intel/fc/9.1.043/lib

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

433.milc:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
470.lbm:  Same as 433.milc
482.sphinx3:  -fast

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
450.soplex:  Same as 447.dealII
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  -fast
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

435.gromacs:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast
436.cactusADM:  basepeak = yes
454.calculix:  Same as 435.gromacs
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.09.xml.
