SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale R480 (3.0 GHz, Intel Xeon 7120M)

SPECfp®2006 = 9.51

CPU2006 license: 20 Test date: May-2007
Test sponsor: Bull SAS Hardware Availability: Sep-2006
Tested by: Bull SAS Software Availability: Nov-2006

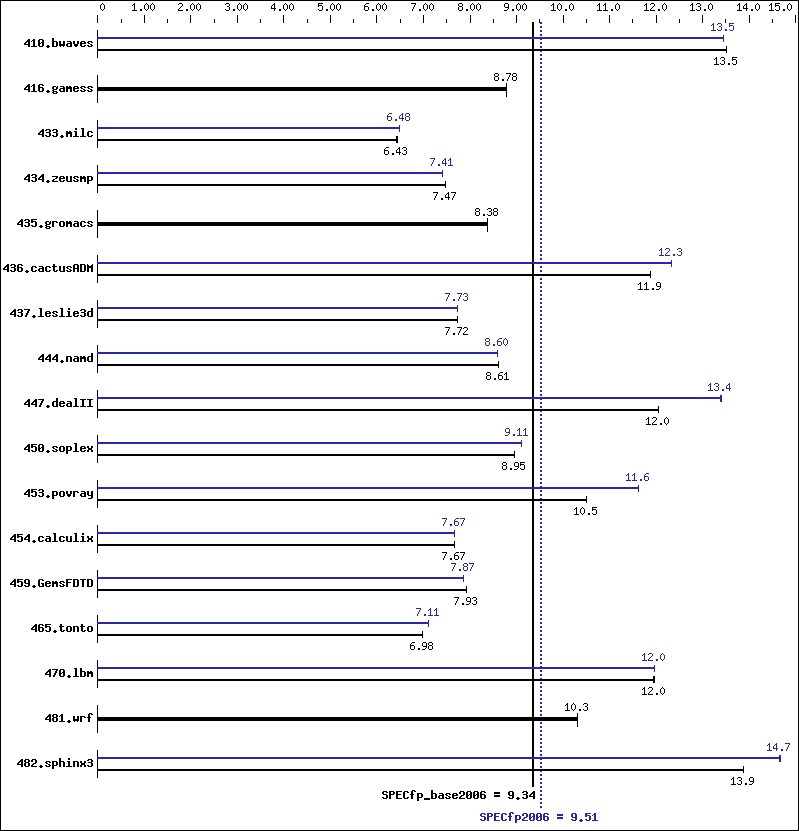

Benchmark results graph
Hardware
CPU Name: Intel Xeon 7120M
CPU Characteristics: 3.0 GHz, 800 MHz bus
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 1 core, 1 chip, 2 cores/chip
CPU(s) orderable: 1,2,4 chips
Primary Cache: 12 K micro-ops I + 16 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory: 32 GB (16x2 GB) DDR2 400 PC2-3200R-333
Disk Subsystem: 2x36 GB SAS 15000 RPM
Other Hardware: None
Software
Operating System: Windows Server 2003 Enterprise X64 Edition
Compiler: Intel C++ Compiler for IA32 version 9.1
Package ID W_CC_C_9.1.033 Build no 20061103Z
Intel Fortran Compiler for IA32 version 9.1
Package ID W_FC_C_9.1.033 Build no 20061103Z
Microsoft Visual Studio .NET 2003 (lib & linker)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill SmartHeap Library 8.0 (shlW32M.lib)

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 1005 13.5  1006 13.5  1006 13.5  1010 13.5  1010 13.5  1010 13.5
416.gamess 2229 8.78 2229 8.79 2229 8.78 2229 8.78 2229 8.79 2229 8.78
433.milc 1426 6.44 1428 6.43 1428 6.43 1416 6.48 1416 6.48 1417 6.48
434.zeusmp 1219 7.47 1219 7.47 1219 7.47 1228 7.41 1228 7.41 1228 7.41
435.gromacs 853 8.38 853 8.38 852 8.38 853 8.38 853 8.38 852 8.38
436.cactusADM 1006 11.9  1006 11.9  1006 11.9  969 12.3  969 12.3  969 12.3
437.leslie3d 1218 7.72 1217 7.72 1218 7.72 1216 7.73 1216 7.73 1216 7.73
444.namd 932 8.60 931 8.61 931 8.61 933 8.60 933 8.60 933 8.60
447.dealII 949 12.1  950 12.0  950 12.0  854 13.4  854 13.4  854 13.4
450.soplex 932 8.95 931 8.96 931 8.95 915 9.11 915 9.11 915 9.11
453.povray 506 10.5  506 10.5  507 10.5  458 11.6  458 11.6  458 11.6
454.calculix 1076 7.67 1076 7.67 1076 7.67 1075 7.67 1075 7.67 1075 7.67
459.GemsFDTD 1338 7.93 1338 7.93 1338 7.93 1349 7.87 1349 7.87 1349 7.87
465.tonto 1409 6.98 1411 6.98 1411 6.97 1384 7.11 1384 7.11 1384 7.11
470.lbm 1150 12.0  1148 12.0  1148 12.0  1149 12.0  1149 12.0  1149 12.0
481.wrf 1083 10.3  1083 10.3  1083 10.3  1083 10.3  1083 10.3  1083 10.3
482.sphinx3 1404 13.9  1404 13.9  1404 13.9  1330 14.7  1329 14.7  1330 14.7

General Notes

 Other Configuration Notes
 /NUMPROC=1 flag was added to boot.ini to invoke
 uniprocessor environment
 Hyper-Threading technology was disabled in the Bios.

 The NovaScale T880 and the NovaScale R480 models are
 electronically equivalent.
 The results have been measured on a NovaScale R480 model.




Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000    -link /FORCE:MULTIPLE
416.gamess:  basepeak = yes
434.zeusmp:  Same as 410.bwaves
437.leslie3d:  Same as 410.bwaves
459.GemsFDTD:  Same as 410.bwaves
465.tonto:  Same as 410.bwaves

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000    -link /FORCE:MULTIPLE
454.calculix:  Same as 436.cactusADM
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/flags.20090714.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/flags.20090714.00.xml.
