| CPU2006 license: | 001176 | Test date: | Apr-2007 |
|---|---|---|---|
| Test sponsor: | Supermicro | Hardware Availability: | Apr-2007 |
| Tested by: | Supermicro | Software Availability: | Apr-2007 |
| Hardware | |
|---|---|
| CPU Name: | Intel Core 2 Duo E4300 |
| CPU Characteristics: | 1.8GHz 800MHz bus |
| CPU MHz: | 1800 |
| FPU: | Integrated |
| CPU(s) enabled: | 2 cores, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 2 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 2 GB (4 X 512MB, DDR2 667MHz, CL5, ECC) |
| Disk Subsystem: | WD2500YS-01SHB1 250GB SATA II, 7200RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows XP Professional w/ SP2 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Build no 20070322Z |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | SmartHeap Library Version 8.0 from http://www.microquill.com/ |

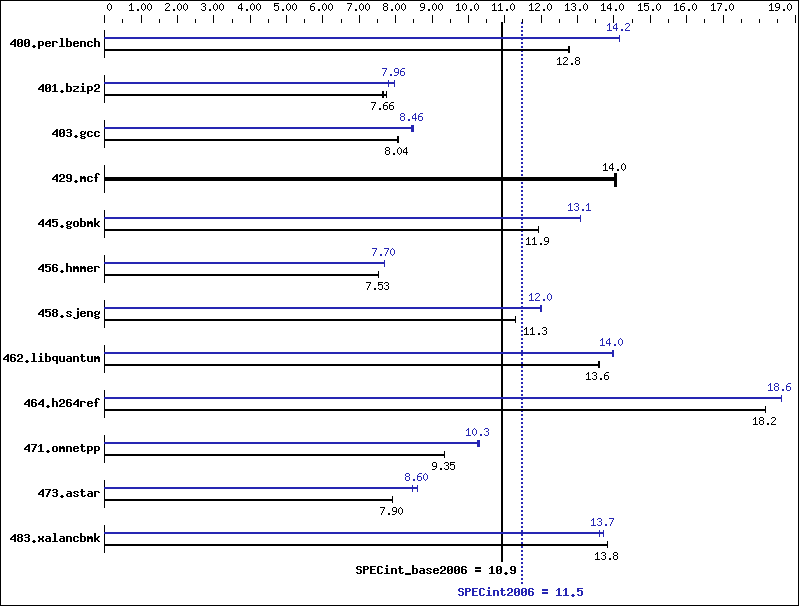

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 766 | 12.8 | 765 | 12.8 | 765 | 12.8 | 690 | 14.2 | 690 | 14.2 | 690 | 14.2 |
| 401.bzip2 | 1243 | 7.76 | 1260 | 7.66 | 1264 | 7.64 | 1211 | 7.97 | 1238 | 7.79 | 1213 | 7.96 |
| 403.gcc | 998 | 8.06 | 1001 | 8.04 | 1001 | 8.04 | 949 | 8.49 | 954 | 8.44 | 952 | 8.46 |
| 429.mcf | 650 | 14.0 | 649 | 14.0 | 649 | 14.1 | 650 | 14.0 | 649 | 14.0 | 649 | 14.1 |
| 445.gobmk | 879 | 11.9 | 879 | 11.9 | 879 | 11.9 | 802 | 13.1 | 802 | 13.1 | 802 | 13.1 |
| 456.hmmer | 1238 | 7.54 | 1239 | 7.53 | 1238 | 7.53 | 1212 | 7.70 | 1212 | 7.70 | 1213 | 7.69 |
| 458.sjeng | 1071 | 11.3 | 1070 | 11.3 | 1071 | 11.3 | 1009 | 12.0 | 1008 | 12.0 | 1008 | 12.0 |
| 462.libquantum | 1524 | 13.6 | 1527 | 13.6 | 1526 | 13.6 | 1482 | 14.0 | 1484 | 14.0 | 1484 | 14.0 |
| 464.h264ref | 1218 | 18.2 | 1218 | 18.2 | 1218 | 18.2 | 1190 | 18.6 | 1189 | 18.6 | 1190 | 18.6 |
| 471.omnetpp | 668 | 9.35 | 669 | 9.35 | 669 | 9.34 | 609 | 10.3 | 607 | 10.3 | 607 | 10.3 |
| 473.astar | 888 | 7.91 | 888 | 7.90 | 888 | 7.90 | 830 | 8.46 | 816 | 8.60 | 816 | 8.60 |
| 483.xalancbmk | 499 | 13.8 | 499 | 13.8 | 499 | 13.8 | 508 | 13.6 | 503 | 13.7 | 504 | 13.7 |
General Notes
Tested systems can be used with CSE-823S-R500LP case, For a general system, a 420W (minimum) ATX12V power supply [8-pin +12V AND 24-pin is recommended to assure system stability]. Product description located as of http://www.supermicro.com/products/motherboard/Xeon3000/3010/PDSM4+.cfm The system bus runs at 800 MHz
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 401.bzip2: | Same as 400.perlbench |
| 403.gcc: | Same as 400.perlbench |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | Same as 400.perlbench |
| 456.hmmer: | Same as 400.perlbench |
| 458.sjeng: | Same as 400.perlbench |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 400.perlbench |
C++ benchmarks:
| 471.omnetpp: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 473.astar: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -QxP -O2 -Qipo -Qprec-div- -Qunroll4 -Ob2 -Qsfalign16 -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
| 483.xalancbmk: | Same as 471.omnetpp |
