SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale 3045
(1.6GHz/18MB Dual-Core Intel Itanium 2)

CPU2006 license: 20 Test date: Apr-2007
Test sponsor: Bull SAS Hardware Availability: Oct-2006
Tested by: Bull SAS Software Availability: Nov-2006

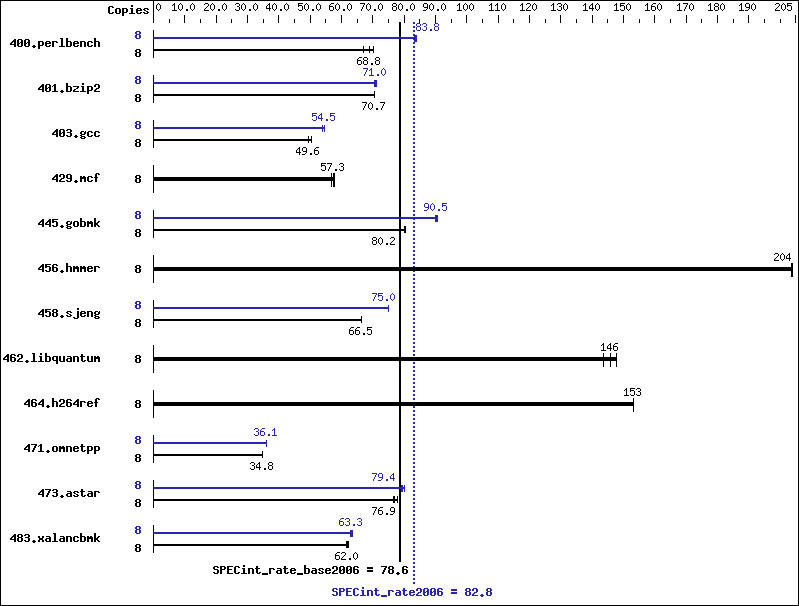

Benchmark results graph
Hardware
CPU Name: Dual-Core Intel Itanium 2 9040
CPU Characteristics: 1.6GHz/18MB, 533MHz FSB
CPU MHz: 1600
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip
CPU(s) orderable: 1-4 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 9 MB I+D on chip per core
Other Cache: None
Memory: 64 GB (32x2GB DIMMs)
Disk Subsystem: 2x73 GB 15K RPM SAS
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux AS release 4 (Update 4)
Compiler: Intel C++ Compiler 9.1 for Linux
(Build 20061105)
Auto Parallel: No
File System: ext3
System State: Multi-user
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: MicroQuill Smartheap 8.0

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 1167 67.0 1136 68.8 1112 70.3 8 932 83.9 933 83.8 939 83.3
401.bzip2 8 1093 70.6 1092 70.7 1092 70.7 8 1085 71.1 1094 70.6 1088 71.0
403.gcc 8 1276 50.5 1299 49.6 1302 49.4 8 1181 54.5 1179 54.6 1196 53.8
429.mcf 8 1266 57.6 1287 56.7 1273 57.3 8 1266 57.6 1287 56.7 1273 57.3
445.gobmk 8 1044 80.4 1049 80.0 1046 80.2 8 927 90.5 927 90.5 931 90.2
456.hmmer 8 366 204   366 204   366 204   8 366 204   366 204   366 204
458.sjeng 8 1457 66.5 1455 66.5 1457 66.4 8 1291 75.0 1290 75.0 1291 75.0
462.libquantum 8 1122 148   1155 144   1135 146   8 1122 148   1155 144   1135 146
464.h264ref 8 1155 153   1155 153   1155 153   8 1155 153   1155 153   1155 153
471.omnetpp 8 1437 34.8 1440 34.7 1438 34.8 8 1385 36.1 1386 36.1 1386 36.1
473.astar 8 733 76.6 722 77.8 730 76.9 8 708 79.3 707 79.4 701 80.2
483.xalancbmk 8 888 62.2 890 62.0 896 61.6 8 873 63.3 869 63.5 876 63.0

Operating System Notes

 stacksize set to unlimited prior to run

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_IA64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -IPF_fp_relaxed   -ansi-alias

C++ benchmarks:

 -fast   -IPF_fp_relaxed   -ansi-alias   -Wl,-z,muldefs   /opt/SmartHeap_8/lib/libsmartheapC64.a   /opt/SmartHeap_8/lib/libsmartheap64.a

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF_fp_relaxed   -ansi-alias
401.bzip2:  Same as 400.perlbench
403.gcc:  Same as 400.perlbench
429.mcf:  basepeak = yes
445.gobmk:  Same as 400.perlbench
456.hmmer:  basepeak = yes
458.sjeng:  Same as 400.perlbench
462.libquantum:  basepeak = yes
464.h264ref:  basepeak = yes

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF_fp_relaxed   -ansi-alias   -Wl,-z,muldefs   /opt/SmartHeap_8/lib/libsmartheapC64.a   /opt/SmartHeap_8/lib/libsmartheap64.a
473.astar:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF_fp_relaxed   -ansi-alias   -inline-factor=150   -Wl,-z,muldefs   /opt/SmartHeap_8/lib/libsmartheapC64.a   /opt/SmartHeap_8/lib/libsmartheap64.a
483.xalancbmk:  Same as 471.omnetpp

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IA64_Intel91_flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/IA64_Intel91_flags.xml.
