| CPU2006 license: | 20 | Test date: | Apr-2007 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Oct-2006 |
| Tested by: | Bull SAS | Software Availability: | Nov-2006 |
| Hardware | |
|---|---|
| CPU Name: | Dual-Core Intel Itanium 2 9040 |
| CPU Characteristics: | 1.6GHz/18MB, 533MHz FSB |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 4 chips, 2 cores/chip |
| CPU(s) orderable: | 1-4 chips |
| Primary Cache: | 16 KB I + 16 KB D on chip per core |
| Secondary Cache: | 1 MB I + 256 KB D on chip per core |
| L3 Cache: | 9 MB I+D on chip per core |
| Other Cache: | None |
| Memory: | 64 GB (32x2GB DIMMs) |
| Disk Subsystem: | 2x73 GB 15K RPM SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Red Hat Enterprise Linux AS release 4 (Update 4) |
| Compiler: | Intel C++ Compiler 9.1 for Linux (Build 20061105) Intel Fortran Compiler 9.1 for Linux (Build 20061105) |
| Auto Parallel: | No |
| File System: | ext3 |
| System State: | Multi-user |
| Base Pointers: | 64-bit |
| Peak Pointers: | 64-bit |
| Other Software: | None |

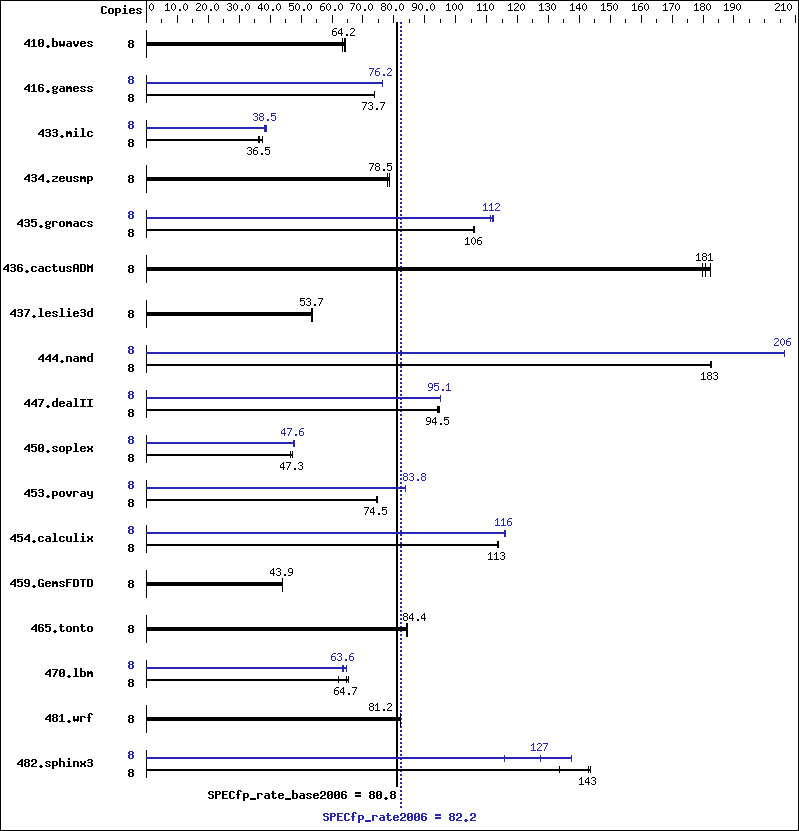

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 8 | 1692 | 64.3 | 1694 | 64.2 | 1714 | 63.4 | 8 | 1692 | 64.3 | 1694 | 64.2 | 1714 | 63.4 |
| 416.gamess | 8 | 2125 | 73.7 | 2125 | 73.7 | 2124 | 73.7 | 8 | 2054 | 76.2 | 2054 | 76.3 | 2055 | 76.2 |
| 433.milc | 8 | 2022 | 36.3 | 2012 | 36.5 | 1958 | 37.5 | 8 | 1920 | 38.2 | 1906 | 38.5 | 1899 | 38.7 |
| 434.zeusmp | 8 | 927 | 78.5 | 932 | 78.1 | 927 | 78.5 | 8 | 927 | 78.5 | 932 | 78.1 | 927 | 78.5 |
| 435.gromacs | 8 | 539 | 106 | 539 | 106 | 539 | 106 | 8 | 510 | 112 | 511 | 112 | 513 | 111 |
| 436.cactusADM | 8 | 524 | 183 | 532 | 180 | 529 | 181 | 8 | 524 | 183 | 532 | 180 | 529 | 181 |
| 437.leslie3d | 8 | 1401 | 53.7 | 1401 | 53.7 | 1406 | 53.5 | 8 | 1401 | 53.7 | 1401 | 53.7 | 1406 | 53.5 |
| 444.namd | 8 | 352 | 183 | 352 | 182 | 351 | 183 | 8 | 311 | 206 | 311 | 206 | 311 | 206 |
| 447.dealII | 8 | 971 | 94.3 | 968 | 94.5 | 966 | 94.7 | 8 | 962 | 95.1 | 962 | 95.1 | 961 | 95.2 |
| 450.soplex | 8 | 1410 | 47.3 | 1409 | 47.4 | 1429 | 46.7 | 8 | 1393 | 47.9 | 1401 | 47.6 | 1403 | 47.5 |
| 453.povray | 8 | 571 | 74.5 | 570 | 74.7 | 573 | 74.3 | 8 | 508 | 83.8 | 508 | 83.8 | 508 | 83.8 |
| 454.calculix | 8 | 582 | 113 | 582 | 113 | 580 | 114 | 8 | 568 | 116 | 570 | 116 | 570 | 116 |
| 459.GemsFDTD | 8 | 1935 | 43.9 | 1930 | 44.0 | 1932 | 43.9 | 8 | 1935 | 43.9 | 1930 | 44.0 | 1932 | 43.9 |
| 465.tonto | 8 | 936 | 84.1 | 932 | 84.4 | 931 | 84.6 | 8 | 936 | 84.1 | 932 | 84.4 | 931 | 84.6 |
| 470.lbm | 8 | 1682 | 65.4 | 1774 | 62.0 | 1699 | 64.7 | 8 | 1737 | 63.3 | 1727 | 63.6 | 1695 | 64.8 |
| 481.wrf | 8 | 1101 | 81.1 | 1088 | 82.1 | 1100 | 81.2 | 8 | 1101 | 81.1 | 1088 | 82.1 | 1100 | 81.2 |
| 482.sphinx3 | 8 | 1168 | 133 | 1085 | 144 | 1089 | 143 | 8 | 1133 | 138 | 1346 | 116 | 1224 | 127 |
Operating System Notes
stacksize set to unlimited prior to run
Base Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX -DSPEC_CPU_CASE_FLAG |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
Base Optimization Flags
C benchmarks:
| -fast -IPF_fp_relaxed -ansi-alias |
C++ benchmarks:
| -fast -IPF_fp_relaxed -ansi-alias |
Fortran benchmarks:
| -fast -IPF_fp_relaxed |
Benchmarks using both Fortran and C:
| -fast -IPF_fp_relaxed -ansi-alias |
Peak Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Peak Portability Flags
Same as Base Portability Flags
Peak Optimization Flags
C benchmarks:
| 433.milc: | -fast -IPF_fp_relaxed -ansi-alias -fno-alias |
| 470.lbm: | -prof_gen(pass 1) -prof_use(pass 2) -fast -IPF_fp_relaxed -ansi-alias |
| 482.sphinx3: | Same as 470.lbm |
C++ benchmarks:
| 444.namd: | -prof_gen(pass 1) -prof_use(pass 2) -fast -IPF_fp_relaxed -no-prefetch -fno-alias |
| 447.dealII: | -fast -IPF_fp_relaxed -ansi-alias -no-alias-args |
| 450.soplex: | -fast -IPF_fp_relaxed -ansi-alias -inline-factor=150 |
| 453.povray: | -prof_gen(pass 1) -prof_use(pass 2) -fast -IPF_fp_relaxed -ansi-alias |
Fortran benchmarks:
| 410.bwaves: | basepeak = yes |
| 416.gamess: | -fast -IPF_fp_relaxed -inline-factor=150 |
| 434.zeusmp: | basepeak = yes |
| 437.leslie3d: | basepeak = yes |
| 459.GemsFDTD: | basepeak = yes |
| 465.tonto: | basepeak = yes |
Benchmarks using both Fortran and C:
| 435.gromacs: | -prof_gen(pass 1) -prof_use(pass 2) -fast -IPF_fp_relaxed -fno-alias -inline-factor=150 |
| 436.cactusADM: | basepeak = yes |
| 454.calculix: | -fast -IPF_fp_relaxed -fno-alias |
| 481.wrf: | basepeak = yes |
