| CPU2006 license: | 20 | Test date: | Apr-2007 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Mar-2007 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5310 |
| CPU Characteristics: | 1.60 GHz, 8MB L2, 1066MHz bus |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 1 core, 1 chip, 4 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 12 GB (1GB DIMMx12, FB-DIMM PC2-5300F ECC CL5) |
| Disk Subsystem: | 73 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise X64 Edition Service Pack1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

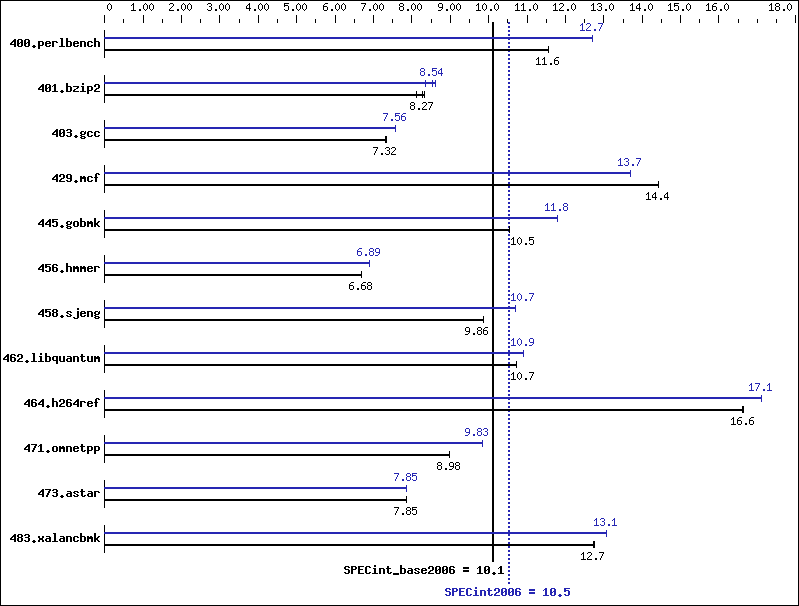

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 845 | 11.6 | 844 | 11.6 | 844 | 11.6 | 769 | 12.7 | 768 | 12.7 | 768 | 12.7 |
| 401.bzip2 | 1157 | 8.34 | 1190 | 8.11 | 1166 | 8.27 | 1121 | 8.61 | 1157 | 8.34 | 1130 | 8.54 |
| 403.gcc | 1095 | 7.35 | 1100 | 7.32 | 1100 | 7.32 | 1064 | 7.57 | 1064 | 7.56 | 1064 | 7.56 |
| 429.mcf | 632 | 14.4 | 632 | 14.4 | 632 | 14.4 | 665 | 13.7 | 666 | 13.7 | 666 | 13.7 |
| 445.gobmk | 996 | 10.5 | 996 | 10.5 | 996 | 10.5 | 889 | 11.8 | 889 | 11.8 | 889 | 11.8 |
| 456.hmmer | 1398 | 6.68 | 1398 | 6.68 | 1398 | 6.68 | 1355 | 6.89 | 1355 | 6.89 | 1355 | 6.88 |
| 458.sjeng | 1227 | 9.86 | 1227 | 9.86 | 1227 | 9.86 | 1132 | 10.7 | 1132 | 10.7 | 1132 | 10.7 |
| 462.libquantum | 1932 | 10.7 | 1932 | 10.7 | 1932 | 10.7 | 1901 | 10.9 | 1901 | 10.9 | 1901 | 10.9 |
| 464.h264ref | 1331 | 16.6 | 1331 | 16.6 | 1331 | 16.6 | 1294 | 17.1 | 1294 | 17.1 | 1294 | 17.1 |
| 471.omnetpp | 696 | 8.98 | 696 | 8.98 | 696 | 8.98 | 636 | 9.83 | 636 | 9.83 | 636 | 9.83 |
| 473.astar | 894 | 7.85 | 894 | 7.85 | 894 | 7.85 | 894 | 7.85 | 895 | 7.85 | 895 | 7.85 |
| 483.xalancbmk | 541 | 12.7 | 541 | 12.7 | 542 | 12.7 | 527 | 13.1 | 528 | 13.1 | 528 | 13.1 |
Operating System Notes
/NUMPROC=1 flag was added to boot.ini to invoke uniprocessor environment
General Notes
The NovaScale R440 and the NovaScale R460 models are electronically equivalent. The results have been measured on a NovaScale R460 model.
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
Base Optimization Flags
C benchmarks:
| -fast /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F512000000 shlw32m.lib -link /FORCE:MULTIPLE |
Peak Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
