SPEC® CFP2006 Result

Copyright 2006-2016 Standard Performance Evaluation Corporation

IBM Corporation

IBM System x3455 (AMD Opteron 2222 SE)

CPU2006 license: 11 Test date: Feb-2007
Test sponsor: IBM Corporation Hardware Availability: Apr-2007
Tested by: IBM Corporation Software Availability: Aug-2006

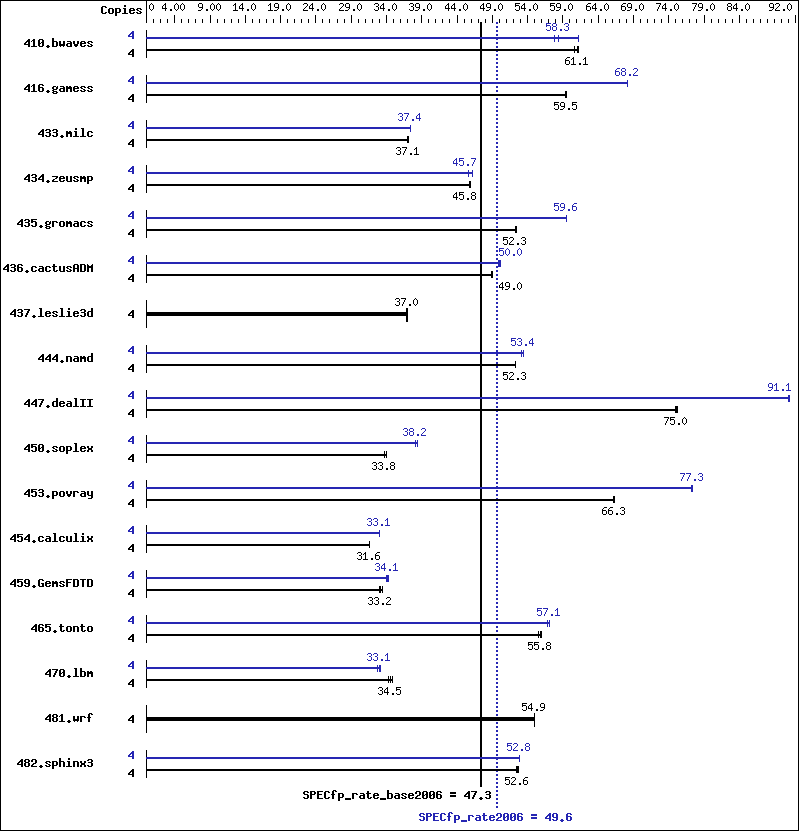

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2222 SE
CPU Characteristics:
CPU MHz: 3000
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1, 2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2GB DDR2-5300 ECC)
Disk Subsystem: 1 x 80 GB SATA, 7200 RPM
Other Hardware: None
Software
Operating System: SLES9 SP3 for AMD64/EM64T
Compiler: QLogic PathScale Compiler Suite 2.5
Auto Parallel: No
File System: ext3
System State: Multi-user, run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 889 61.2 890 61.1 895 60.7 4 889 61.2 941 57.8 932 58.3
416.gamess 4 1317 59.5 1318 59.4 1317 59.5 4 1148 68.2 1149 68.2 1148 68.2
433.milc 4 990 37.1 987 37.2 992 37.0 4 981 37.4 982 37.4 982 37.4
434.zeusmp 4 794 45.9 795 45.8 796 45.7 4 788 46.2 798 45.6 797 45.7
435.gromacs 4 546 52.3 546 52.3 545 52.4 4 479 59.6 480 59.6 479 59.6
436.cactusADM 4 977 48.9 976 49.0 974 49.1 4 952 50.2 957 50.0 960 49.8
437.leslie3d 4 1015 37.0 1015 37.0 1020 36.9 4 1015 37.0 1015 37.0 1020 36.9
444.namd 4 614 52.3 614 52.3 614 52.2 4 604 53.2 601 53.4 601 53.4
447.dealII 4 608 75.2 610 75.0 610 75.0 4 503 91.0 502 91.2 502 91.1
450.soplex 4 983 33.9 988 33.8 991 33.7 4 868 38.5 875 38.1 874 38.2
453.povray 4 321 66.2 321 66.3 321 66.4 4 275 77.3 275 77.3 275 77.3
454.calculix 4 1044 31.6 1045 31.6 1044 31.6 4 998 33.1 998 33.1 1000 33.0
459.GemsFDTD 4 1271 33.4 1283 33.1 1280 33.2 4 1246 34.1 1244 34.1 1237 34.3
465.tonto 4 708 55.6 706 55.8 704 55.9 4 688 57.2 692 56.9 690 57.1
470.lbm 4 1601 34.3 1591 34.5 1577 34.8 4 1681 32.7 1661 33.1 1659 33.1
481.wrf 4 814 54.9 813 54.9 813 54.9 4 814 54.9 813 54.9 813 54.9
482.sphinx3 4 1481 52.7 1483 52.6 1486 52.5 4 1477 52.8 1477 52.8 1477 52.8

Operating System Notes

 taskset utility used to bind CPU(s) to processes

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64   -DSPEC_CPU_TABLE_WORKAROUND
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -march=auto   -Ofast

C++ benchmarks:

 -march=auto   -Ofast

Fortran benchmarks:

 -march=auto   -Ofast

Benchmarks using both Fortran and C:

 -march=auto   -Ofast

Base Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

Fortran benchmarks:

 -IPA:max_jobs=2

Benchmarks using both Fortran and C:

 -IPA:max_jobs=2

Peak Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Peak Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_TABLE_WORKAROUND
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Peak Optimization Flags

C benchmarks:

 -march=auto   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast

C++ benchmarks:

444.namd:  -march=auto   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast
447.dealII:  -march=auto   -Ofast   -m32   -fno-exceptions
450.soplex:  -march=auto   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:IEEE_arith=3   -CG:load_exe=0   -CG:movnti=1   -LNO:minvariant=off   -fno-exceptions
453.povray:  -march=auto   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-fast-math

Fortran benchmarks:

410.bwaves:  -march=auto   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:Ofast   -OPT:IEEE_arith=3   -LNO:blocking=off   -LNO:ignore_feedback=off
416.gamess:  -march=auto   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O2   -OPT:Ofast   -OPT:ro=3   -OPT:unroll_size=256
434.zeusmp:  -march=auto   -Ofast   -CG:local_fwd_sched=on   -LNO:blocking=off   -LNO:interchange=off   -LNO:fu=10   -LNO:full_unroll_outer=on
437.leslie3d:  basepeak = yes
459.GemsFDTD:  -march=auto   -Ofast   -LNO:fission=2   -LNO:prefetch=0
465.tonto:  -march=auto   -Ofast   -CG:local_fwd_sched=on   -IPA:plimit=525

Benchmarks using both Fortran and C:

435.gromacs:  -march=auto   -O3   -OPT:rsqrt=2   -OPT:ro=3
436.cactusADM:  -march=auto   -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:prefetch_ahead=5   -LNO:ou_prod_max=10   -LNO:full_unroll=5   -ipa
454.calculix:  -march=auto   -Ofast   -CG:prefetch=off   -LNO:simd=0   -OPT:unroll_times_max=8   -WOPT:mem_opnds=on
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

Fortran benchmarks:

 -IPA:max_jobs=2

Benchmarks using both Fortran and C:

 -IPA:max_jobs=2

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.29.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.29.xml.
