| CPU2006 license: | 55 | Test date: | Mar-2007 |
|---|---|---|---|
| Test sponsor: | Dell Inc. | Hardware Availability: | Dec-2006 |
| Tested by: | Dell Inc. | Software Availability: | Nov-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5345 |
| CPU Characteristics: | 1333 MHz Bus Speed |
| CPU MHz: | 2333 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2 GB 667MHz CL5 DDR2 FB-DIMM SDRAM) |
| Disk Subsystem: | 1 x 73 GB SAS 15k RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 10 EM64T kernel 2.6.16.21-0.8-smp |
| Compiler: | Intel C++ Compiler for Intel EM64T-based applications, Version 9.1 Package ID l_cc_c_9.1.045 Build no 20061101 Intel Fortran Compiler for Intel EM64T-based applications, Version 9.1 Package ID l_fc_c_9.1.040 Build no 20061101 |
| Auto Parallel: | No |
| File System: | ext2 |
| System State: | Multi-user run level 3 |
| Base Pointers: | 64-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | None |

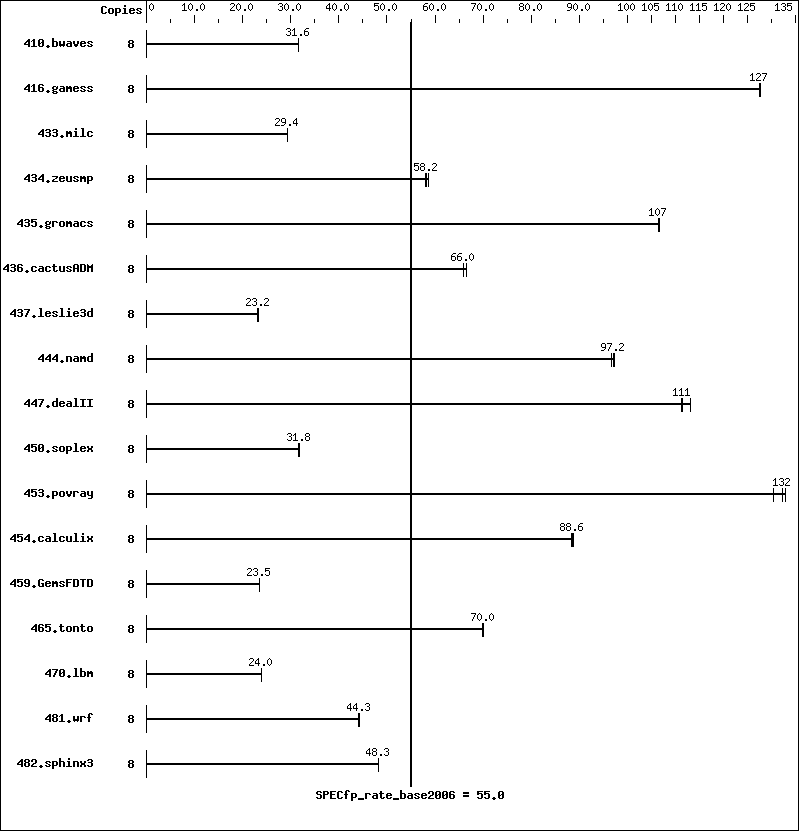

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 8 | 3440 | 31.6 | 3437 | 31.6 | 3438 | 31.6 | |||||||
| 416.gamess | 8 | 1229 | 127 | 1227 | 128 | 1229 | 127 | |||||||
| 433.milc | 8 | 2499 | 29.4 | 2504 | 29.3 | 2499 | 29.4 | |||||||
| 434.zeusmp | 8 | 1243 | 58.6 | 1251 | 58.2 | 1257 | 57.9 | |||||||
| 435.gromacs | 8 | 536 | 107 | 536 | 107 | 536 | 107 | |||||||
| 436.cactusADM | 8 | 1438 | 66.5 | 1450 | 65.9 | 1449 | 66.0 | |||||||
| 437.leslie3d | 8 | 3227 | 23.3 | 3235 | 23.2 | 3245 | 23.2 | |||||||
| 444.namd | 8 | 663 | 96.7 | 660 | 97.2 | 660 | 97.2 | |||||||
| 447.dealII | 8 | 822 | 111 | 822 | 111 | 810 | 113 | |||||||
| 450.soplex | 8 | 2101 | 31.8 | 2105 | 31.7 | 2100 | 31.8 | |||||||
| 453.povray | 8 | 327 | 130 | 320 | 133 | 322 | 132 | |||||||
| 454.calculix | 8 | 743 | 88.8 | 745 | 88.6 | 747 | 88.3 | |||||||
| 459.GemsFDTD | 8 | 3608 | 23.5 | 3610 | 23.5 | 3609 | 23.5 | |||||||
| 465.tonto | 8 | 1125 | 70.0 | 1127 | 69.9 | 1122 | 70.1 | |||||||
| 470.lbm | 8 | 4588 | 24.0 | 4587 | 24.0 | 4587 | 24.0 | |||||||
| 481.wrf | 8 | 2014 | 44.4 | 2026 | 44.1 | 2017 | 44.3 | |||||||
| 482.sphinx3 | 8 | 3229 | 48.3 | 3233 | 48.2 | 3231 | 48.3 | |||||||
Platform Notes
Hardware Prefetcher disabled in BIOS Adjacent Cache Line Prefetch disabled in BIOS "ulimit -s unlimited" set
Base Compiler Invocation
C benchmarks:
| icc |
C++ benchmarks:
| icpc |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icc ifort |
Base Portability Flags
| 410.bwaves: | -DSPEC_CPU_LP64 |
| 416.gamess: | -DSPEC_CPU_LP64 |
| 433.milc: | -DSPEC_CPU_LP64 |
| 434.zeusmp: | -DSPEC_CPU_LP64 |
| 435.gromacs: | -DSPEC_CPU_LP64 -nofor_main |
| 436.cactusADM: | -DSPEC_CPU_LP64 -nofor_main |
| 437.leslie3d: | -DSPEC_CPU_LP64 |
| 444.namd: | -DSPEC_CPU_LP64 |
| 447.dealII: | -DSPEC_CPU_LP64 |
| 450.soplex: | -DSPEC_CPU_LP64 |
| 453.povray: | -DSPEC_CPU_LP64 |
| 454.calculix: | -DSPEC_CPU_LP64 -nofor_main |
| 459.GemsFDTD: | -DSPEC_CPU_LP64 |
| 465.tonto: | -DSPEC_CPU_LP64 |
| 470.lbm: | -DSPEC_CPU_LP64 |
| 481.wrf: | -DSPEC_CPU_LP64 -DSPEC_CPU_CASE_FLAG -DSPEC_CPU_LINUX |
| 482.sphinx3: | -DSPEC_CPU_LP64 |
