SPEC® CFP2006 Result

Bull SAS

NovaScale T810 (Intel Xeon processor
3060,2.40GHz)

SPECfp®_rate2006 = 22.8

SPECfp_rate_base2006 = 22.4

CPU2006 license:	20	Test date:	Mar-2007
Test sponsor:	Bull SAS	Hardware Availability:	Feb-2007
Tested by:	Bull SAS	Software Availability:	Dec-2006

Hardware
CPU Name:	Intel Xeon 3060
CPU Characteristics:	2.40 GHz, 4MB L2, 1066MHz bus
CPU MHz:	2400
FPU:	Integrated
CPU(s) enabled:	2 cores, 1 chip, 2 cores/chip
CPU(s) orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	4 MB I+D on chip per chip
L3 Cache:	None
Other Cache:	None
Memory:	8 GB (2GB DIMMx4, PC2-5300E ECC CL5)
Disk Subsystem:	73 GB SAS, 10000RPM
Other Hardware:	None

Software
Operating System:	Windows Server 2003 Enterprise Edition X64 Edition Service Pack1
Compiler:	Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Intel Fortran Compiler for IA32 version 9.1 Package ID W_FC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker)
Auto Parallel:	No
File System:	NTFS
System State:	Default
Base Pointers:	32-bit
Peak Pointers:	32-bit
Other Software:	MicroQuill SmartHeap Library 8.0 (shlW32M.lib)

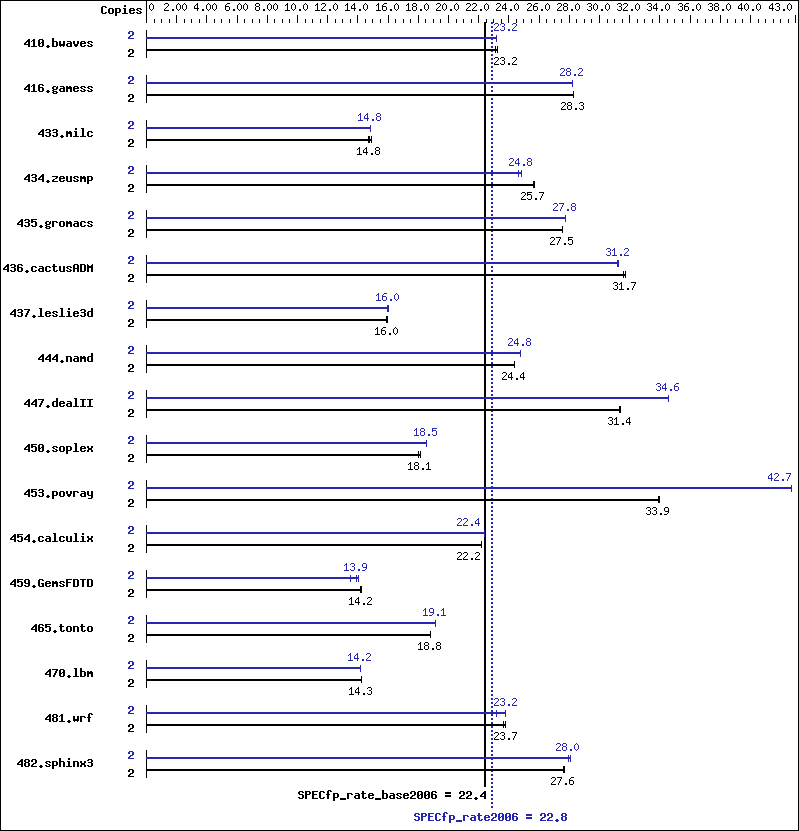

Results Table

Benchmark	Base							Peak
Benchmark	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio	Copies	Seconds	Ratio	Seconds	Ratio	Seconds	Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves	2	1177	23.1	1169	23.2	1170	23.2	2	1172	23.2	1173	23.2	1171	23.2
416.gamess	2	1384	28.3	1384	28.3	1384	28.3	2	1387	28.2	1387	28.2	1387	28.2
433.milc	2	1248	14.7	1241	14.8	1232	14.9	2	1238	14.8	1235	14.9	1236	14.8
434.zeusmp	2	710	25.6	708	25.7	709	25.7	2	734	24.8	738	24.7	733	24.8
435.gromacs	2	519	27.5	519	27.5	518	27.5	2	514	27.8	514	27.8	514	27.8
436.cactusADM	2	756	31.6	754	31.7	754	31.7	2	766	31.2	765	31.2	765	31.2
437.leslie3d	2	1183	15.9	1176	16.0	1177	16.0	2	1176	16.0	1174	16.0	1174	16.0
444.namd	2	658	24.4	658	24.4	658	24.4	2	648	24.8	648	24.8	648	24.8
447.dealII	2	730	31.3	728	31.4	729	31.4	2	662	34.6	661	34.6	662	34.6
450.soplex	2	924	18.0	921	18.1	918	18.2	2	899	18.5	901	18.5	899	18.6
453.povray	2	313	33.9	314	33.9	314	33.9	2	249	42.7	249	42.7	249	42.7
454.calculix	2	745	22.2	745	22.2	744	22.2	2	736	22.4	736	22.4	736	22.4
459.GemsFDTD	2	1497	14.2	1493	14.2	1491	14.2	2	1511	14.0	1523	13.9	1569	13.5
465.tonto	2	1047	18.8	1046	18.8	1046	18.8	2	1028	19.2	1028	19.1	1028	19.1
470.lbm	2	1929	14.2	1928	14.3	1928	14.3	2	1940	14.2	1940	14.2	1940	14.2
481.wrf	2	940	23.8	944	23.7	944	23.7	2	941	23.8	963	23.2	963	23.2
482.sphinx3	2	1412	27.6	1406	27.7	1410	27.6	2	1394	28.0	1387	28.1	1393	28.0

Base Compiler Invocation

C benchmarks:

icl -Qvc7.1 -Qc99

C++ benchmarks:

icl -Qvc7.1

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc7.1 -Qc99 ifort

Base Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Compiler Invocation

C benchmarks:

icl -Qvc7.1 -Qc99

C++ benchmarks:

icl -Qvc7.1

Fortran benchmarks:

ifort

Benchmarks using both Fortran and C:

icl -Qvc7.1 -Qc99 ifort

Peak Portability Flags

436.cactusADM:	-Qlowercase /assume:underscore
444.namd:	-TP
447.dealII:	-DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:	-DSPEC_CPU_WINDOWS_ICL
454.calculix:	-DSPEC_CPU_NOZMODIFIER -Qlowercase
481.wrf:	-DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/flags.20090714.00.xml.
