| CPU2006 license: | 20 | Test date: | Mar-2007 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Feb-2007 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 3060 |
| CPU Characteristics: | 2.40 GHz, 4MB L2, 1066MHz bus |
| CPU MHz: | 2400 |
| FPU: | Integrated |
| CPU(s) enabled: | 1 core, 1 chip, 2 cores/chip |
| CPU(s) orderable: | 1 chip |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (2GB DIMMx4, PC2-5300E ECC CL5) |
| Disk Subsystem: | 73 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition X64 Edition Service Pack1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Intel Fortran Compiler for IA32 version 9.1 Package ID W_FC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

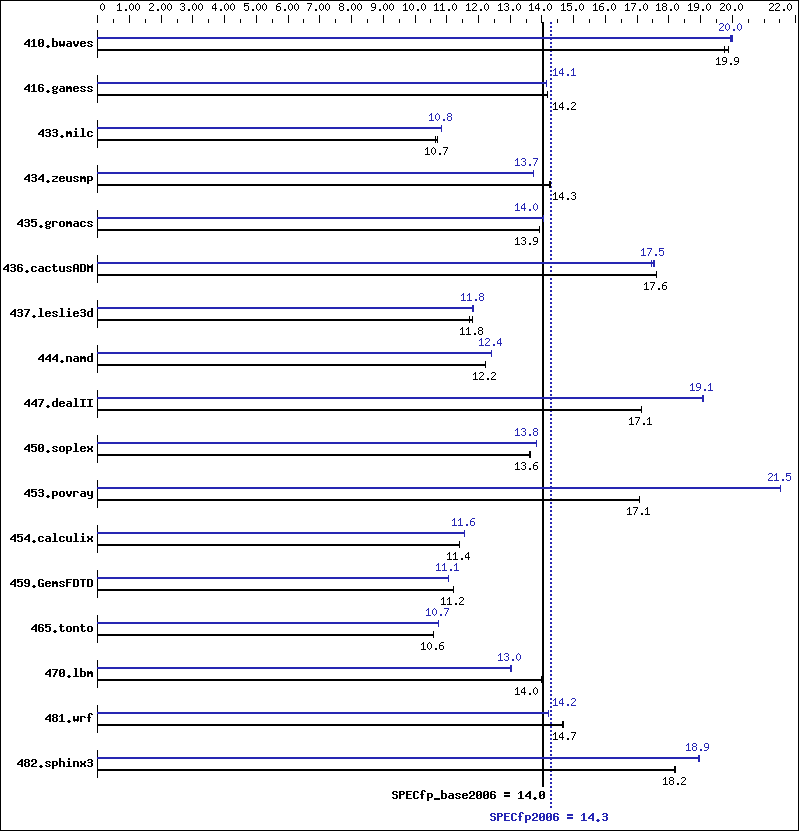

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 688 | 19.7 | 683 | 19.9 | 684 | 19.9 | 681 | 20.0 | 680 | 20.0 | 681 | 20.0 |
| 416.gamess | 1382 | 14.2 | 1382 | 14.2 | 1382 | 14.2 | 1385 | 14.1 | 1385 | 14.1 | 1385 | 14.1 |
| 433.milc | 861 | 10.7 | 857 | 10.7 | 856 | 10.7 | 848 | 10.8 | 847 | 10.8 | 847 | 10.8 |
| 434.zeusmp | 639 | 14.2 | 637 | 14.3 | 637 | 14.3 | 663 | 13.7 | 663 | 13.7 | 662 | 13.7 |
| 435.gromacs | 513 | 13.9 | 513 | 13.9 | 513 | 13.9 | 508 | 14.0 | 508 | 14.0 | 509 | 14.0 |
| 436.cactusADM | 679 | 17.6 | 679 | 17.6 | 679 | 17.6 | 685 | 17.5 | 681 | 17.5 | 682 | 17.5 |
| 437.leslie3d | 802 | 11.7 | 796 | 11.8 | 796 | 11.8 | 795 | 11.8 | 795 | 11.8 | 794 | 11.8 |
| 444.namd | 657 | 12.2 | 657 | 12.2 | 657 | 12.2 | 646 | 12.4 | 646 | 12.4 | 646 | 12.4 |
| 447.dealII | 668 | 17.1 | 668 | 17.1 | 668 | 17.1 | 600 | 19.1 | 600 | 19.1 | 600 | 19.1 |
| 450.soplex | 613 | 13.6 | 612 | 13.6 | 612 | 13.6 | 603 | 13.8 | 603 | 13.8 | 604 | 13.8 |
| 453.povray | 312 | 17.1 | 312 | 17.1 | 312 | 17.1 | 247 | 21.5 | 247 | 21.5 | 247 | 21.5 |
| 454.calculix | 724 | 11.4 | 724 | 11.4 | 724 | 11.4 | 714 | 11.6 | 714 | 11.6 | 714 | 11.6 |
| 459.GemsFDTD | 946 | 11.2 | 947 | 11.2 | 947 | 11.2 | 961 | 11.0 | 959 | 11.1 | 959 | 11.1 |
| 465.tonto | 930 | 10.6 | 930 | 10.6 | 930 | 10.6 | 916 | 10.7 | 916 | 10.7 | 915 | 10.7 |
| 470.lbm | 980 | 14.0 | 982 | 14.0 | 980 | 14.0 | 1056 | 13.0 | 1055 | 13.0 | 1055 | 13.0 |
| 481.wrf | 762 | 14.7 | 760 | 14.7 | 760 | 14.7 | 787 | 14.2 | 786 | 14.2 | 786 | 14.2 |
| 482.sphinx3 | 1072 | 18.2 | 1070 | 18.2 | 1070 | 18.2 | 1029 | 18.9 | 1028 | 19.0 | 1029 | 18.9 |
General Notes
Other Configuration Notes /NUMPROC=1 flag was added to boot.ini to invoke uniprocessor environment
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
