SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Sun Microsystems

Sun Fire X4600 M2

CPU2006 license: 6 Test date: Mar-2007
Test sponsor: Sun Microsystems Hardware Availability: Oct-2006
Tested by: Sun Microsystems Software Availability: Aug-2006

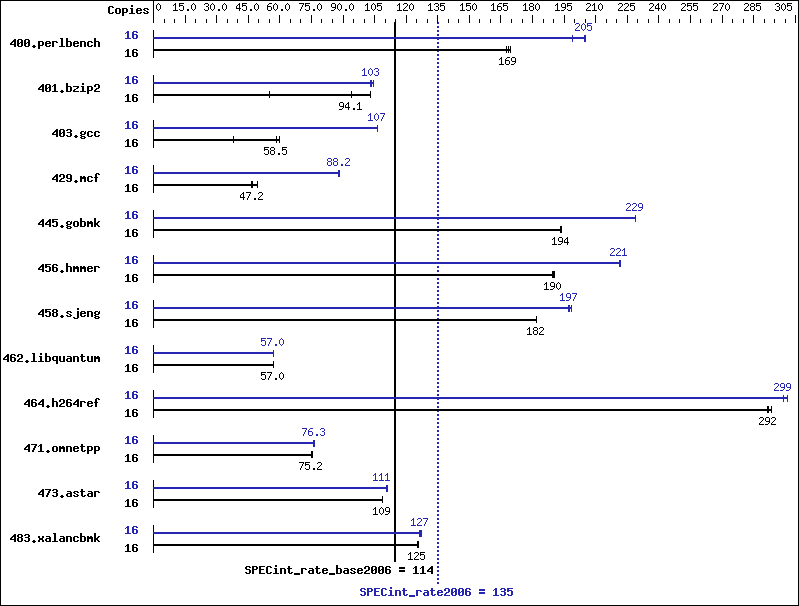

Benchmark results graph
Hardware
CPU Name: AMD Opteron 8218
CPU Characteristics:
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 16 cores, 8 chips, 2 cores/chip
CPU(s) orderable: 4,8 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 32 GB (16x2GB, DDR2-667 CL5 ECC Reg Dual Rank)
Disk Subsystem: SAS, 72 GB,10K RPM
Other Hardware: None
Software
Operating System: RedHat Enterprise Linux Advanced Server
Release 4 update 4 for AMD64/EMT64
Compiler: QLogic PathScale
Compiler Suite, Release 2.5
Auto Parallel: No
File System: ext3
System State: Multi-user, run level 3
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: MicroQuill's SmartHeap 8.0 32-bit
Library for Linux

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 16 921 170   933 168   927 169   16 786 199   763 205   762 205
401.bzip2 16 2808 55.0 1641 94.1 1500 103   16 1500 103   1478 104   1493 103
403.gcc 16 3391 38.0 2200 58.5 2158 59.7 16 1209 107   1212 106   1209 107
429.mcf 16 3141 46.5 3092 47.2 2943 49.6 16 1655 88.2 1664 87.7 1653 88.3
445.gobmk 16 867 194   865 194   866 194   16 732 229   733 229   733 229
456.hmmer 16 788 189   784 191   786 190   16 673 222   675 221   675 221
458.sjeng 16 1063 182   1064 182   1064 182   16 981 197   976 198   981 197
462.libquantum 16 5811 57.0 5818 57.0 5817 57.0 16 5817 57.0 5821 57.0 5826 56.9
464.h264ref 16 1206 294   1214 292   1213 292   16 1177 301   1183 299   1184 299
471.omnetpp 16 1328 75.3 1329 75.2 1329 75.2 16 1311 76.3 1310 76.3 1316 76.0
473.astar 16 1031 109   1031 109   1034 109   16 1016 111   1011 111   1011 111
483.xalancbmk 16 881 125   879 126   881 125   16 874 126   871 127   869 127

General Notes

 taskset utility used to bind CPU(s) to processes
 'ulimit -s unlimited' was used to set the stacksize to unlimited prior to run

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -Ofast

C++ benchmarks:

 -Ofast   -m32   -L/data1/SmartHeap_8smp/lib -lsmartheap_smp

Base Other Flags

C benchmarks:

 -IPA:max_jobs=4

C++ benchmarks:

 -IPA:max_jobs=4

Peak Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast
401.bzip2:  -O3   -LNO:ou_prod_max=10   -OPT:Ofast   -OPT:alias=disjoint
403.gcc:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:Ofast
429.mcf:  -m32   -O2   -ipa   -L/data1/SmartHeap_8smp/lib -lsmartheap_smp
445.gobmk:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=disjoint   -LNO:simd=0   -LNO:minvariant=off   -WOPT:retype_expr=on
456.hmmer:  -O2   -OPT:alias=disjoint   -WOPT:aggstr=0   -CG:cflow=0
458.sjeng:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=50000   -IPA:pu_reorder=2
462.libquantum:  -O3   -ipa   -CG:local_fwd_sched=on   -IPA:space=1000
464.h264ref:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=20000   -OPT:alias=disjoint   -LNO:prefetch=0

C++ benchmarks:

471.omnetpp:  -Ofast   -IPA:pu_reorder=2   -CG:gcm=off   -m32   -L/data1/SmartHeap_8smp/lib -lsmartheap_smp
473.astar:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -m32   -L/data1/SmartHeap_8smp/lib -lsmartheap_smp
483.xalancbmk:  -Ofast   -m32   -OPT:unroll_times_max=8   -L/data1/SmartHeap_8smp/lib -lsmartheap_smp

Peak Other Flags

C benchmarks:

 -IPA:max_jobs=4

C++ benchmarks:

 -IPA:max_jobs=4

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.27.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.27.xml.
