SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant BL480c
(1.86 GHz, Intel Xeon processor E5320)

SPECfp®2006 = 10.9

CPU2006 license: 3 Test date: Feb-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Jan-2007
Tested by: Hewlett-Packard Company Software Availability: Nov-2006

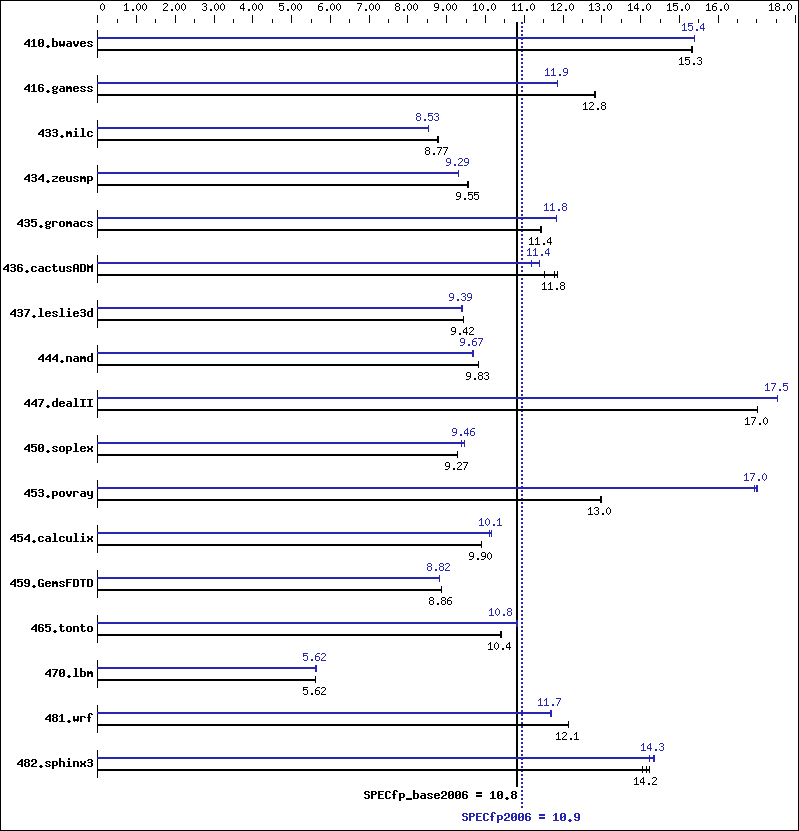

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5320
CPU Characteristics: 1.86 GHz, 2x4 MB L2 shared, 1066 MHz system bus
CPU MHz: 1860
FPU: Integrated
CPU(s) enabled: 1 core, 1 chip, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB PC2-5300F CL5)
Disk Subsystem: 1x72 GB 10k SAS
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64)
kernel 2.6.16.21-0.8-default
Compiler: Intel C++ Compiler for Intel EM64T-based
applications, Version 9.1
Build 20061101, Package ID: l_cc_c_9.1.045
Intel Fortran Compiler for Intel EM64T-based
applications, Version 9.1
Build 20061101, Package ID: l_fc_c_9.1.040
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 887 15.3  887 15.3  888 15.3  883 15.4  883 15.4  883 15.4
416.gamess 1525 12.8  1527 12.8  1527 12.8  1651 11.9  1652 11.8  1651 11.9
433.milc 1047 8.77 1047 8.76 1046 8.78 1076 8.53 1076 8.53 1077 8.52
434.zeusmp 953 9.55 953 9.55 953 9.55 979 9.29 979 9.29 979 9.29
435.gromacs 624 11.5  624 11.4  625 11.4  604 11.8  603 11.8  603 11.8
436.cactusADM 1008 11.9  1014 11.8  1037 11.5  1050 11.4  1068 11.2  1049 11.4
437.leslie3d 998 9.42 997 9.43 997 9.42 1001 9.39 1001 9.39 1002 9.38
444.namd 816 9.83 816 9.83 816 9.83 829 9.67 829 9.67 828 9.68
447.dealII 672 17.0  672 17.0  672 17.0  652 17.5  653 17.5  652 17.5
450.soplex 900 9.27 900 9.27 900 9.27 882 9.46 890 9.38 881 9.46
453.povray 410 13.0  410 13.0  409 13.0  313 17.0  314 16.9  313 17.0
454.calculix 834 9.90 833 9.90 834 9.90 813 10.2  817 10.1  813 10.1
459.GemsFDTD 1198 8.86 1197 8.86 1198 8.86 1203 8.82 1204 8.81 1202 8.82
465.tonto 947 10.4  946 10.4  948 10.4  910 10.8  911 10.8  908 10.8
470.lbm 2446 5.62 2446 5.62 2445 5.62 2440 5.63 2446 5.62 2447 5.62
481.wrf 920 12.1  921 12.1  920 12.1  954 11.7  957 11.7  958 11.7
482.sphinx3 1370 14.2  1376 14.2  1386 14.1  1358 14.4  1370 14.2  1359 14.3

Platform Notes

Power Regulator set to Static High Performance Mode in BIOS.
Adjacent Sector Prefetch Disabled in BIOS.
"/usr/bin/taskset" used to bind processes to CPUs.
Environment stack size set to 'unlimited'
Single user Kernel used

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

C++ benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

Fortran benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-ic91-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-ic91-flags.xml.
