SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant BL480c
(1.86 GHz, Intel Xeon processor E5320)

CPU2006 license: 3 Test date: Feb-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Jan-2007
Tested by: Hewlett-Packard Company Software Availability: Nov-2006

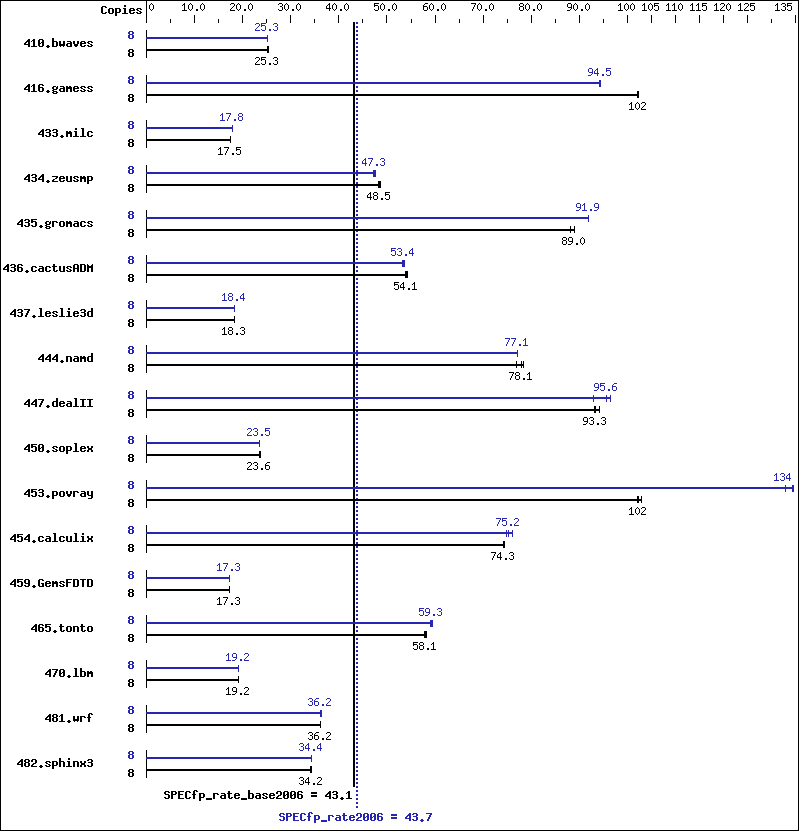

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5320
CPU Characteristics: 1.86 GHz, 2x4 MB L2 shared, 1066 MHz system bus
CPU MHz: 1860
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB PC2-5300F CL5)
Disk Subsystem: 1x72 GB 10k SAS
Other Hardware: None
Software
Operating System: SuSE Linux Enterprise Server 10 (x86_64)
kernel 2.6.16.21-0.8-smp
Compiler: Intel C++ Compiler for Intel EM64T-based
applications, Version 9.1
Build 20061101, Package ID: l_cc_c_9.1.045
Intel Fortran Compiler for Intel EM64T-based
applications, Version 9.1
Build 20061101, Package ID: l_fc_c_9.1.040
Auto Parallel: No
File System: ext2
System State: Multi-user run level 3
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 4303 25.3 4304 25.3 4313 25.2 8 4304 25.3 4304 25.3 4309 25.2
416.gamess 8 1532 102   1530 102   1533 102   8 1661 94.3 1658 94.5 1658 94.5
433.milc 8 4182 17.6 4185 17.5 4186 17.5 8 4122 17.8 4124 17.8 4122 17.8
434.zeusmp 8 1511 48.2 1495 48.7 1501 48.5 8 1526 47.7 1542 47.2 1538 47.3
435.gromacs 8 642 89.0 649 88.1 642 89.0 8 622 91.9 622 91.9 622 91.9
436.cactusADM 8 1766 54.1 1765 54.2 1774 53.9 8 1790 53.4 1784 53.6 1796 53.2
437.leslie3d 8 4092 18.4 4113 18.3 4116 18.3 8 4097 18.4 4097 18.4 4103 18.3
444.namd 8 822 78.1 834 76.9 819 78.3 8 832 77.1 833 77.1 832 77.2
447.dealII 8 972 94.1 981 93.3 982 93.2 8 984 93.0 957 95.6 949 96.5
450.soplex 8 2830 23.6 2826 23.6 2830 23.6 8 2836 23.5 2830 23.6 2833 23.5
453.povray 8 414 103   417 102   416 102   8 317 134   316 135   321 133
454.calculix 8 887 74.4 889 74.3 889 74.2 8 868 76.1 877 75.2 881 74.9
459.GemsFDTD 8 4898 17.3 4900 17.3 4893 17.3 8 4906 17.3 4900 17.3 4900 17.3
465.tonto 8 1354 58.1 1356 58.1 1363 57.8 8 1322 59.6 1331 59.1 1327 59.3
470.lbm 8 5739 19.2 5738 19.2 5756 19.1 8 5748 19.1 5737 19.2 5737 19.2
481.wrf 8 2471 36.2 2472 36.2 2471 36.2 8 2469 36.2 2459 36.3 2465 36.2
482.sphinx3 8 4558 34.2 4562 34.2 4558 34.2 8 4537 34.4 4540 34.3 4536 34.4

Platform Notes

Power Regulator set to Static High Performance Mode in BIOS.
Adjacent Sector Prefetch Disabled in BIOS.
"/usr/bin/taskset" used to bind processes to CPUs.
Environment stack size set to 'unlimited'

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64   -nofor_main
436.cactusADM:  -DSPEC_CPU_LP64   -nofor_main
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64   -nofor_main
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_CASE_FLAG   -DSPEC_CPU_LINUX
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast

C++ benchmarks:

 -fast

Fortran benchmarks:

 -fast

Benchmarks using both Fortran and C:

 -fast

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icc   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

C++ benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

Fortran benchmarks:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast

Benchmarks using both Fortran and C:

 -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -auto_ilp32

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-ic91-flags.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-ic91-flags.xml.
