| CPU2006 license: | 3 | Test date: | Mar-2007 |
|---|---|---|---|
| Test sponsor: | Hewlett-Packard Company | Hardware Availability: | Feb-2007 |
| Tested by: | Hewlett-Packard Company | Software Availability: | Sep-2006 |
| Hardware | |
|---|---|
| CPU Name: | AMD Opteron 8220 |
| CPU Characteristics: | |
| CPU MHz: | 2800 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 4 chips, 2 cores/chip |
| CPU(s) orderable: | 2,4 chips |
| Primary Cache: | 64 KB I + 64 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 32 GB (16x2 GB, PC2-5300P CL5) |
| Disk Subsystem: | 2x72 GB 10 K SAS |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | SuSE Linux Enterprise Server 9 (x86_64) kernel 2.6.5-7.244-smp |
| Compiler: | QLogic PathScale Compiler Suite, Release 2.5 |
| Auto Parallel: | No |
| File System: | ext2 |
| System State: | Multi-user, run level 3 |
| Base Pointers: | 32/64-bit |
| Peak Pointers: | 32/64-bit |
| Other Software: | SmartHeap 8.0 32 bit Library for Linux |

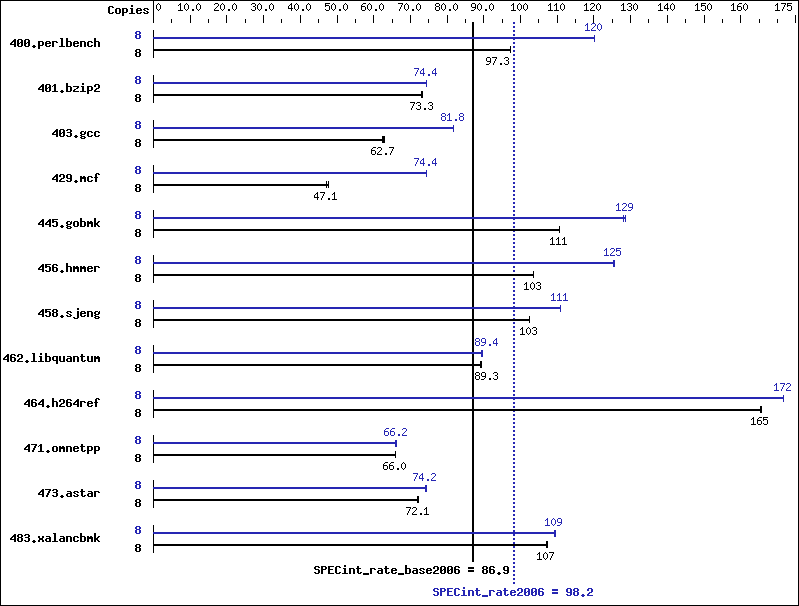

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 8 | 802 | 97.4 | 803 | 97.3 | 804 | 97.3 | 8 | 651 | 120 | 651 | 120 | 651 | 120 |
| 401.bzip2 | 8 | 1053 | 73.3 | 1053 | 73.3 | 1056 | 73.1 | 8 | 1037 | 74.4 | 1037 | 74.5 | 1039 | 74.3 |
| 403.gcc | 8 | 1032 | 62.4 | 1028 | 62.7 | 1025 | 62.8 | 8 | 787 | 81.8 | 788 | 81.8 | 787 | 81.9 |
| 429.mcf | 8 | 1534 | 47.6 | 1547 | 47.1 | 1549 | 47.1 | 8 | 980 | 74.4 | 981 | 74.3 | 981 | 74.4 |
| 445.gobmk | 8 | 758 | 111 | 759 | 111 | 758 | 111 | 8 | 652 | 129 | 653 | 129 | 655 | 128 |
| 456.hmmer | 8 | 721 | 103 | 721 | 104 | 722 | 103 | 8 | 595 | 125 | 596 | 125 | 595 | 126 |
| 458.sjeng | 8 | 944 | 103 | 944 | 103 | 944 | 103 | 8 | 874 | 111 | 873 | 111 | 874 | 111 |
| 462.libquantum | 8 | 1863 | 89.0 | 1855 | 89.4 | 1856 | 89.3 | 8 | 1855 | 89.4 | 1853 | 89.4 | 1851 | 89.6 |
| 464.h264ref | 8 | 1068 | 166 | 1071 | 165 | 1071 | 165 | 8 | 1031 | 172 | 1031 | 172 | 1031 | 172 |
| 471.omnetpp | 8 | 757 | 66.1 | 757 | 66.0 | 757 | 66.0 | 8 | 757 | 66.0 | 755 | 66.3 | 755 | 66.2 |
| 473.astar | 8 | 780 | 72.0 | 779 | 72.1 | 779 | 72.1 | 8 | 756 | 74.2 | 757 | 74.2 | 756 | 74.3 |
| 483.xalancbmk | 8 | 515 | 107 | 516 | 107 | 516 | 107 | 8 | 504 | 109 | 505 | 109 | 505 | 109 |
Platform Notes
Node interleaving is disabled
General Notes
taskset utility used to bind CPU(s) to processes Binaries supplied by AMD
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 403.gcc: | -DSPEC_CPU_LP64 |
| 429.mcf: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Base Optimization Flags
C benchmarks:
| -Ofast |
C++ benchmarks:
| -Ofast -m32 -L/spec/mpaton/6v1.0/amd512K8.lib/microquill/lib -lsmartheap |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX_X64 |
| 401.bzip2: | -DSPEC_CPU_LP64 |
| 445.gobmk: | -DSPEC_CPU_LP64 |
| 456.hmmer: | -DSPEC_CPU_LP64 |
| 458.sjeng: | -DSPEC_CPU_LP64 |
| 462.libquantum: | -DSPEC_CPU_LP64 -DSPEC_CPU_LINUX |
| 464.h264ref: | -DSPEC_CPU_LP64 |
| 483.xalancbmk: | -DSPEC_CPU_LINUX |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -Ofast |
| 401.bzip2: | -O3 -LNO:ou_prod_max=10 -OPT:Ofast -OPT:alias=disjoint |
| 403.gcc: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -m32 -O3 -OPT:Ofast |
| 429.mcf: | -m32 -O2 -ipa -L/spec/mpaton/6v1.0/amd512K8.lib/microquill/lib -lsmartheap |
| 445.gobmk: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -OPT:alias=disjoint -LNO:simd=0 -LNO:minvariant=off -WOPT:retype_expr=on |
| 456.hmmer: | -O2 -OPT:alias=disjoint -WOPT:aggstr=0 -CG:cflow=0 |
| 458.sjeng: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=50000 -IPA:pu_reorder=2 |
| 462.libquantum: | -O3 -ipa -CG:local_fwd_sched=on -IPA:space=1000 |
| 464.h264ref: | -fb_create fbdata(pass 1) -fb_opt fbdata(pass 2) -O3 -IPA:plimit=20000 -OPT:alias=disjoint -LNO:prefetch=0 |
