SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

NovaScale B260 (Intel Xeon processor
E5335,2.00GHz)

SPECfp®2006 = 11.1

CPU2006 license: 20 Test date: Feb-2007
Test sponsor: Bull SAS Hardware Availability: Jan-2007
Tested by: Bull SAS Software Availability: Dec-2006

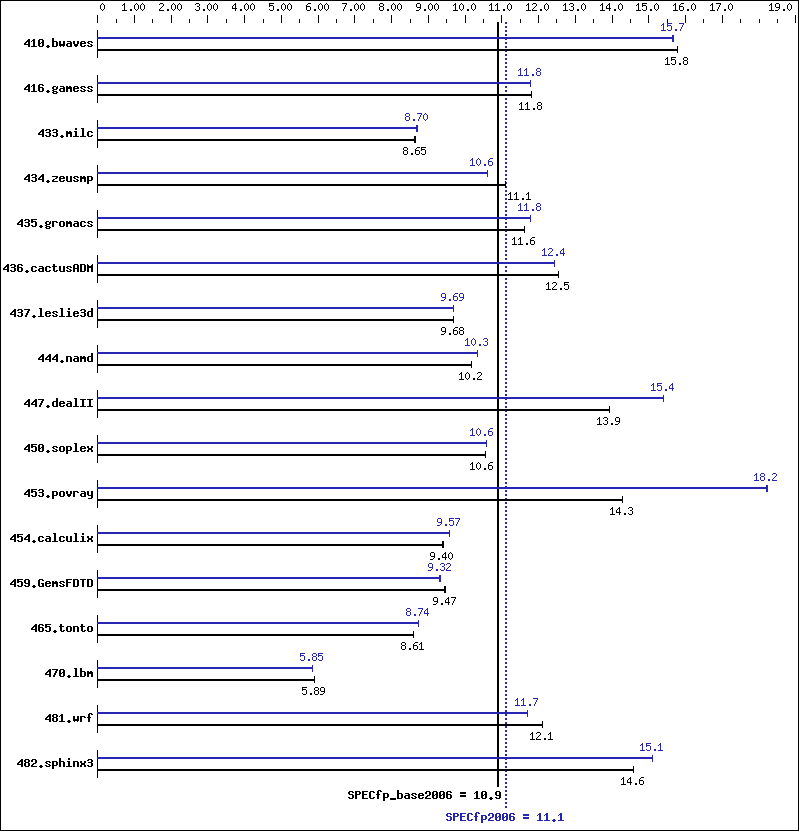

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5335
CPU Characteristics: 2.00 GHz, 8MB L2, 1333MHz bus
CPU MHz: 2000
FPU: Integrated
CPU(s) enabled: 1 core, 1 chip, 4 cores/chip
CPU(s) orderable: 1 to 2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB (2GB DIMMx4, FB-DIMM PC2-5300F ECC CL5)
Disk Subsystem: 73 GB SAS, 10000RPM
Other Hardware: None
Software
Operating System: Windows Server 2003 Enterprise Edition (32 bits)
Service Pack1
Compiler: Intel C++ Compiler for IA32 version 9.1
Package ID W_CC_C_9.1.033 Build no 20061103Z
Intel Fortran Compiler for IA32 version 9.1
Package ID W_FC_C_9.1.033 Build no 20061103Z
Microsoft Visual Studio .NET 2003 (lib & linker)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill SmartHeap Library 8.0 (shlW32M.lib)

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 862 15.8  862 15.8  862 15.8  868 15.7  868 15.7  869 15.6
416.gamess 1659 11.8  1659 11.8  1659 11.8  1663 11.8  1663 11.8  1663 11.8
433.milc 1061 8.65 1065 8.62 1061 8.65 1059 8.67 1055 8.70 1055 8.70
434.zeusmp 820 11.1  820 11.1  820 11.1  858 10.6  858 10.6  858 10.6
435.gromacs 615 11.6  614 11.6  615 11.6  607 11.8  607 11.8  607 11.8
436.cactusADM 952 12.5  952 12.5  952 12.5  962 12.4  961 12.4  961 12.4
437.leslie3d 971 9.68 971 9.68 971 9.68 970 9.69 970 9.69 970 9.69
444.namd 789 10.2  789 10.2  789 10.2  777 10.3  777 10.3  777 10.3
447.dealII 821 13.9  822 13.9  822 13.9  743 15.4  743 15.4  743 15.4
450.soplex 790 10.6  790 10.6  790 10.6  787 10.6  788 10.6  787 10.6
453.povray 373 14.3  372 14.3  372 14.3  292 18.2  292 18.2  292 18.2
454.calculix 878 9.40 878 9.40 878 9.40 863 9.57 862 9.57 862 9.57
459.GemsFDTD 1123 9.45 1120 9.47 1120 9.47 1139 9.31 1139 9.32 1139 9.32
465.tonto 1143 8.61 1144 8.61 1143 8.61 1126 8.74 1126 8.74 1126 8.74
470.lbm 2334 5.89 2331 5.89 2334 5.89 2349 5.85 2349 5.85 2349 5.85
481.wrf 922 12.1  922 12.1  922 12.1  955 11.7  955 11.7  956 11.7
482.sphinx3 1335 14.6  1335 14.6  1336 14.6  1291 15.1  1291 15.1  1291 15.1

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F950000000    -link /FORCE:MULTIPLE

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/flags.20090714.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/flags.20090714.00.xml.
