SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant DL585 G2

CPU2006 license: 3 Test date: Feb-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Sep-2006
Tested by: Hewlett-Packard Company Software Availability: Jan-2007

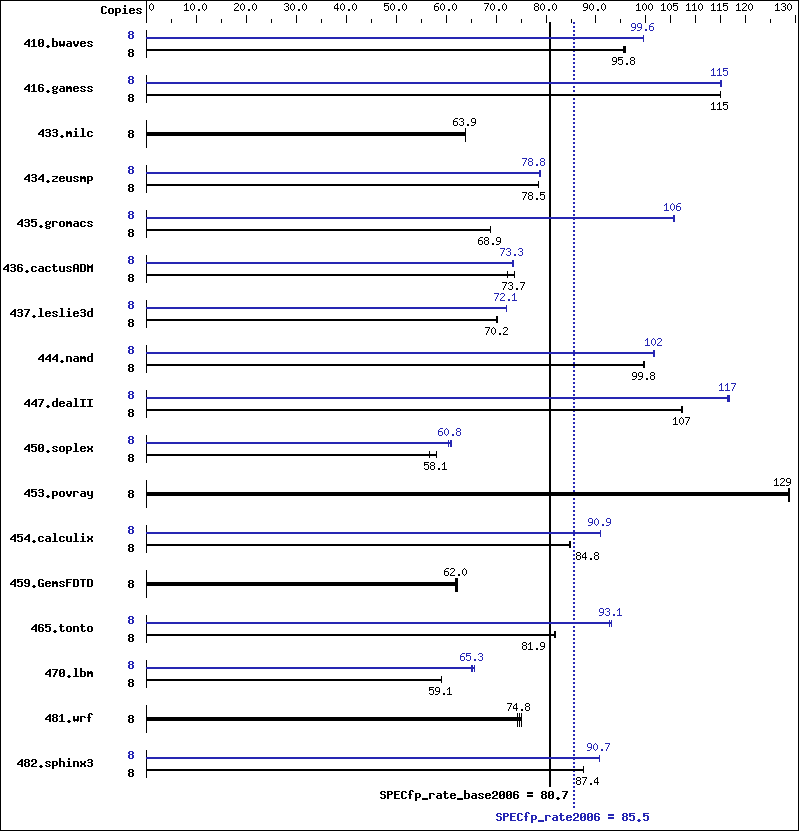

Benchmark results graph
Hardware
CPU Name: AMD Opteron 8220 SE
CPU Characteristics:
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 8 cores, 4 chips, 2 cores/chip
CPU(s) orderable: 2,4 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 32 GB (16x2 GB, PC2-5300P CL5)
Disk Subsystem: 72 GB 10K SAS
Other Hardware: None
Software
Operating System: Solaris 10 6/06
Compiler: Sun Studio 11 with Patches
Auto Parallel: No
File System: ufs
System State: Default
Base Pointers: 64-bit
Peak Pointers: 32/64-bit
Other Software: None

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 1138 95.5 1135 95.8 1135 95.8 8 1092 99.6 1093 99.5 1092 99.6
416.gamess 8 1364 115   1364 115   1363 115   8 1363 115   1362 115   1364 115
433.milc 8 1149 63.9 1150 63.9 1149 63.9 8 1149 63.9 1150 63.9 1149 63.9
434.zeusmp 8 928 78.5 926 78.6 928 78.4 8 923 78.9 925 78.7 923 78.8
435.gromacs 8 830 68.8 829 68.9 829 68.9 8 541 106   542 105   541 106
436.cactusADM 8 1297 73.7 1297 73.7 1324 72.2 8 1305 73.2 1300 73.6 1303 73.3
437.leslie3d 8 1072 70.2 1071 70.2 1069 70.3 8 1043 72.1 1043 72.1 1043 72.1
444.namd 8 645 99.5 643 99.8 643 99.8 8 631 102   632 101   631 102
447.dealII 8 853 107   852 107   855 107   8 784 117   787 116   785 117
450.soplex 8 1178 56.7 1148 58.1 1147 58.2 8 1097 60.8 1104 60.4 1091 61.2
453.povray 8 331 129   331 129   331 129   8 331 129   331 129   331 129
454.calculix 8 778 84.8 778 84.8 779 84.8 8 726 90.9 726 91.0 726 90.9
459.GemsFDTD 8 1362 62.3 1372 61.9 1370 62.0 8 1362 62.3 1372 61.9 1370 62.0
465.tonto 8 962 81.9 964 81.6 962 81.9 8 846 93.1 850 92.7 846 93.1
470.lbm 8 1861 59.1 1859 59.1 1859 59.1 8 1676 65.6 1691 65.0 1682 65.3
481.wrf 8 1189 75.1 1195 74.8 1201 74.4 8 1189 75.1 1195 74.8 1201 74.4
482.sphinx3 8 1784 87.4 1784 87.4 1783 87.4 8 1720 90.7 1719 90.7 1720 90.7

Operating System Notes


 Processes were bound to cores using "submit" and "pbind".


 ulimit -s unlimited  (shell): increases stack

 The following patches were applied to Sun Studio 11 compiler:
 120759-09 : x86/x64
 121016-05 : x86 C
 121020-04 : x86 F90
 121022-02 : x86 F90
 121018-08 : x86 C++

Platform Notes


 Node Interleaving was disabled in BIOS

Base Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -fast   -xipo=2   -xarch=amd64a

C++ benchmarks:

 -fast   -xipo=2   -xarch=amd64a   -library=stlport4

Fortran benchmarks:

 -fast   -xipo=2   -xarch=amd64a

Benchmarks using both Fortran and C:

 -fast(cc)   -fast(f90)   -xipo=2   -xarch=amd64a

Base Other Flags

C benchmarks:

 -V

C++ benchmarks:

 -verbose=version

Fortran benchmarks:

 -V

Benchmarks using both Fortran and C:

 -V

Peak Compiler Invocation

C benchmarks:

 cc

C++ benchmarks:

 CC

Fortran benchmarks:

 f90

Benchmarks using both Fortran and C:

 cc   f90

Peak Portability Flags

433.milc:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_WORDS_LITTLEENDIAN

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  -fast   -xarch=amd64a   -xpagesize=2m   -W2,-Ainline:inc=200   -W2,-Ainline:cs=500   -xprefetch_level=3
482.sphinx3:  -fast   -xarch=amd64a   -xrestrict   -xipo=2   -xprefetch=auto   -xpagesize=2m   -Wd,-iropt-prof   -W2,-Ashort_ldst:ldld   -W2,-Ainline:rs=50   -M /usr/lib/ld/map.bssalign

C++ benchmarks:

444.namd:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xarch=amd64a   -xipo=2   -library=stlport4
447.dealII:  -fast   -xarch=amd64a   -xipo=2   -xvector   -Qoption iropt -Abcopy   -xalias_level   -xrestrict   -xregs=frameptr   -library=stlport4
450.soplex:  -fast   -xipo=2   -xarch=sse2a   -library=stlport4
453.povray:  basepeak = yes

Fortran benchmarks:

410.bwaves:  -fast   -xarch=amd64a   -unroll=5   -stackvar   -xO4   -xipo=2   -xprefetch_level=3   -Qoption iropt -Rloop_dist
416.gamess:  -fast   -xarch=amd64a   -xipo=2   -xprefetch_level=3
434.zeusmp:  -fast   -xarch=amd64a   -xipo=2   -xregs=frameptr
437.leslie3d:  -fast   -xipo=2   -xarch=sse2a
459.GemsFDTD:  basepeak = yes
465.tonto:  -xprofile=collect:./feedback(pass 1)   -xprofile=use:./feedback(pass 2)   -fast   -xarch=amd64a   -xipo=2   -xvector=lib   -xalias   -xdepend   -lbsdmalloc

Benchmarks using both Fortran and C:

435.gromacs:  -fast(cc)   -fast(f90)   -xipo=2   -xarch=amd64a   -Wu,-fsimple=3   -Qoption ube -fsimple=3
436.cactusADM:  -fast(cc)   -fast(f90)   -xipo=2   -xarch=amd64a
454.calculix:  -fast(cc)   -fast(f90)   -xarch=amd64a   -xpagesize=2m   -xprefetch=auto   -xprefetch_level=3   -W2,-Ainline:inc=200   -W2,-Ainline:cs=500   -unroll=5   -stackvar   -xO4   -xipo=2   -Qoption iropt -Rloop_dist
481.wrf:  basepeak = yes

Peak Other Flags

C benchmarks:

 -V

C++ benchmarks:

 -verbose=version

Fortran benchmarks:

 -V

Benchmarks using both Fortran and C:

 -V

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/HP-Solaris-Sun-Studio-Opteron.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/HP-Solaris-Sun-Studio-Opteron.xml.
