SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Itautec

Servidor Itautec LX211 (Intel Xeon E5320)

CPU2006 license: 9001 Test date: Feb-2007
Test sponsor: Itautec Hardware Availability: Feb-2007
Tested by: Itautec Software Availability: May-2006

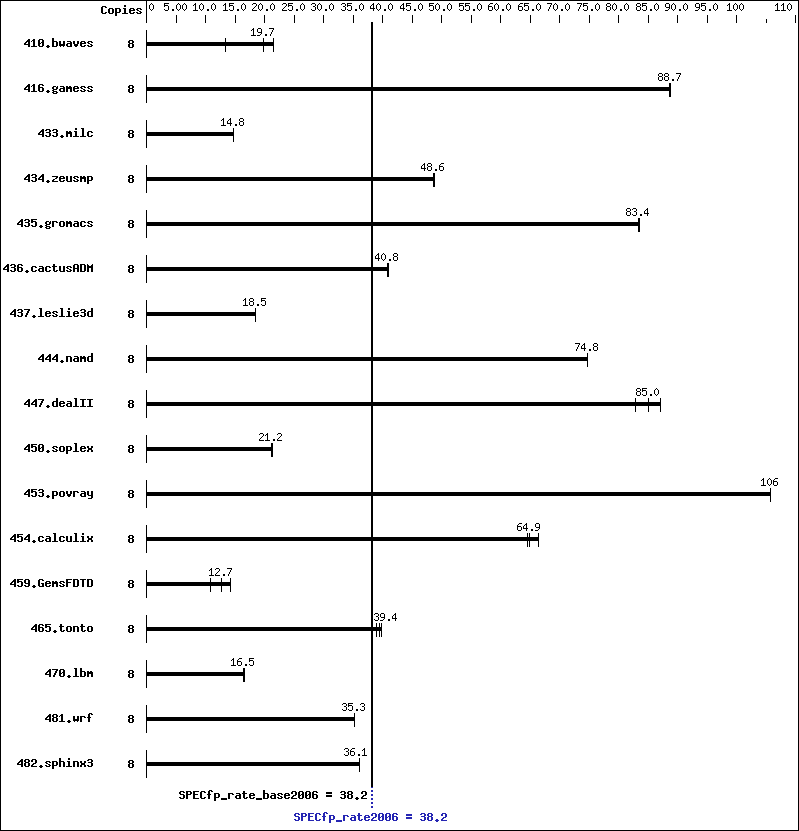

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5320
CPU Characteristics: 1066MHz system bus
CPU MHz: 1860
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1-2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 6 GB (6x1GB DDR2-RAM PC2-5300F CAS 5-5-5)
Disk Subsystem: 120 GB SATA, 7200RPM
Other Hardware: None
Software
Operating System: Windows Server 2003 Enterprise Edition + SP1
(32-bit)
Compiler: Intel C++ Compiler for IA32 version 9.1
Package ID W_CC_C_9.1.025 Build no 20060519Z
Intel Fortran Compiler for IA32 version 9.1
Package ID W_FC_C_9.1.025 Build no 20060519Z
Microsoft Visual Studio .NET 2003 7.1.3088 (for
libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: Microquill SmartHeap Library v.8.0 for SMP

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 8115 13.4 5068 21.5 5507 19.7 8 8115 13.4 5068 21.5 5507 19.7
416.gamess 8 1767 88.7 1766 88.7 1766 88.7 8 1767 88.7 1766 88.7 1766 88.7
433.milc 8 4962 14.8 4961 14.8 4963 14.8 8 4962 14.8 4961 14.8 4963 14.8
434.zeusmp 8 1490 48.8 1499 48.6 1498 48.6 8 1490 48.8 1499 48.6 1498 48.6
435.gromacs 8 684 83.5 685 83.4 685 83.4 8 684 83.5 685 83.4 685 83.4
436.cactusADM 8 2344 40.8 2341 40.8 2335 40.9 8 2344 40.8 2341 40.8 2335 40.9
437.leslie3d 8 4066 18.5 4068 18.5 4064 18.5 8 4066 18.5 4068 18.5 4064 18.5
444.namd 8 859 74.7 858 74.8 858 74.8 8 859 74.7 858 74.8 858 74.8
447.dealII 8 1052 87.0 1104 82.9 1077 85.0 8 1052 87.0 1104 82.9 1077 85.0
450.soplex 8 3150 21.2 3127 21.3 3161 21.1 8 3150 21.2 3127 21.3 3161 21.1
453.povray 8 402 106   403 106   402 106   8 402 106   403 106   402 106
454.calculix 8 1018 64.9 1023 64.5 993 66.4 8 1018 64.9 1023 64.5 993 66.4
459.GemsFDTD 8 6662 12.7 5986 14.2 7835 10.8 8 6662 12.7 5986 14.2 7835 10.8
465.tonto 8 1996 39.4 2022 38.9 1977 39.8 8 1996 39.4 2022 38.9 1977 39.8
470.lbm 8 6656 16.5 6656 16.5 6651 16.5 8 6656 16.5 6656 16.5 6651 16.5
481.wrf 8 2532 35.3 2532 35.3 2533 35.3 8 2532 35.3 2532 35.3 2533 35.3
482.sphinx3 8 4326 36.0 4324 36.1 4318 36.1 8 4326 36.0 4324 36.1 4318 36.1

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlSMPMt.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlSMPMt.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Peak Optimization Flags

C benchmarks:

433.milc:  basepeak = yes
470.lbm:  basepeak = yes
482.sphinx3:  basepeak = yes

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  basepeak = yes
450.soplex:  basepeak = yes
453.povray:  basepeak = yes

Fortran benchmarks:

410.bwaves:  basepeak = yes
416.gamess:  basepeak = yes
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:  basepeak = yes
436.cactusADM:  basepeak = yes
454.calculix:  basepeak = yes
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Itautec-ic91-flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Itautec-ic91-flags.20090714.xml.
