SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

ProLiant BL460c
(1.86 GHz, Intel Xeon processor E5320)

CPU2006 license: 3 Test date: Feb-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Jan-2007
Tested by: Hewlett-Packard Company Software Availability: Nov-2006

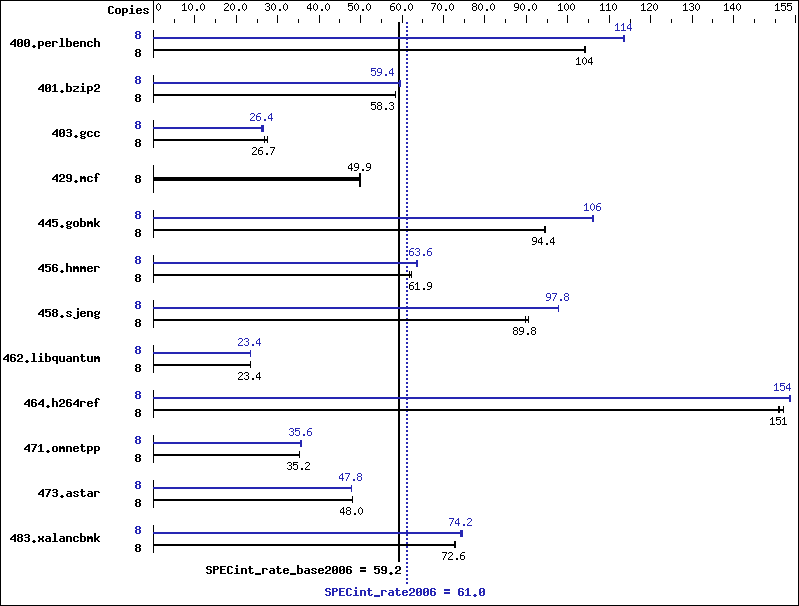

Benchmark results graph
Hardware
CPU Name: Intel Xeon E5320
CPU Characteristics: 1.86 GHz, 2x4 MB L2 shared, 1066 MHz system bus
CPU MHz: 1860
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2 GB PC2-5300 CL5)
Disk Subsystem: 1x72 GB 10k SAS
Other Hardware: None
Software
Operating System: Windows Server 2003 Enterprise x64 Edition SP1
Compiler: Intel C++ Compiler for 32-bit applications,
Version 9.1, Build 20061103Z
Package ID: W_CC_C_9.1.033
Microsoft Visual Studio .NET 2003
(v7.1.3088, for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill SmartHeap Library 8.0

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 8 750 104   750 104   752 104   8 687 114   689 114   687 114
401.bzip2 8 1324 58.3 1320 58.5 1323 58.3 8 1300 59.4 1297 59.5 1300 59.4
403.gcc 8 2346 27.5 2410 26.7 2411 26.7 8 2440 26.4 2421 26.6 2471 26.1
429.mcf 8 1463 49.9 1466 49.8 1460 50.0 8 1463 49.9 1466 49.8 1460 50.0
445.gobmk 8 889 94.4 888 94.5 889 94.4 8 791 106   791 106   791 106
456.hmmer 8 1200 62.2 1207 61.9 1206 61.9 8 1175 63.5 1173 63.6 1173 63.6
458.sjeng 8 1071 90.4 1078 89.8 1078 89.8 8 989 97.8 989 97.8 991 97.7
462.libquantum 8 7083 23.4 7076 23.4 7067 23.5 8 7071 23.4 7074 23.4 7074 23.4
464.h264ref 8 1165 152   1174 151   1173 151   8 1154 153   1151 154   1153 154
471.omnetpp 8 1418 35.2 1423 35.1 1420 35.2 8 1404 35.6 1405 35.6 1403 35.6
473.astar 8 1170 48.0 1170 48.0 1170 48.0 8 1176 47.8 1175 47.8 1174 47.8
483.xalancbmk 8 756 73.0 760 72.6 761 72.5 8 741 74.5 745 74.1 744 74.2

Platform Notes

Power Regulator set to Static High Performance Mode in BIOS.
Adjacent Sector Prefetch disabled in BIOS.

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Base Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Base Optimization Flags

C benchmarks:

 -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Base Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Peak Portability Flags

403.gcc:  -DSPEC_CPU_WIN32
464.h264ref:  -DSPEC_CPU_NO_INTTYPES   -DWIN32

Peak Optimization Flags

C benchmarks:

400.perlbench:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE
401.bzip2:  Same as 400.perlbench
403.gcc:  Same as 400.perlbench
429.mcf:  basepeak = yes
445.gobmk:  Same as 400.perlbench
456.hmmer:  Same as 400.perlbench
458.sjeng:  Same as 400.perlbench
462.libquantum:  Same as 400.perlbench
464.h264ref:  Same as 400.perlbench

C++ benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F512000000   shlw32m.lib    -link /FORCE:MULTIPLE

Peak Other Flags

C benchmarks:

403.gcc:  -Dalloca=_alloca

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/hp-ic91-flags.20090715.02.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/hp-ic91-flags.20090715.02.xml.
