SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

CELSIUS R540, Intel Xeon processor X5355

SPECfp®2006 = 16.6

CPU2006 license: 22 Test date: Feb-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Nov-2006
Tested by: Fujitsu Siemens Computers Software Availability: Nov-2006

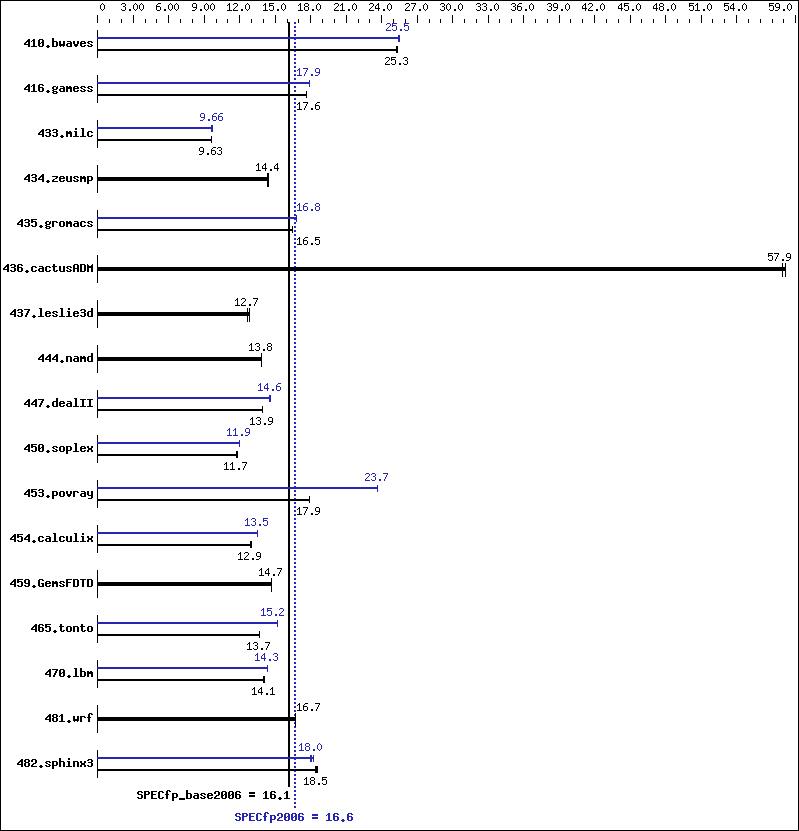

Benchmark results graph
Hardware
CPU Name: Intel Xeon X5355
CPU Characteristics: X5355
CPU MHz: 2667
FPU: Integrated
CPU(s) enabled: 8 cores, 2 chips, 4 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 8 GB (4x2 GB DDR2 5300F, 2 rank, CL5-5-5,with ECC)
Disk Subsystem: SATA II 7200 rpm
Other Hardware: None
Software
Operating System: Windows XP, 64 bit Edition
Compiler: Intel C++ Compiler for EM64T-based applications
- version 9.1, Build 20061104
Intel Fortran Compiler for EM64T-based
applications
- version 9.1, Build 20061104
Microsoft Visual Studio 2005 (for libraries)
Auto Parallel: Yes
File System: NTFS
System State: Default
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: None

Results Table

Benchmark Base Peak
Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 536 25.4  537 25.3  537 25.3  533 25.5  535 25.4  534 25.5
416.gamess 1110 17.6  1111 17.6  1111 17.6  1094 17.9  1094 17.9  1093 17.9
433.milc 952 9.65 954 9.63 953 9.63 951 9.66 950 9.66 949 9.67
434.zeusmp 631 14.4  632 14.4  633 14.4  631 14.4  632 14.4  633 14.4
435.gromacs 433 16.5  433 16.5  433 16.5  424 16.8  424 16.8  424 16.8
436.cactusADM 206 57.9  205 58.2  206 57.9  206 57.9  205 58.2  206 57.9
437.leslie3d 734 12.8  741 12.7  741 12.7  734 12.8  741 12.7  741 12.7
444.namd 580 13.8  580 13.8  580 13.8  580 13.8  580 13.8  580 13.8
447.dealII 821 13.9  821 13.9  821 13.9  786 14.6  786 14.6  786 14.6
450.soplex 710 11.7  707 11.8  710 11.7  694 12.0  698 11.9  698 11.9
453.povray 298 17.9  298 17.9  298 17.9  225 23.7  225 23.7  225 23.7
454.calculix 637 13.0  637 12.9  637 12.9  611 13.5  611 13.5  611 13.5
459.GemsFDTD 722 14.7  723 14.7  722 14.7  722 14.7  723 14.7  722 14.7
465.tonto 720 13.7  719 13.7  720 13.7  649 15.2  649 15.2  649 15.2
470.lbm 973 14.1  983 14.0  974 14.1  959 14.3  959 14.3  959 14.3
481.wrf 669 16.7  670 16.7  670 16.7  669 16.7  670 16.7  670 16.7
482.sphinx3 1048 18.6  1056 18.5  1057 18.4  1070 18.2  1083 18.0  1081 18.0

Platform Notes

BIOS default settings have been used, except:
Snoop Filter Enabled
Adjacent Cache Line Prefetch Enabled

General Notes


For information about Fujitsu Siemens Computers in your country please see:
http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc8   -Qc99   ifort

Base Portability Flags

410.bwaves:  -DSPEC_CPU_P64
416.gamess:  -DSPEC_CPU_P64
433.milc:  -D_Complex=   -DSPEC_CPU_P64
434.zeusmp:  -DSPEC_CPU_P64
435.gromacs:  -D_Complex=   -DSPEC_CPU_P64
436.cactusADM:  -D_Complex=   -DSPEC_CPU_P64   -Qlowercase   /assume:underscore
437.leslie3d:  -DSPEC_CPU_P64
444.namd:  -DSPEC_CPU_P64   /TP
447.dealII:  -D_Complex=   -DSPEC_CPU_P64   -DBOOST_NO_INTRINSIC_WCHAR_T   -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG
450.soplex:  -DSPEC_CPU_P64
453.povray:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -D_Complex=   -DSPEC_CPU_P64   -DSPEC_CPU_NOZMODIFIER   -Qlowercase
459.GemsFDTD:  -DSPEC_CPU_P64
465.tonto:  -DSPEC_CPU_P64
470.lbm:  -D_Complex=   -DSPEC_CPU_P64
481.wrf:  -DSPEC_CPU_P64   -DSPEC_CPU_WINDOWS_ICL
482.sphinx3:  -D_Complex=   -DSPEC_CPU_P64

Base Optimization Flags

C benchmarks:

 -fast   -Qparallel   -F950000000

C++ benchmarks:

 -fast   -Qparallel   -Qcxx-features   -F950000000

Fortran benchmarks:

 -fast   -Qparallel   -F950000000

Benchmarks using both Fortran and C:

 -fast   -Qparallel   -F950000000

Peak Compiler Invocation

C benchmarks:

 icl   -Qvc8   -Qc99

C++ benchmarks:

 icl   -Qvc8

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc8   -Qc99   ifort

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

 -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000

C++ benchmarks:

444.namd:  basepeak = yes
447.dealII:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx-features   -F950000000
450.soplex:  Same as 447.dealII
453.povray:  Same as 447.dealII

Fortran benchmarks:

410.bwaves:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qparallel   -F950000000
416.gamess:  -fast   -F950000000
434.zeusmp:  basepeak = yes
437.leslie3d:  basepeak = yes
459.GemsFDTD:  basepeak = yes
465.tonto:  Same as 410.bwaves

Benchmarks using both Fortran and C:

435.gromacs:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -F950000000
436.cactusADM:  basepeak = yes
454.calculix:  Same as 435.gromacs
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.16.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.16.xml.
