SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

IBM Corporation

IBM BladeCenter HS21 XM (Intel Xeon 5120)

SPECfp®_rate2006 = Not Run

CPU2006 license: 11 Test date: Jan-2007
Test sponsor: IBM Corporation Hardware Availability: Feb-2007
Tested by: IBM Corporation Software Availability: Aug-2006

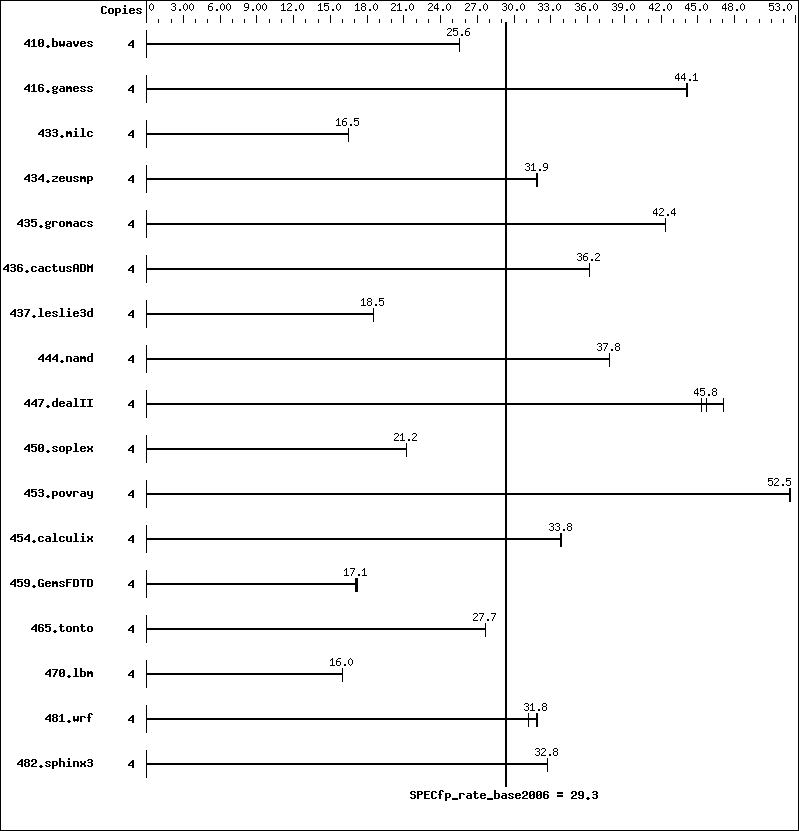

Benchmark results graph
Hardware
CPU Name: Intel Xeon 5120
CPU Characteristics: 1066MHz system bus
CPU MHz: 1866
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 4 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 16 GB (8 x 2GB DDR2-5300F ECC)
Disk Subsystem: 1 x 74 GB SAS, 1000 RPM
Other Hardware: None
Software
Operating System: Microsoft Windows Server 2003 Enterprise x64
Edition + SP1 (64-bit)
Compiler: Intel C++ Compiler for IA32 version 9.1
Build no 20060816
Intel Fortran Compiler for IA32 version 9.1
Build no 20060816
Microsoft Visual Studio .Net 2003 (for libraries)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: Not Applicable
Other Software: Smart Heap Library, Version 8

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 2125 25.6 2125 25.6 2125 25.6
416.gamess 4 1775 44.1 1775 44.1 1775 44.1
433.milc 4 2230 16.5 2230 16.5 2230 16.5
434.zeusmp 4 1141 31.9 1140 31.9 1142 31.9
435.gromacs 4 674 42.4 674 42.4 674 42.4
436.cactusADM 4 1321 36.2 1321 36.2 1321 36.2
437.leslie3d 4 2033 18.5 2030 18.5 2029 18.5
444.namd 4 849 37.8 849 37.8 849 37.8
447.dealII 4 1000 45.8 972 47.1 1010 45.3
450.soplex 4 1572 21.2 1573 21.2 1571 21.2
453.povray 4 405 52.5 405 52.5 405 52.5
454.calculix 4 975 33.8 973 33.9 976 33.8
459.GemsFDTD 4 2486 17.1 2481 17.1 2463 17.2
465.tonto 4 1422 27.7 1422 27.7 1423 27.7
470.lbm 4 3436 16.0 3435 16.0 3435 16.0
481.wrf 4 1405 31.8 1402 31.9 1431 31.2
482.sphinx3 4 2380 32.8 2381 32.7 2380 32.8

Base Compiler Invocation

C benchmarks:

 icl   -Qvc7.1   -Qc99

C++ benchmarks:

 icl   -Qvc7.1

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qvc7.1   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F950000000   shlw32m.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F950000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   /F950000000    -link /FORCE:MULTIPLE

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090714.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/Intel-ic91-flags.20090714.xml.
