| CPU2006 license: | 11 | Test date: | Jan-2007 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Feb-2007 |
| Tested by: | IBM Corporation | Software Availability: | Aug-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon E5310 |
| CPU Characteristics: | 1066MHz system bus |
| CPU MHz: | 1600 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 2 chips, 4 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 8 MB I+D on chip per chip, 4 MB shared / 2 cores |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8 x 2GB DDR2-5300F ECC) |
| Disk Subsystem: | 1 x 74 GB SAS, 1000 RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit) |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Build no 20060816 Intel Fortran Compiler for IA32 version 9.1 Build no 20060816 Microsoft Visual Studio .Net 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | Smart Heap Library, Version 8 |

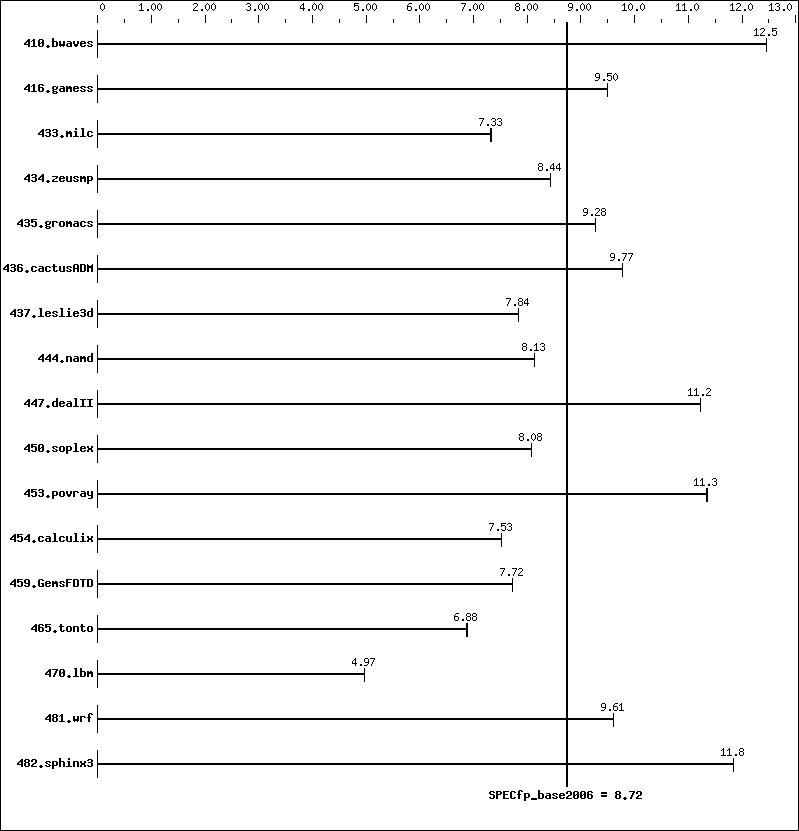

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 410.bwaves | 1091 | 12.5 | 1091 | 12.5 | 1091 | 12.5 | ||||||
| 416.gamess | 2061 | 9.50 | 2061 | 9.50 | 2062 | 9.50 | ||||||
| 433.milc | 1251 | 7.34 | 1252 | 7.33 | 1253 | 7.32 | ||||||
| 434.zeusmp | 1078 | 8.44 | 1078 | 8.44 | 1078 | 8.44 | ||||||
| 435.gromacs | 770 | 9.28 | 770 | 9.28 | 770 | 9.28 | ||||||
| 436.cactusADM | 1223 | 9.77 | 1223 | 9.77 | 1223 | 9.77 | ||||||
| 437.leslie3d | 1200 | 7.84 | 1200 | 7.84 | 1200 | 7.84 | ||||||
| 444.namd | 986 | 8.13 | 986 | 8.13 | 986 | 8.13 | ||||||
| 447.dealII | 1019 | 11.2 | 1019 | 11.2 | 1020 | 11.2 | ||||||
| 450.soplex | 1032 | 8.08 | 1032 | 8.08 | 1032 | 8.08 | ||||||
| 453.povray | 469 | 11.3 | 469 | 11.3 | 469 | 11.3 | ||||||
| 454.calculix | 1096 | 7.53 | 1096 | 7.53 | 1096 | 7.53 | ||||||
| 459.GemsFDTD | 1375 | 7.72 | 1375 | 7.72 | 1375 | 7.72 | ||||||
| 465.tonto | 1431 | 6.88 | 1431 | 6.87 | 1431 | 6.88 | ||||||
| 470.lbm | 2762 | 4.97 | 2762 | 4.98 | 2762 | 4.97 | ||||||
| 481.wrf | 1163 | 9.61 | 1163 | 9.61 | 1163 | 9.61 | ||||||
| 482.sphinx3 | 1647 | 11.8 | 1647 | 11.8 | 1647 | 11.8 | ||||||
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
