SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Bull SAS

Bull Escala PL450R+ (2100 MHz, 4 CPU)

CPU2006 license: 20 Test date: Jan-2007
Test sponsor: Bull SAS Hardware Availability: Feb-2006
Tested by: Bull SAS Software Availability: Dec-2006

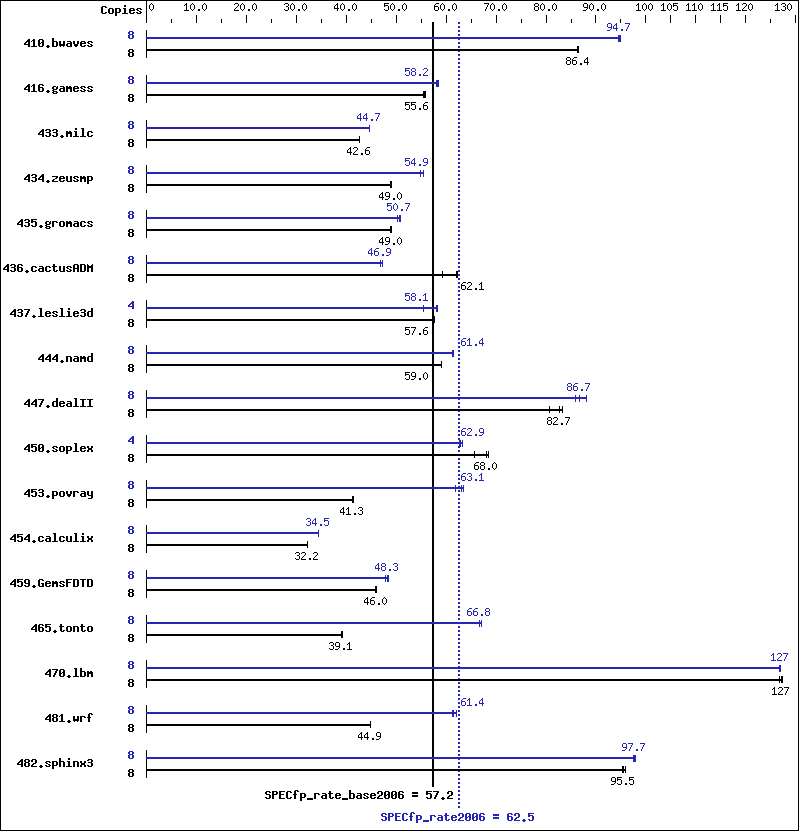

Benchmark results graph
Hardware
CPU Name: POWER5+
CPU Characteristics:
CPU MHz: 2100
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip, 2 threads/core
CPU(s) orderable: 1, 2 chips
Primary Cache: 64 KB I + 32 KB D on chip per core
Secondary Cache: 1920 KB I+D on chip per chip
L3 Cache: 36 MB I+D off chip per chip
Other Cache: None
Memory: 32 GB (8x4 GB)
Disk Subsystem: 2x73 GB SCSI, 15K RPM
Other Hardware: None
Software
Operating System: AIX 5L V5.3
Compiler: XL C/C++ Enterprise Edition Version 8.0 for AIX
with the December 2006 PTF
XL Fortran Enterprise Edition Version 10.1 for AIX
with the November 2006 PTF
Auto Parallel: No
File System: AIX/JFS2
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32/64-bit
Other Software: ESSL 4.2.0.4

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 8 1261 86.2 1258 86.4 1258 86.4 8 1148 94.7 1146 94.9 1151 94.5
416.gamess 8 2808 55.8 2820 55.5 2818 55.6 8 2693 58.2 2692 58.2 2681 58.4
433.milc 8 1724 42.6 1723 42.6 1725 42.6 8 1643 44.7 1643 44.7 1645 44.7
434.zeusmp 8 1485 49.0 1484 49.0 1493 48.8 8 1314 55.4 1327 54.9 1325 54.9
435.gromacs 8 1166 49.0 1165 49.0 1167 48.9 8 1122 50.9 1127 50.7 1135 50.3
436.cactusADM 8 1534 62.3 1613 59.3 1539 62.1 8 2027 47.2 2045 46.8 2038 46.9
437.leslie3d 8 1306 57.6 1303 57.7 1306 57.6 4 646 58.2 679 55.4 647 58.1
444.namd 8 1088 59.0 1088 59.0 1088 59.0 8 1045 61.4 1046 61.4 1046 61.3
447.dealII 8 1098 83.3 1133 80.8 1107 82.7 8 1066 85.8 1055 86.7 1039 88.1
450.soplex 8 981 68.0 1015 65.7 975 68.4 4 530 62.9 532 62.8 526 63.4
453.povray 8 1029 41.3 1032 41.3 1029 41.4 8 687 62.0 674 63.1 671 63.4
454.calculix 8 2047 32.2 2046 32.3 2047 32.2 8 1912 34.5 1915 34.5 1918 34.4
459.GemsFDTD 8 1844 46.0 1850 45.9 1847 46.0 8 1755 48.4 1775 47.8 1758 48.3
465.tonto 8 2012 39.1 2010 39.2 2016 39.0 8 1180 66.7 1179 66.8 1175 67.0
470.lbm 8 864 127   867 127   865 127   8 865 127   866 127   867 127
481.wrf 8 1991 44.9 1992 44.9 1991 44.9 8 1440 62.1 1458 61.3 1455 61.4
482.sphinx3 8 1634 95.5 1625 96.0 1634 95.4 8 1600 97.4 1595 97.7 1593 97.9

Operating System Notes


 ulimits set to unlimited

 bindprocessor command used on submit to bind each copy to a
 unique processor.

 Large page mode was set as follows:
 vmo -r -o lgpg_regions=900 -o lgpg_size=16777216
 SMT was ebabled using the AIX commands
 smtctl -m on -w boot
 bosboot -aD
 shutdown -rF

Base Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   /usr/bin/xlf95

Base Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Base Optimization Flags

C benchmarks:

 -qlanglvl=extc99   -O5   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads

C++ benchmarks:

 -O5   -qlargepage   -D_ILS_MACROS   -qrtti=all   -qipa=noobject   -blpdata   -qipa=threads

Fortran benchmarks:

 -O5   -qlargepage   -qsmallstack=dynlenonheap   -qipa=noobject   -blpdata   -qipa=threads

Benchmarks using both Fortran and C:

 -qlanglvl=extc99   -O5   -qlargepage   -D_ILS_MACROS   -qsmallstack=dynlenonheap   -qipa=noobject   -blpdata   -qipa=threads

Base Other Flags

C benchmarks:

 -bmaxdata:0x40000000   -qsuppress=1500-036

C++ benchmarks:

 -bmaxdata:0x50000000   -qsuppress=1500-036

Fortran benchmarks:

 -bmaxdata:0x50000000   -qalias=nostd   -qalias_size=200000000   -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036

Benchmarks using both Fortran and C:

 -bmaxdata:0x50000000   -qalias=nostd   -qalias_size=200000000   -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036

Peak Compiler Invocation

C benchmarks:

 /usr/vac/bin/xlc

C++ benchmarks:

 /usr/vacpp/bin/xlC

Fortran benchmarks:

 /usr/bin/xlf95

Benchmarks using both Fortran and C:

 /usr/vac/bin/xlc   /usr/bin/xlf95

Peak Portability Flags

410.bwaves:  -qfixed
416.gamess:  -qfixed
434.zeusmp:  -qfixed
435.gromacs:  -qfixed   -qextname
436.cactusADM:  -qfixed   -qextname
437.leslie3d:  -qfixed
454.calculix:  -qfixed   -qextname
481.wrf:  -DSPEC_CPU_AIX   -DNOUNDERSCORE
482.sphinx3:  -qchars=signed

Peak Optimization Flags

C benchmarks:

433.milc:  -qlanglvl=extc99   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -qalign=natural   -qipa=noobject   -blpdata   -qipa=threads
470.lbm:  -qlanglvl=extc99   -O5   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads
482.sphinx3:  -qlanglvl=extc99   -qpdf1(pass 1)   -qpdf2(pass 2)   -O4   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads

C++ benchmarks:

444.namd:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads
447.dealII:  -O5   -qlargepage   -D_ILS_MACROS   -qrtti=all   -D__IBM_FAST_VECTOR   -qipa=noobject   -blpdata   -qipa=threads
450.soplex:  -O4   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads
453.povray:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -q64   -qalign=natural   -lmass   -qipa=noobject   -blpdata   -qipa=threads

Fortran benchmarks:

410.bwaves:  -O5   -qlargepage   -qsmallstack=dynlenonheap   -qipa=noobject   -blpdata   -qipa=threads
416.gamess:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qessl   -lessl   -qipa=noobject   -blpdata   -qipa=threads
434.zeusmp:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -qipa=noobject   -blpdata   -qipa=threads
437.leslie3d:  -O5   -qlargepage   -qipa=noobject   -blpdata   -qipa=threads
459.GemsFDTD:  Same as 437.leslie3d
465.tonto:  -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -lmass   -qipa=noobject   -blpdata   -qipa=threads

Benchmarks using both Fortran and C:

435.gromacs:  -qlanglvl=extc99   -qpdf1(pass 1)   -qpdf2(pass 2)   -O5   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads
436.cactusADM:  -qlanglvl=extc99   -O5   -qlargepage   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads
454.calculix:  Same as 435.gromacs
481.wrf:  -qlanglvl=extc99   -O5   -qlargepage   -lmass   -qsmallstack=dynlenonheap   -D_ILS_MACROS   -qipa=noobject   -blpdata   -qipa=threads

Peak Other Flags

C benchmarks:

433.milc:  -bmaxdata:0x40000000   -qsuppress=1500-036
470.lbm:  -bmaxdata:0x30000000   -qsuppress=1500-036
482.sphinx3:  -qfdpr   -qsuppress=1500-036

C++ benchmarks:

444.namd:  -qfdpr   -qsuppress=1500-036
447.dealII:  -bmaxdata:0x50000000   -qsuppress=1500-036
450.soplex:  -bmaxdata:0x40000000   -qfdpr   -qsuppress=1500-036
453.povray:  -qsuppress=1500-036

Fortran benchmarks (except as noted below):

 -bmaxdata:0x50000000   -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036
416.gamess:  -bmaxdata:0x40000000   -qalias=nostd   -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036
434.zeusmp:  -bmaxdata:0x40000000   -qfdpr   -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036
437.leslie3d:  -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036
465.tonto:  -bmaxdata:0x20000000   -qalias=nostd   -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036

Benchmarks using both Fortran and C (except as noted below):

 -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036
436.cactusADM:  -bmaxdata:0x50000000   -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036
481.wrf:  -bmaxdata:0x30000000   -qsuppress=cmpmsg:1500-010   -qsuppress=1500-036

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.15.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.15.xml.

SPEC and SPECfp are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 10:51:31 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 21 February 2007.
