SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Fujitsu Siemens Computers

CELSIUS V840, AMD Opteron 2218

CPU2006 license: 22 Test date: Jan-2007
Test sponsor: Fujitsu Siemens Computers Hardware Availability: Nov-2006
Tested by: Fujitsu Siemens Computers Software Availability: Aug-2006

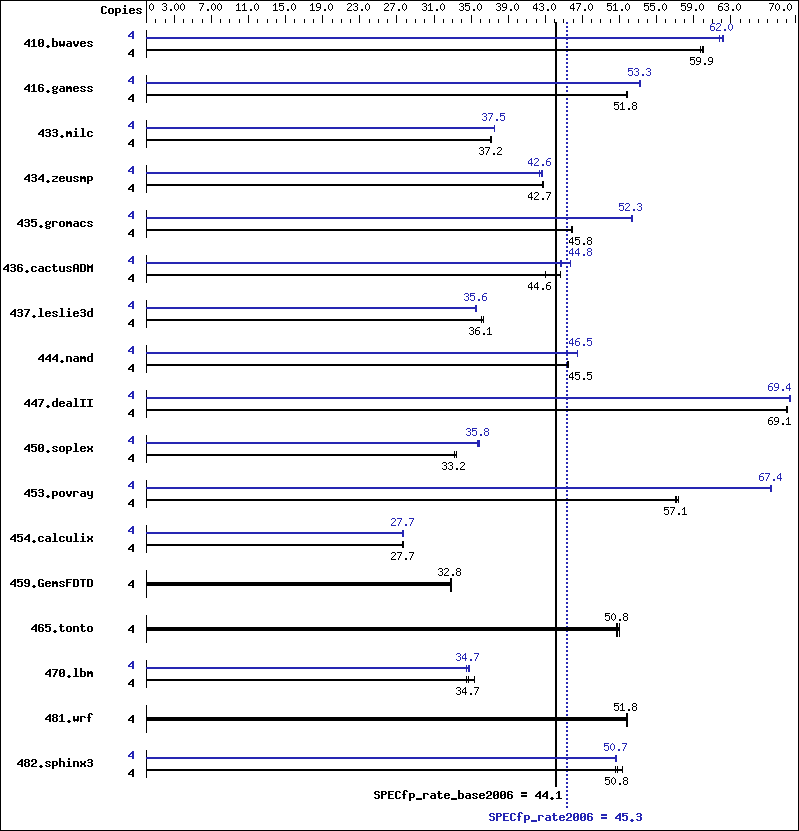

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2218
CPU Characteristics: Dual Core, 2.6 GHz, 2 MB L2-cache
CPU MHz: 2600
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 16 GB (8x2GB DDR2-667 CL5 dual rank ECC DIMMs
registered)
Disk Subsystem: SATA II, 80 GB
Other Hardware: None
Software
Operating System: SLES 10 for AMD64/EM64T
Compiler: QLogic Pathscale Compiler Suite 2.5
Auto Parallel: No
File System: ext3
System State: Multi-User SuSE Run Level 3
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: --

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 907 59.9 906 60.0 910 59.7 4 876 62.0 873 62.3 880 61.7
416.gamess 4 1514 51.7 1512 51.8 1510 51.9 4 1474 53.1 1470 53.3 1470 53.3
433.milc 4 989 37.1 987 37.2 987 37.2 4 978 37.5 980 37.5 979 37.5
434.zeusmp 4 850 42.8 852 42.7 854 42.6 4 855 42.6 859 42.4 852 42.7
435.gromacs 4 623 45.8 623 45.9 624 45.8 4 546 52.3 546 52.3 545 52.4
436.cactusADM 4 1072 44.6 1110 43.1 1072 44.6 4 1070 44.7 1067 44.8 1045 45.7
437.leslie3d 4 1041 36.1 1034 36.4 1042 36.1 4 1057 35.6 1056 35.6 1061 35.4
444.namd 4 706 45.5 705 45.5 706 45.4 4 690 46.5 690 46.5 690 46.5
447.dealII 4 663 69.0 662 69.1 662 69.1 4 660 69.3 660 69.4 659 69.4
450.soplex 4 1000 33.4 1005 33.2 1006 33.2 4 928 35.9 934 35.7 933 35.8
453.povray 4 373 57.1 371 57.3 373 57.0 4 316 67.4 316 67.4 316 67.2
454.calculix 4 1192 27.7 1195 27.6 1192 27.7 4 1192 27.7 1192 27.7 1193 27.7
459.GemsFDTD 4 1292 32.8 1293 32.8 1293 32.8 4 1292 32.8 1293 32.8 1293 32.8
465.tonto 4 772 51.0 775 50.8 777 50.6 4 772 51.0 775 50.8 777 50.6
470.lbm 4 1553 35.4 1582 34.7 1593 34.5 4 1577 34.8 1582 34.7 1594 34.5
481.wrf 4 862 51.8 863 51.8 863 51.8 4 862 51.8 863 51.8 863 51.8
482.sphinx3 4 1519 51.3 1541 50.6 1536 50.8 4 1539 50.7 1539 50.7 1541 50.6

Operating System Notes

 powersave -f is applied to set CPU to maximum frequency prior to run
 stacksize is set to unlimited prior to run
 taskset utility used to bind CPU(s) to processes
 numactl utility used to assign to each chip its local memory

General Notes


Binaries are generated on an Opteron-based system
         running Suse 9.3.

BIOS default settings with
Node memory interleave disabled, SRAT enabled

For information about Fujitsu Siemens Computers in your country please see:
http://www.fujitsu-siemens.com/countries

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Base Portability Flags

410.bwaves:  -DSPEC_CPU_LP64
416.gamess:  -DSPEC_CPU_LP64
433.milc:  -DSPEC_CPU_LP64
434.zeusmp:  -DSPEC_CPU_LP64
435.gromacs:  -DSPEC_CPU_LP64
436.cactusADM:  -DSPEC_CPU_LP64   -fno-second-underscore
437.leslie3d:  -DSPEC_CPU_LP64
444.namd:  -DSPEC_CPU_LP64
447.dealII:  -DSPEC_CPU_LP64   -DSPEC_CPU_TABLE_WORKAROUND
450.soplex:  -DSPEC_CPU_LP64
453.povray:  -DSPEC_CPU_LP64
454.calculix:  -DSPEC_CPU_LP64
459.GemsFDTD:  -DSPEC_CPU_LP64
465.tonto:  -DSPEC_CPU_LP64
470.lbm:  -DSPEC_CPU_LP64
481.wrf:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX   -fno-second-underscore
482.sphinx3:  -DSPEC_CPU_LP64

Base Optimization Flags

C benchmarks:

 -Ofast

C++ benchmarks:

 -Ofast

Fortran benchmarks:

 -Ofast

Benchmarks using both Fortran and C:

 -Ofast

Peak Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Fortran benchmarks:

 pathf95

Benchmarks using both Fortran and C:

 pathcc   pathf95

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

433.milc:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast
470.lbm:  Same as 433.milc
482.sphinx3:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:sclrze=off   -LNO:prefetch=1

C++ benchmarks:

444.namd:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast
447.dealII:  -Ofast   -fno-exceptions
450.soplex:  -O3   -OPT:IEEE_arith=3   -CG:load_exe=0   -CG:movnti=1   -LNO:minvariant=off   -fno-exceptions
453.povray:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -fno-fast-math

Fortran benchmarks:

410.bwaves:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:Ofast   -OPT:IEEE_arith=3   -LNO:blocking=off   -LNO:ignore_feedback=off
416.gamess:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast
434.zeusmp:  -O3   -CG:load_exe=0
437.leslie3d:  -O3   -OPT:Ofast
459.GemsFDTD:  basepeak = yes
465.tonto:  basepeak = yes

Benchmarks using both Fortran and C:

435.gromacs:  -O3   -OPT:rsqrt=2   -OPT:ro=3
436.cactusADM:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -LNO:prefetch_ahead=5   -LNO:ou_prod_max=10   -LNO:full_unroll=5   -ipa
454.calculix:  -Ofast
481.wrf:  basepeak = yes

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.13.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.13.xml.
