| CPU2006 license: | 20 | Test date: | Dec-2006 |
|---|---|---|---|
| Test sponsor: | Bull SAS | Hardware Availability: | Jan-2007 |
| Tested by: | Bull SAS | Software Availability: | Dec-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5150 |
| CPU Characteristics: | 2.66 GHz, 4MB L2, 1333MHz bus |
| CPU MHz: | 2660 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1 to 2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 8 GB (1GB DIMMx8, FB-DIMM PC2-5300F ECC CL5) |
| Disk Subsystem: | 73 GB SAS, 10000RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition (32 bits) Service Pack1 |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Package ID W_CC_C_9.1.033 Build no 20061103Z Intel Fortran Compiler for IA32 version 9.1 Package ID W_FC_C_9.1.033 Build no 20061103Z Microsoft Visual Studio .NET 2003 (lib & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | MicroQuill SmartHeap Library 8.0 (shlW32M.lib) |

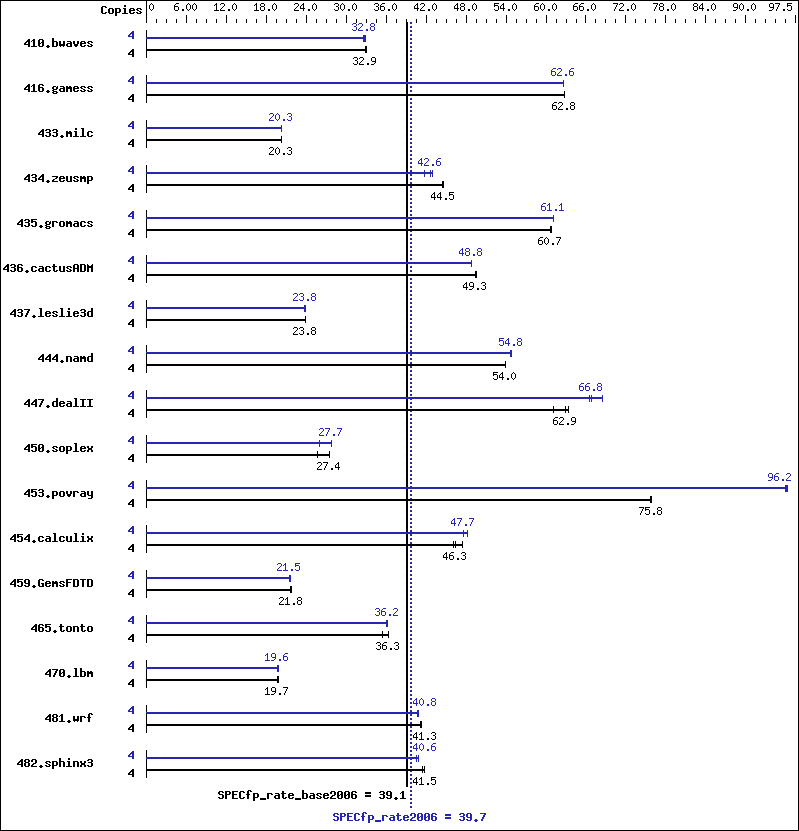

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 410.bwaves | 4 | 1648 | 33.0 | 1651 | 32.9 | 1656 | 32.8 | 4 | 1665 | 32.6 | 1656 | 32.8 | 1657 | 32.8 |
| 416.gamess | 4 | 1247 | 62.8 | 1246 | 62.8 | 1247 | 62.8 | 4 | 1251 | 62.6 | 1251 | 62.6 | 1251 | 62.6 |
| 433.milc | 4 | 1809 | 20.3 | 1813 | 20.3 | 1812 | 20.3 | 4 | 1813 | 20.3 | 1812 | 20.3 | 1813 | 20.3 |
| 434.zeusmp | 4 | 817 | 44.5 | 818 | 44.5 | 817 | 44.6 | 4 | 854 | 42.6 | 873 | 41.7 | 849 | 42.9 |
| 435.gromacs | 4 | 471 | 60.6 | 470 | 60.8 | 470 | 60.7 | 4 | 467 | 61.1 | 467 | 61.1 | 467 | 61.2 |
| 436.cactusADM | 4 | 965 | 49.5 | 969 | 49.3 | 969 | 49.3 | 4 | 979 | 48.8 | 980 | 48.8 | 980 | 48.8 |
| 437.leslie3d | 4 | 1577 | 23.8 | 1577 | 23.8 | 1577 | 23.8 | 4 | 1576 | 23.9 | 1587 | 23.7 | 1579 | 23.8 |
| 444.namd | 4 | 595 | 53.9 | 594 | 54.0 | 594 | 54.0 | 4 | 586 | 54.7 | 585 | 54.8 | 585 | 54.8 |
| 447.dealII | 4 | 722 | 63.4 | 728 | 62.9 | 748 | 61.2 | 4 | 688 | 66.5 | 685 | 66.8 | 668 | 68.5 |
| 450.soplex | 4 | 1303 | 25.6 | 1217 | 27.4 | 1217 | 27.4 | 4 | 1281 | 26.0 | 1202 | 27.7 | 1201 | 27.8 |
| 453.povray | 4 | 281 | 75.7 | 281 | 75.8 | 281 | 75.8 | 4 | 222 | 96.0 | 221 | 96.2 | 221 | 96.2 |
| 454.calculix | 4 | 712 | 46.3 | 696 | 47.4 | 715 | 46.1 | 4 | 693 | 47.6 | 692 | 47.7 | 684 | 48.2 |
| 459.GemsFDTD | 4 | 1948 | 21.8 | 1958 | 21.7 | 1950 | 21.8 | 4 | 1956 | 21.7 | 1973 | 21.5 | 1970 | 21.5 |
| 465.tonto | 4 | 1083 | 36.3 | 1084 | 36.3 | 1109 | 35.5 | 4 | 1088 | 36.2 | 1091 | 36.1 | 1088 | 36.2 |
| 470.lbm | 4 | 2775 | 19.8 | 2797 | 19.7 | 2798 | 19.6 | 4 | 2778 | 19.8 | 2803 | 19.6 | 2802 | 19.6 |
| 481.wrf | 4 | 1086 | 41.1 | 1080 | 41.4 | 1082 | 41.3 | 4 | 1099 | 40.6 | 1096 | 40.8 | 1095 | 40.8 |
| 482.sphinx3 | 4 | 1881 | 41.5 | 1870 | 41.7 | 1878 | 41.5 | 4 | 1922 | 40.6 | 1911 | 40.8 | 1920 | 40.6 |
Base Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Base Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Base Optimization Flags
C benchmarks:
| -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -fast /F950000000 -link /FORCE:MULTIPLE |
Peak Compiler Invocation
C benchmarks:
| icl -Qvc7.1 -Qc99 |
C++ benchmarks:
| icl -Qvc7.1 |
Fortran benchmarks:
| ifort |
Benchmarks using both Fortran and C:
| icl -Qvc7.1 -Qc99 ifort |
Peak Portability Flags
| 436.cactusADM: | -Qlowercase /assume:underscore |
| 444.namd: | -TP |
| 447.dealII: | -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG -DBOOST_NO_INTRINSIC_WCHAR_T |
| 453.povray: | -DSPEC_CPU_WINDOWS_ICL |
| 454.calculix: | -DSPEC_CPU_NOZMODIFIER -Qlowercase |
| 481.wrf: | -DSPEC_CPU_WINDOWS_ICL |
Peak Optimization Flags
C benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
C++ benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx_features /F950000000 shlw32m.lib -link /FORCE:MULTIPLE |
Fortran benchmarks:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
Benchmarks using both Fortran and C:
| -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast /F950000000 -link /FORCE:MULTIPLE |
