SPEC® CFP2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Dell Inc.

PowerEdge 840 (Intel Xeon X3220, 2.40 GHz)

CPU2006 license: 55 Test date: Jan-2007
Test sponsor: Dell Inc. Hardware Availability: Jan-2007
Tested by: Dell Inc. Software Availability: Oct-2006

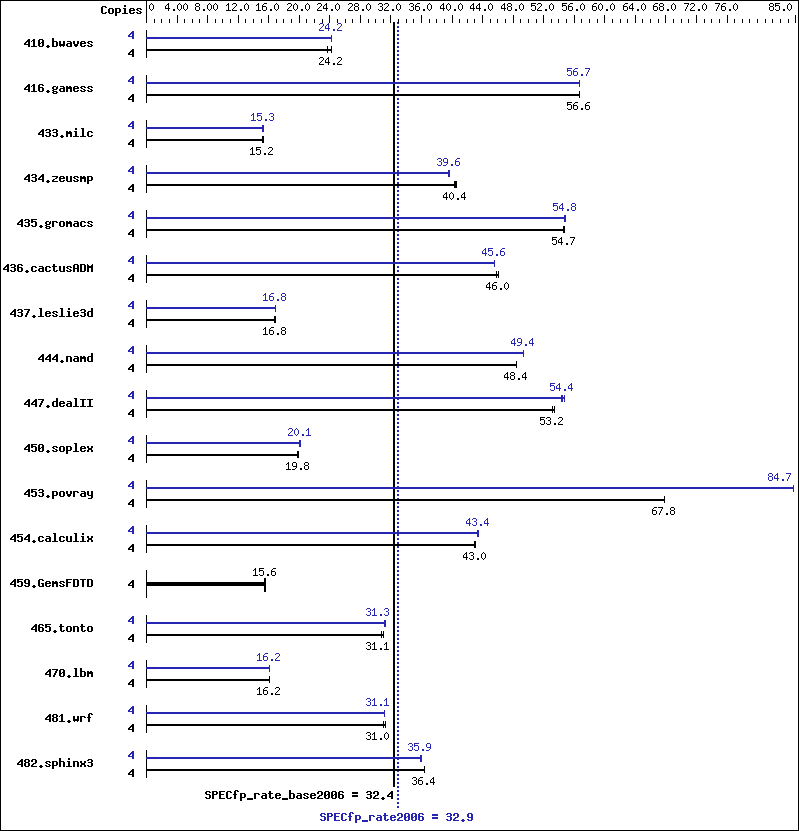

Benchmark results graph
Hardware
CPU Name: Intel Xeon X3220
CPU Characteristics: 1066MHz system bus
CPU MHz: 2400
FPU: Integrated
CPU(s) enabled: 4 cores, 1 chip, 4 cores/chip
CPU(s) orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 8 MB I+D on chip per chip, 4 MB shared / 2 cores
L3 Cache: None
Other Cache: None
Memory: 4 GB (4x1 GB 667MHz ECC DDR2 SDRAM)
Disk Subsystem: 1 x 73GB SAS 10000 RPM
Other Hardware: None
Software
Operating System: Windows Server 2003 Standard Edition
Compiler: Intel C++ Compiler 9.1 for IA32 (20061103Z)
Intel FORTRAN Compiler 9.1 for IA32 (20061103Z)
Microsoft Visual Studio 2005 (8.0.50727.42)
Auto Parallel: No
File System: NTFS
System State: Default
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill SmartHeap Library 8.0

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
410.bwaves 4 2295 23.7 2244 24.2 2244 24.2 4 2243 24.2 2243 24.2 2243 24.2
416.gamess 4 1383 56.6 1382 56.7 1383 56.6 4 1382 56.7 1382 56.7 1382 56.7
433.milc 4 2420 15.2 2407 15.3 2409 15.2 4 2408 15.3 2407 15.3 2405 15.3
434.zeusmp 4 902 40.3 901 40.4 897 40.6 4 916 39.7 918 39.6 921 39.5
435.gromacs 4 522 54.7 522 54.7 523 54.6 4 521 54.8 521 54.8 521 54.8
436.cactusADM 4 1044 45.8 1038 46.0 1038 46.0 4 1049 45.6 1049 45.6 1048 45.6
437.leslie3d 4 2235 16.8 2232 16.8 2232 16.8 4 2231 16.9 2232 16.8 2232 16.8
444.namd 4 662 48.4 662 48.4 663 48.4 4 650 49.4 649 49.4 649 49.4
447.dealII 4 857 53.4 860 53.2 861 53.2 4 841 54.4 836 54.7 843 54.3
450.soplex 4 1681 19.9 1681 19.8 1692 19.7 4 1656 20.1 1665 20.0 1655 20.2
453.povray 4 314 67.8 314 67.8 314 67.8 4 251 84.7 251 84.7 251 84.7
454.calculix 4 767 43.0 766 43.1 769 42.9 4 759 43.5 762 43.3 760 43.4
459.GemsFDTD 4 2726 15.6 2723 15.6 2736 15.5 4 2726 15.6 2723 15.6 2736 15.5
465.tonto 4 1267 31.1 1280 30.7 1267 31.1 4 1257 31.3 1258 31.3 1263 31.2
470.lbm 4 3400 16.2 3401 16.2 3400 16.2 4 3402 16.2 3403 16.2 3403 16.2
481.wrf 4 1441 31.0 1440 31.0 1428 31.3 4 1435 31.1 1432 31.2 1435 31.1
482.sphinx3 4 2140 36.4 2141 36.4 2145 36.3 4 2171 35.9 2171 35.9 2166 36.0

General Notes

 32-bit binaries were built on Windows XP Professional x64 Edition

Base Compiler Invocation

C benchmarks:

 icl   -Qc99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qc99   ifort

Base Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Base Optimization Flags

C benchmarks:

 -fast   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 -fast   -Qcxx_features   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

 -fast   /F1000000000    -link /FORCE:MULTIPLE

Benchmarks using both Fortran and C:

 -fast   /F1000000000    -link /FORCE:MULTIPLE

Peak Compiler Invocation

C benchmarks:

 icl   -Qc99

C++ benchmarks:

 icl

Fortran benchmarks:

 ifort

Benchmarks using both Fortran and C:

 icl   -Qc99   ifort

Peak Portability Flags

436.cactusADM:  -Qlowercase   /assume:underscore
444.namd:  -TP
447.dealII:  -DDEAL_II_MEMBER_VAR_SPECIALIZATION_BUG   -DBOOST_NO_INTRINSIC_WCHAR_T
453.povray:  -DSPEC_CPU_WINDOWS_ICL
454.calculix:  -DSPEC_CPU_NOZMODIFIER   -Qlowercase
481.wrf:  -DSPEC_CPU_WINDOWS_ICL

Peak Optimization Flags

C benchmarks:

 ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE

C++ benchmarks:

 ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   -Qcxx_features   /F512000000   shlW32M.lib    -link /FORCE:MULTIPLE

Fortran benchmarks:

410.bwaves:  ONESTEP   -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F1000000000    -link /FORCE:MULTIPLE
416.gamess:  ONESTEP   -fast   /F1000000000    -link /FORCE:MULTIPLE
434.zeusmp:  Same as 410.bwaves
437.leslie3d:  Same as 410.bwaves
459.GemsFDTD:  basepeak = yes
465.tonto:  Same as 410.bwaves

Benchmarks using both Fortran and C:

435.gromacs:  -fast   /F1000000000    -link /FORCE:MULTIPLE
436.cactusADM:  -Qprof_gen(pass 1)   -Qprof_use(pass 2)   -fast   /F1000000000    -link /FORCE:MULTIPLE
454.calculix:  Same as 436.cactusADM
481.wrf:  Same as 435.gromacs

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/dell.cpu2006.ic91.flags.20090715.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/dell.cpu2006.ic91.flags.20090715.xml.
