SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Tyan (Test Sponsor: Advanced Micro Devices)

Tyan Thunder n4250QE (S4985) Opteron 2220

CPU2006 license: 49 Test date: Jul-2006
Test sponsor: Advanced Micro Devices Hardware Availability: Feb-2007
Tested by: Advanced Micro Devices Software Availability: Aug-2006

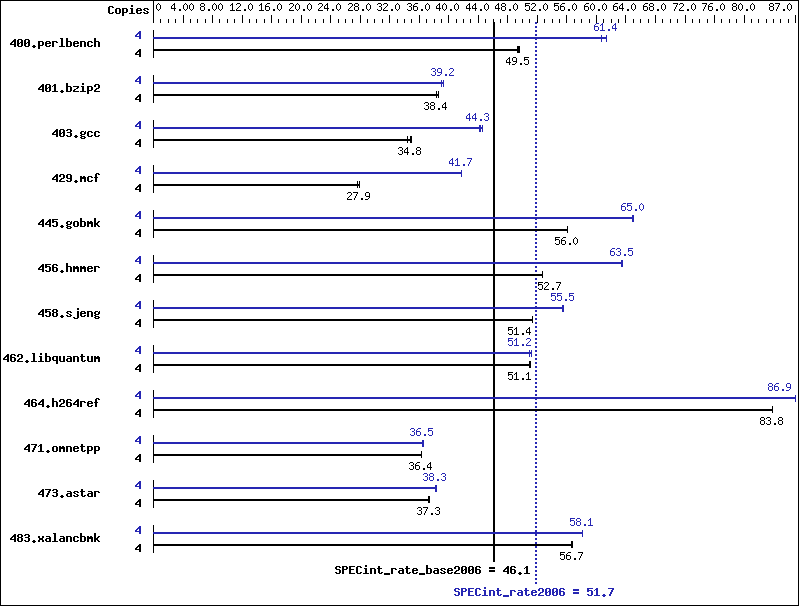

Benchmark results graph
Hardware
CPU Name: AMD Opteron 2220
CPU Characteristics:
CPU MHz: 2800
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1,2 chips
Primary Cache: 64 KB I + 64 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
L3 Cache: None
Other Cache: None
Memory: 8 GB (8x1GB, DDR2-667 CL4 ECC Reg Dual Rank)
Disk Subsystem: SATA, 74 GB
Other Hardware: None
Software
Operating System: SuSE SLES9SP3 64-bit kernel
Compiler: QLogic PathScale
Compiler Suite, Release 2.5
Auto Parallel: No
File System: ext3
System State: Multi-user, run level 3
Base Pointers: 32/64-bit
Peak Pointers: 32/64-bit
Other Software: SmartHeap 8.0 32 bit Library for Linux

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 792 49.4 790 49.5 789 49.5 4 645 60.6 637 61.4 637 61.4
401.bzip2 4 1006 38.4 999 38.6 1007 38.3 4 991 39.0 984 39.2 984 39.2
403.gcc 4 921 35.0 935 34.4 924 34.8 4 726 44.3 729 44.2 723 44.5
429.mcf 4 1306 27.9 1320 27.6 1307 27.9 4 875 41.7 875 41.7 875 41.7
445.gobmk 4 749 56.0 748 56.1 749 56.0 4 646 65.0 645 65.0 646 64.9
456.hmmer 4 707 52.8 708 52.7 708 52.7 4 588 63.5 589 63.3 588 63.5
458.sjeng 4 943 51.3 943 51.4 942 51.4 4 873 55.4 872 55.5 872 55.5
462.libquantum 4 1623 51.1 1627 51.0 1622 51.1 4 1627 50.9 1619 51.2 1617 51.2
464.h264ref 4 1056 83.8 1056 83.8 1056 83.8 4 1019 86.9 1018 86.9 1018 86.9
471.omnetpp 4 687 36.4 687 36.4 687 36.4 4 684 36.6 685 36.5 685 36.5
473.astar 4 754 37.2 751 37.4 752 37.3 4 734 38.2 734 38.3 733 38.3
483.xalancbmk 4 487 56.7 487 56.7 486 56.8 4 475 58.1 475 58.1 475 58.1

General Notes

 taskset utility used to bind CPU(s) to processes
 All memory slots filled on all used CPU sockets
 The tested system can be assembled using any SSI-MEB case and
 a Silverstone Zeus 650 watt ST65ZF ATX 12V Power Supply.

Base Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -Ofast

C++ benchmarks:

 -Ofast   -m32   -L/spec/mpaton/6v1.0/amd512K8.lib/microquill/lib -lsmartheap

Base Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

Peak Compiler Invocation

C benchmarks:

 pathcc

C++ benchmarks:

 pathCC

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_X64
401.bzip2:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LINUX

Peak Optimization Flags

C benchmarks:

400.perlbench:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast
401.bzip2:  -O3   -LNO:ou_prod_max=10   -OPT:Ofast   -OPT:alias=disjoint
403.gcc:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -m32   -O3   -OPT:Ofast
429.mcf:  -m32   -O2   -ipa   -L/spec/mpaton/6v1.0/amd512K8.lib/microquill/lib -lsmartheap
445.gobmk:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -OPT:alias=disjoint   -LNO:simd=0   -LNO:minvariant=off   -WOPT:retype_expr=on
456.hmmer:  -O2   -OPT:alias=disjoint   -WOPT:aggstr=0   -CG:cflow=0
458.sjeng:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=50000   -IPA:pu_reorder=2
462.libquantum:  -O3   -ipa   -CG:local_fwd_sched=on   -IPA:space=1000
464.h264ref:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -O3   -IPA:plimit=20000   -OPT:alias=disjoint   -LNO:prefetch=0

C++ benchmarks:

471.omnetpp:  -Ofast   -IPA:pu_reorder=2   -CG:gcm=off   -m32   -L/spec/mpaton/6v1.0/amd512K8.lib/microquill/lib -lsmartheap
473.astar:  -fb_create fbdata(pass 1)   -fb_opt fbdata(pass 2)   -Ofast   -m32   -L/spec/mpaton/6v1.0/amd512K8.lib/microquill/lib -lsmartheap
483.xalancbmk:  -Ofast   -m32   -OPT:unroll_times_max=8   -L/spec/mpaton/6v1.0/amd512K8.lib/microquill/lib -lsmartheap

Peak Other Flags

C benchmarks:

 -IPA:max_jobs=2

C++ benchmarks:

 -IPA:max_jobs=2

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.25.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090714.25.xml.
