| CPU2006 license: | 22 | Test date: | Jan-2007 |
|---|---|---|---|
| Test sponsor: | Fujitsu Siemens Computers | Hardware Availability: | Jul-2006 |
| Tested by: | Fujitsu Siemens Computers | Software Availability: | Nov-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 5160 |
| CPU Characteristics: | 5160 |
| CPU MHz: | 3000 |
| FPU: | Integrated |
| CPU(s) enabled: | 4 cores, 2 chips, 2 cores/chip |
| CPU(s) orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 4 MB I+D on chip per chip |
| L3 Cache: | None |
| Other Cache: | None |
| Memory: | 16 GB (8x2 GB DDR2 PC2-5300F, 2 rank, CAS 5-5-5, with ECC) |
| Disk Subsystem: | SAS (73GB 15400 rpm) |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Windows Server 2003 Enterprise Edition + SP1 (32-bit) |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 - Build 20061103Z, Package-ID W_CC_C_9.1.033 Microsoft Visual Studio 2005 (libr. & linker) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | 32-bit |
| Other Software: | Smart Heap Library, Version 8 |

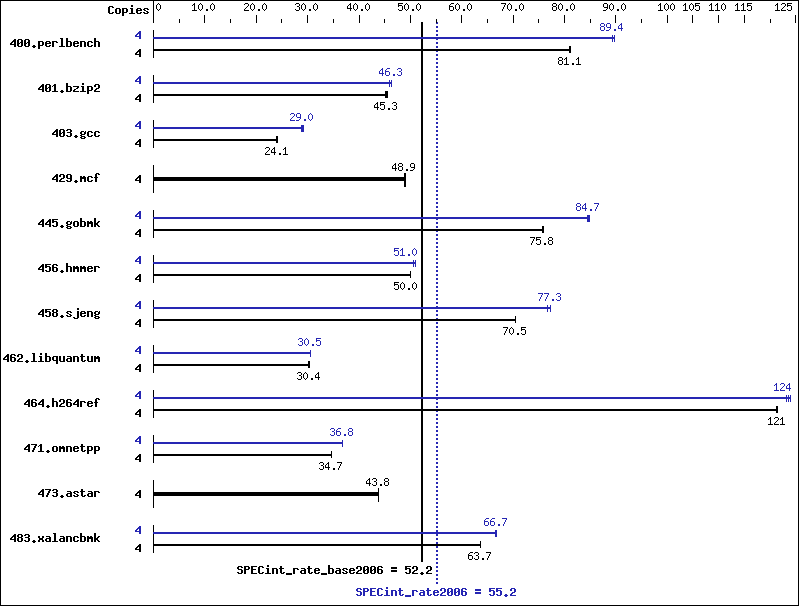

Results Table
| Benchmark | Base | Peak | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Copies | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||||
| 400.perlbench | 4 | 483 | 80.9 | 482 | 81.1 | 482 | 81.2 | 4 | 435 | 89.8 | 437 | 89.4 | 437 | 89.4 |
| 401.bzip2 | 4 | 853 | 45.2 | 852 | 45.3 | 848 | 45.5 | 4 | 840 | 46.0 | 834 | 46.3 | 833 | 46.3 |
| 403.gcc | 4 | 1337 | 24.1 | 1345 | 23.9 | 1338 | 24.1 | 4 | 1119 | 28.8 | 1104 | 29.2 | 1111 | 29.0 |
| 429.mcf | 4 | 747 | 48.8 | 745 | 49.0 | 746 | 48.9 | 4 | 747 | 48.8 | 745 | 49.0 | 746 | 48.9 |
| 445.gobmk | 4 | 554 | 75.8 | 554 | 75.7 | 554 | 75.8 | 4 | 495 | 84.7 | 496 | 84.5 | 494 | 84.9 |
| 456.hmmer | 4 | 747 | 50.0 | 747 | 50.0 | 747 | 50.0 | 4 | 732 | 51.0 | 732 | 51.0 | 738 | 50.6 |
| 458.sjeng | 4 | 686 | 70.5 | 686 | 70.5 | 686 | 70.5 | 4 | 626 | 77.3 | 626 | 77.3 | 631 | 76.7 |
| 462.libquantum | 4 | 2742 | 30.2 | 2730 | 30.4 | 2730 | 30.4 | 4 | 2716 | 30.5 | 2715 | 30.5 | 2709 | 30.6 |
| 464.h264ref | 4 | 728 | 122 | 731 | 121 | 729 | 121 | 4 | 714 | 124 | 716 | 124 | 719 | 123 |
| 471.omnetpp | 4 | 721 | 34.7 | 720 | 34.7 | 720 | 34.7 | 4 | 679 | 36.8 | 679 | 36.8 | 680 | 36.8 |
| 473.astar | 4 | 642 | 43.7 | 641 | 43.8 | 640 | 43.8 | 4 | 642 | 43.7 | 641 | 43.8 | 640 | 43.8 |
| 483.xalancbmk | 4 | 433 | 63.7 | 433 | 63.7 | 433 | 63.7 | 4 | 413 | 66.8 | 414 | 66.7 | 415 | 66.5 |
Operating System Notes
added /PAE switch to boot.ini
General Notes
The PRIMERGY RX300 S3 and the PRIMERGY TX300 S3 are electronically equivalent. The system bus runs at 1333 MHz BIOS configuration: Adjacent Sector Prefetch = Disable For information about Fujitsu Siemens Computers in your country please see: http://www.fujitsu-siemens.com/countries
Base Portability Flags
| 400.perlbench: | -DSPEC_CPU_NO_NEED_VA_COPY |
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Base Optimization Flags
C benchmarks:
| -fast -F512000000 shlW32M.lib -link -FORCE:MULTIPLE |
C++ benchmarks:
| -fast -Qcxx-features -F512000000 shlW32M.lib -link -FORCE:MULTIPLE |
Peak Portability Flags
| 400.perlbench: | -DSPEC_CPU_NO_NEED_VA_COPY |
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DWIN32 -DSPEC_CPU_NO_INTTYPES |
| 483.xalancbmk: | -Qoption,cpp,--no_wchar_t_keyword |
Peak Optimization Flags
C benchmarks:
| 400.perlbench: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F512000000 shlW32M.lib -link -FORCE:MULTIPLE |
| 401.bzip2: | Same as 400.perlbench |
| 403.gcc: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -F512000000 -link -FORCE:MULTIPLE |
| 429.mcf: | basepeak = yes |
| 445.gobmk: | Same as 400.perlbench |
| 456.hmmer: | Same as 400.perlbench |
| 458.sjeng: | Same as 400.perlbench |
| 462.libquantum: | Same as 400.perlbench |
| 464.h264ref: | Same as 400.perlbench |
C++ benchmarks:
| 471.omnetpp: | -Qprof_gen(pass 1) -Qprof_use(pass 2) -fast -Qcxx-features -F512000000 shlW32M.lib -link -FORCE:MULTIPLE |
| 473.astar: | basepeak = yes |
| 483.xalancbmk: | Same as 471.omnetpp |
