SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

HP Integrity rx3600
(1.4GHz/12MB Dual-Core Intel Itanium 2)

CPU2006 license: 03 Test date: Jan-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Sep-2006
Tested by: Hewlett-Packard Company Software Availability: Sep-2006

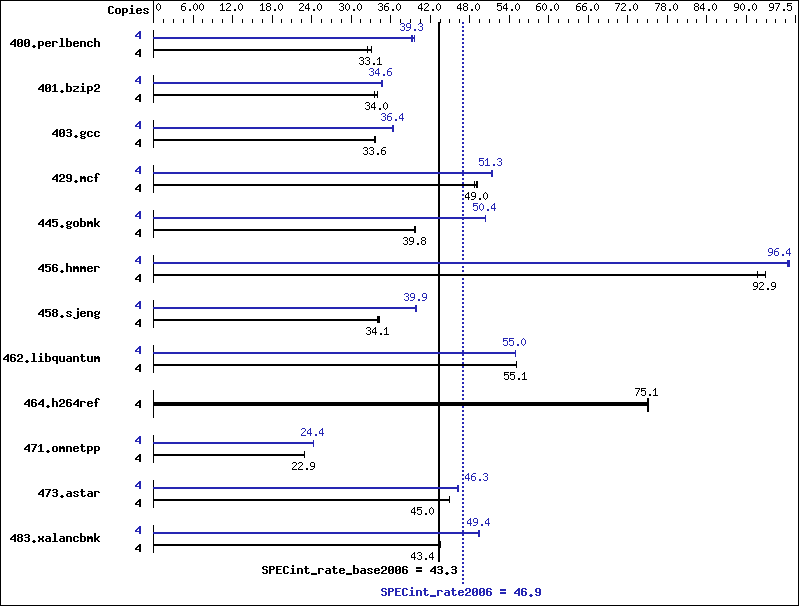

Benchmark results graph
Hardware
CPU Name: Dual-Core Intel Itanium 2 9020
CPU Characteristics: 1.4GHz/12MB, 533MHz FSB
CPU MHz: 1400
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1-2 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 6 MB I+D on chip per core
Other Cache: None
Memory: 16 GB (8x2GB DIMMs, AD124A 8-DIMM memory carrier)
Disk Subsystem: 73GB 10K RPM SAS
Other Hardware: None
Software
Operating System: HPUX11i-TCOE B.11.23.0609
Compiler: HP C/aC++ Developer's Bundle C.11.23.12
Auto Parallel: No
File System: vxfs
System State: Multi-user
Base Pointers: 32-bit
Peak Pointers: 32-bit
Other Software: MicroQuill Smartheap 8.0

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 1206 32.4 1181 33.1 1179 33.1 4 998 39.2 995 39.3 988 39.6
401.bzip2 4 1152 33.5 1136 34.0 1133 34.1 4 1116 34.6 1115 34.6 1110 34.8
403.gcc 4 956 33.7 957 33.6 959 33.6 4 888 36.3 884 36.4 885 36.4
429.mcf 4 749 48.7 744 49.0 742 49.2 4 710 51.4 710 51.3 711 51.3
445.gobmk 4 1060 39.6 1055 39.8 1055 39.8 4 833 50.4 833 50.4 833 50.4
456.hmmer 4 407 91.6 401 93.0 402 92.9 4 387 96.4 388 96.3 387 96.5
458.sjeng 4 1423 34.0 1413 34.3 1419 34.1 4 1218 39.7 1214 39.9 1213 39.9
462.libquantum 4 1505 55.1 1504 55.1 1504 55.1 4 1507 55.0 1508 55.0 1507 55.0
464.h264ref 4 1181 74.9 1178 75.1 1179 75.1 4 1181 74.9 1178 75.1 1179 75.1
471.omnetpp 4 1094 22.9 1090 22.9 1090 22.9 4 1028 24.3 1026 24.4 1026 24.4
473.astar 4 626 44.9 624 45.0 624 45.0 4 608 46.2 607 46.3 607 46.3
483.xalancbmk 4 636 43.4 633 43.6 635 43.4 4 560 49.3 558 49.5 558 49.4

Operating System Notes

   The system had the September 2006 HP-UX 11i v2 Technical Computing
   Operating Environment (TCOE) and compilers installed, along with
   the following patches:

   PHSS_34858  linker + fdp cumulative patch
   PHSS_34853  Math Library Cumulative Patch
   PHSS_34854  Integrity Unwind Library
   PHSS_34855  HP C Compiler (A.06.12)
   PHSS_34856  aC++ Compiler (A.06.12)
   PHSS_34857  u2comp/be/plugin library patch
   PHSS_34395  FORTRAN I/O Library [libIO77]
   PHSS_34397  FORTRAN Intrinsics [libF90 B.11.23.17]
   PHSS_34399  Fortran Product Patch, v3.1 to v3.1.1
   PHKL_34020  Perfmon enhancements and Itanium Dual-Core

   The following kernel tunables were set, in addition to the defaults
   set by the Technical Computing OE:

   dbc_max_pct=20
   dbc_min_pct=20
   maxdsiz=3221225472
   maxssiz=401604608

Base Compiler Invocation

C benchmarks:

 /opt/ansic/bin/cc -Ae

C++ benchmarks:

 /opt/aCC/bin/aCC -Aa

Base Portability Flags

400.perlbench:  -DSPEC_CPU_HPUX_IA64
403.gcc:  -DSPEC_CPU_HPUX
462.libquantum:  -DSPEC_CPU_HPUX
483.xalancbmk:  -DSPEC_CPU_HPUX_IA64

Base Optimization Flags

C benchmarks:

 +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N

C++ benchmarks:

 +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N   /usr/lib/hpux32/libCsup.a /opt/smartheap/SmartHeap_8/lib/libsmartheap.a

Peak Compiler Invocation

C benchmarks:

 /opt/ansic/bin/cc -Ae

C++ benchmarks:

 /opt/aCC/bin/aCC -Aa

Peak Portability Flags

400.perlbench:  -DSPEC_CPU_HPUX_IA64
403.gcc:  -DSPEC_CPU_HPUX
462.libquantum:  -DSPEC_CPU_HPUX
483.xalancbmk:  -DSPEC_CPU_HPUX_IA64

Peak Optimization Flags

C benchmarks:

400.perlbench:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   -Wl,-N
401.bzip2:  Same as 400.perlbench
403.gcc:  Same as 400.perlbench
429.mcf:  Same as 400.perlbench
445.gobmk:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Odataprefetch=direct
456.hmmer:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M
458.sjeng:  Same as 445.gobmk
462.libquantum:  Same as 456.hmmer
464.h264ref:  basepeak = yes

C++ benchmarks:

471.omnetpp:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   /usr/lib/hpux32/libCsup.a /opt/smartheap/SmartHeap_8/lib/libsmartheap.a
473.astar:  +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap   /usr/lib/hpux32/libCsup.a /opt/smartheap/SmartHeap_8/lib/libsmartheap.a
483.xalancbmk:  +Oprofile=collect:all(pass 1)   +Oprofile=use(pass 2)   +Ofaster   +Otype_safety=ansi   -Wl,-a,archive_shared   -Wl,+pd,64M   -Wl,+pi,64M   +Onoparmsoverlap   /usr/lib/hpux32/libCsup.a /opt/smartheap/SmartHeap_8/lib/libsmartheap.a

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.07.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/CPU2006_flags.20090715.07.xml.

SPEC and SPECint are registered trademarks of the Standard Performance Evaluation Corporation. All other brand and product names appearing in this result are trademarks or registered trademarks of their respective holders.

For questions about this result, please contact the tester.
For other inquiries, please contact webmaster@spec.org
Copyright 2006-2014 Standard Performance Evaluation Corporation
Tested with SPEC CPU2006 v1.0.
Report generated on Tue Jul 22 10:17:45 2014 by SPEC CPU2006 HTML formatter v6932.
Originally published on 6 February 2007.
