SPEC® CINT2006 Result

Copyright 2006-2014 Standard Performance Evaluation Corporation

Hewlett-Packard Company

HP Integrity rx2660
(1.6GHz/18MB Dual-Core Intel Itanium 2)

CPU2006 license: 03 Test date: Jan-2007
Test sponsor: Hewlett-Packard Company Hardware Availability: Feb-2007
Tested by: Hewlett-Packard Company Software Availability: Nov-2006

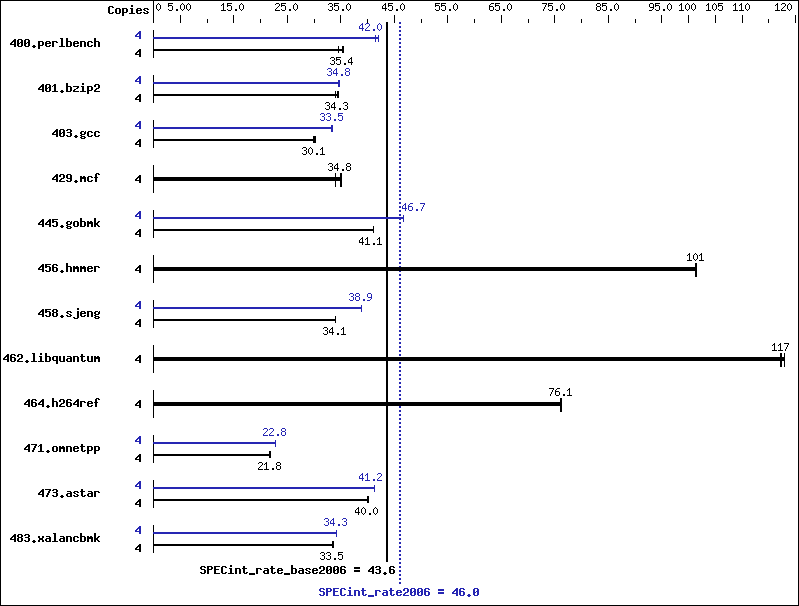

Benchmark results graph
Hardware
CPU Name: Dual-Core Intel Itanium 2 9040
CPU Characteristics: 1.6GHz/18MB, 533MHz FSB
CPU MHz: 1600
FPU: Integrated
CPU(s) enabled: 4 cores, 2 chips, 2 cores/chip
CPU(s) orderable: 1-2 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 9 MB I+D on chip per core
Other Cache: None
Memory: 8 GB (4x2GB DIMMs)
Disk Subsystem: 73GB 10K RPM SAS
Other Hardware: None
Software
Operating System: Red Hat Enterprise Linux AS release 4 (Update 4)
Compiler: Intel C++ Compiler 9.1 for Linux
(Build 20061105)
Auto Parallel: No
File System: ext3
System State: Multi-user
Base Pointers: 64-bit
Peak Pointers: 64-bit
Other Software: MicroQuill Smartheap 8.0

Results Table

Benchmark Base Peak
Copies Seconds Ratio Seconds Ratio Seconds Ratio Copies Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
400.perlbench 4 1130 34.6 1105 35.4 1102 35.4 4 931 42.0 943 41.5 930 42.0
401.bzip2 4 1119 34.5 1132 34.1 1125 34.3 4 1119 34.5 1110 34.8 1109 34.8
403.gcc 4 1069 30.1 1079 29.9 1066 30.2 4 969 33.2 962 33.5 962 33.5
429.mcf 4 1047 34.8 1072 34.0 1037 35.2 4 1047 34.8 1072 34.0 1037 35.2
445.gobmk 4 1021 41.1 1022 41.1 1022 41.1 4 899 46.7 899 46.7 899 46.7
456.hmmer 4 368 101   368 101   369 101   4 368 101   368 101   369 101
458.sjeng 4 1421 34.1 1420 34.1 1424 34.0 4 1243 38.9 1244 38.9 1243 38.9
462.libquantum 4 707 117   703 118   706 117   4 707 117   703 118   706 117
464.h264ref 4 1162 76.1 1162 76.2 1164 76.0 4 1162 76.1 1162 76.2 1164 76.0
471.omnetpp 4 1147 21.8 1155 21.6 1148 21.8 4 1096 22.8 1096 22.8 1096 22.8
473.astar 4 702 40.0 702 40.0 700 40.1 4 681 41.2 681 41.2 680 41.3
483.xalancbmk 4 823 33.6 826 33.4 824 33.5 4 805 34.3 806 34.3 805 34.3

Operating System Notes

 stacksize set to unlimited prior to run

Base Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Base Portability Flags

400.perlbench:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX_IA64
401.bzip2:  -DSPEC_CPU_LP64
403.gcc:  -DSPEC_CPU_LP64
429.mcf:  -DSPEC_CPU_LP64
445.gobmk:  -DSPEC_CPU_LP64
456.hmmer:  -DSPEC_CPU_LP64
458.sjeng:  -DSPEC_CPU_LP64
462.libquantum:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX
464.h264ref:  -DSPEC_CPU_LP64
471.omnetpp:  -DSPEC_CPU_LP64
473.astar:  -DSPEC_CPU_LP64
483.xalancbmk:  -DSPEC_CPU_LP64   -DSPEC_CPU_LINUX

Base Optimization Flags

C benchmarks:

 -fast   -IPF_fp_relaxed   -ansi-alias

C++ benchmarks:

 -fast   -IPF_fp_relaxed   -ansi-alias   -Wl,-z,muldefs   /opt/SmartHeap_8/lib/libsmartheapC64.a   /opt/SmartHeap_8/lib/libsmartheap64.a

Peak Compiler Invocation

C benchmarks:

 icc

C++ benchmarks:

 icpc

Peak Portability Flags

Same as Base Portability Flags

Peak Optimization Flags

C benchmarks:

400.perlbench:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF_fp_relaxed   -ansi-alias
401.bzip2:  Same as 400.perlbench
403.gcc:  Same as 400.perlbench
429.mcf:  basepeak = yes
445.gobmk:  Same as 400.perlbench
456.hmmer:  basepeak = yes
458.sjeng:  Same as 400.perlbench
462.libquantum:  basepeak = yes
464.h264ref:  basepeak = yes

C++ benchmarks:

471.omnetpp:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF_fp_relaxed   -ansi-alias   -Wl,-z,muldefs   /opt/SmartHeap_8/lib/libsmartheapC64.a   /opt/SmartHeap_8/lib/libsmartheap64.a
473.astar:  -prof_gen(pass 1)   -prof_use(pass 2)   -fast   -IPF_fp_relaxed   -ansi-alias   -inline-factor=150   -Wl,-z,muldefs   /opt/SmartHeap_8/lib/libsmartheapC64.a   /opt/SmartHeap_8/lib/libsmartheap64.a
483.xalancbmk:  Same as 471.omnetpp

The flags file that was used to format this result can be browsed at
http://www.spec.org/cpu2006/flags/IPF_intel91_flags.20090715.00.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/cpu2006/flags/IPF_intel91_flags.20090715.00.xml.
