| CPU2006 license: | 11 | Test date: | Dec-2006 |
|---|---|---|---|
| Test sponsor: | IBM Corporation | Hardware Availability: | Oct-2006 |
| Tested by: | IBM Corporation | Software Availability: | Aug-2006 |
| Hardware | |
|---|---|
| CPU Name: | Intel Xeon 7110N |
| CPU Characteristics: | 667 MHz bus |
| CPU MHz: | 2500 |
| FPU: | Integrated |
| CPU(s) enabled: | 8 cores, 4 chips, 2 cores/chip, 2 threads/core |
| CPU(s) orderable: | 1,2,4 chips |
| Primary Cache: | 12 K micro-ops I + 16 KB D on chip per core |
| Secondary Cache: | 1 MB I+D on chip per core |
| L3 Cache: | 4 MB I+D on chip per chip |
| Other Cache: | None |
| Memory: | 32 GB (16 x 2048 MB ECC PC2-3200) |
| Disk Subsystem: | 73 GB SAS, 10k RPM |
| Other Hardware: | None |
| Software | |
|---|---|
| Operating System: | Microsoft Windows Server 2003 Enterprise x64 Edition + SP1 (64-bit) |
| Compiler: | Intel C++ Compiler for IA32 version 9.1 Build no 20060816 Microsoft Visual Studio .Net 2003 (for libraries) |
| Auto Parallel: | No |
| File System: | NTFS |
| System State: | Default |
| Base Pointers: | 32-bit |
| Peak Pointers: | Not Applicable |
| Other Software: | Smart Heap Library, Version 8 |

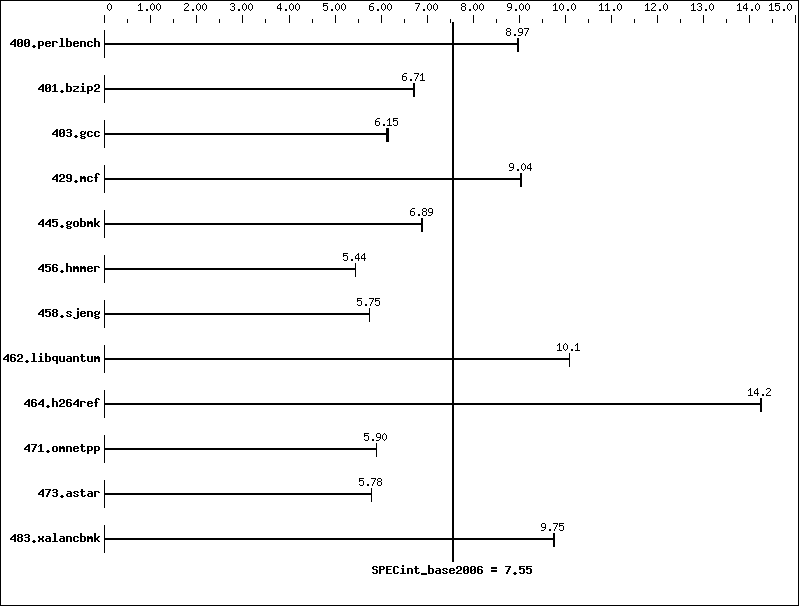

Results Table
| Benchmark | Base | Peak | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | Seconds | Ratio | |
| Results appear in the order in which they were run. Bold underlined text indicates a median measurement. | ||||||||||||
| 400.perlbench | 1089 | 8.97 | 1090 | 8.96 | 1088 | 8.98 | ||||||
| 401.bzip2 | 1437 | 6.71 | 1438 | 6.71 | 1437 | 6.71 | ||||||
| 403.gcc | 1309 | 6.15 | 1316 | 6.12 | 1310 | 6.15 | ||||||
| 429.mcf | 1010 | 9.03 | 1008 | 9.04 | 1009 | 9.04 | ||||||
| 445.gobmk | 1522 | 6.89 | 1523 | 6.89 | 1523 | 6.89 | ||||||
| 456.hmmer | 1716 | 5.44 | 1716 | 5.44 | 1716 | 5.44 | ||||||
| 458.sjeng | 2103 | 5.75 | 2103 | 5.75 | 2103 | 5.75 | ||||||
| 462.libquantum | 2055 | 10.1 | 2053 | 10.1 | 2053 | 10.1 | ||||||
| 464.h264ref | 1554 | 14.2 | 1554 | 14.2 | 1553 | 14.2 | ||||||
| 471.omnetpp | 1059 | 5.90 | 1059 | 5.90 | 1059 | 5.90 | ||||||
| 473.astar | 1213 | 5.79 | 1214 | 5.78 | 1214 | 5.78 | ||||||
| 483.xalancbmk | 709 | 9.74 | 708 | 9.75 | 707 | 9.75 | ||||||
General Notes
Bios Settings Hardware Prefetch enabled Memory Array set to High-Performance Memory Array
Base Portability Flags
| 403.gcc: | -DSPEC_CPU_WIN32 |
| 464.h264ref: | -DSPEC_CPU_NO_INTTYPES -DWIN32 |
